Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 07:42 AM
05 1686_05 1685_10122018_020820.mp4
- Date
- 10/12/2018
- W/O
- #
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00471
- PipeID
- P24973
- Time
- 12:42 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1008
- Sewer Name
- 05 LOMITA TRUNK
- City
- LOMITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181012MDM_LOMITA_TRUNK
- Material
- CIP
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 05 1686
- Downstream MH
- 05 1685
- Dir. of Survey
- Downstream
- Length Surveyed
- 29.7 ft.
- Total Length
- 29.7 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

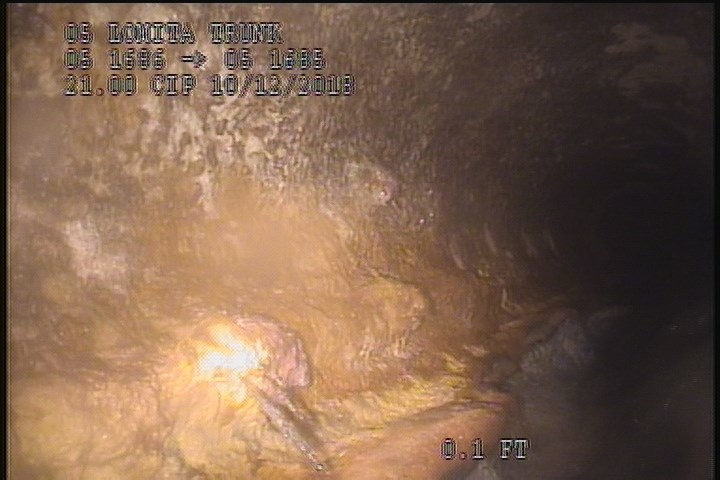

0.1 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% START

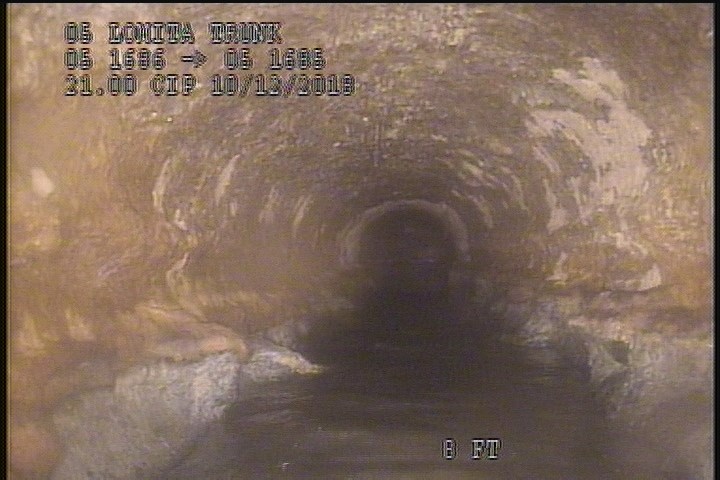

8 ft. - General Observation - 24" CIP

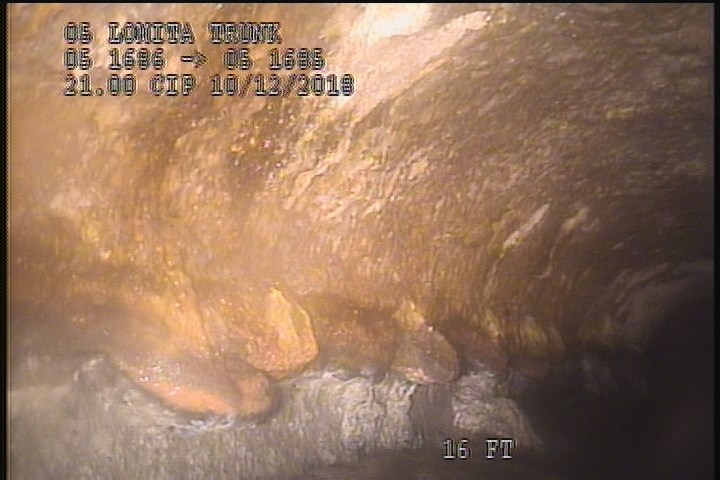

16 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: NO - 40% PIPE LOSS
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | Conn. @ Mh, 6 O' Clock. BULK HEAD |
| 0.1 | SCP | 40% START |
| 29.7 | AMH | 2:15AM |
| 16 | SCP | 40% PIPE LOSS |
| 0 | MWM | — |
| 29.3 | MGO | Conn. @ Mh, 9 O' Clock. BULK HEAD |
| 8 | MGO | 24" CIP |
| 0 | AMH | 2:00AM |
| 0 | MWL | — |
| 29.3 | SCP | 40% LOSS |
Properties (3)
- additional_info
- N/W SIDE
- customer
- LACSD
- datetime
- 2018-10-12T00:42:44-07:00
