Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 07:03 PM
29 0742_29 0741_10122018_120533.mp4
- Date
- 10/12/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00527
- PipeID
- P24248
- Time
- 12:03 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7827
- Sewer Name
- 29 ALAMITOS PUMPING PLANT TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20181011DF_ALAMITOS_P_P_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0742
- Downstream MH
- 29 0741
- Dir. of Survey
- Downstream
- Length Surveyed
- 75.1 ft.
- Total Length
- 75.1 ft.
- Structural Index
- 3
- Structural Quick
- 3322
- Structural Rating
- 13
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

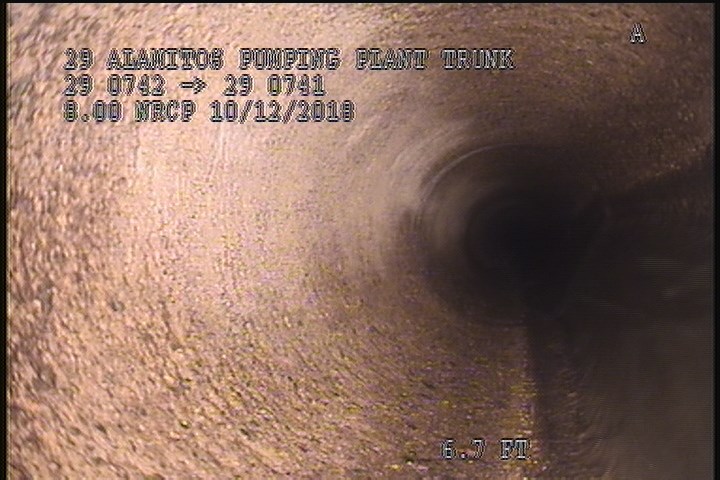

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

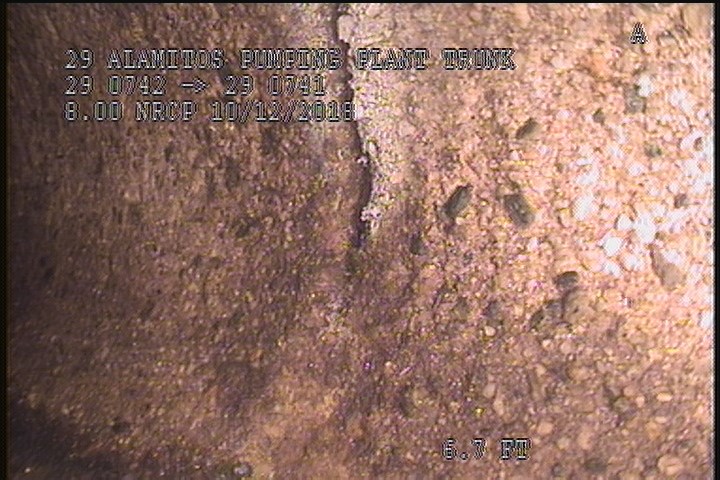

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

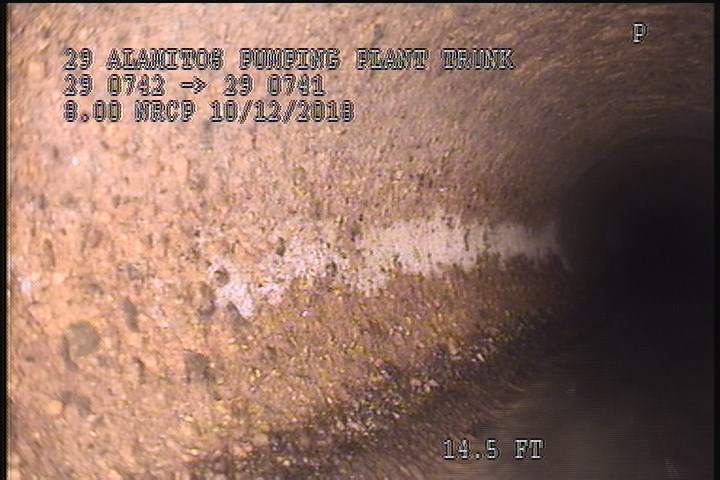

14.5 ft. - General Photograph

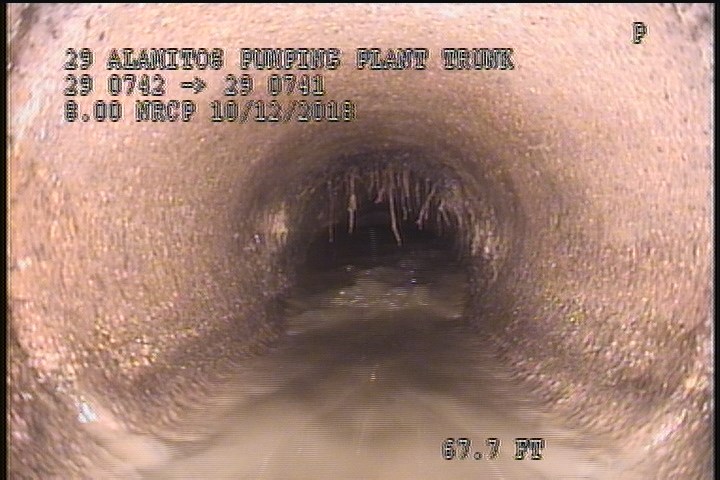

70.4 ft. - General Photograph

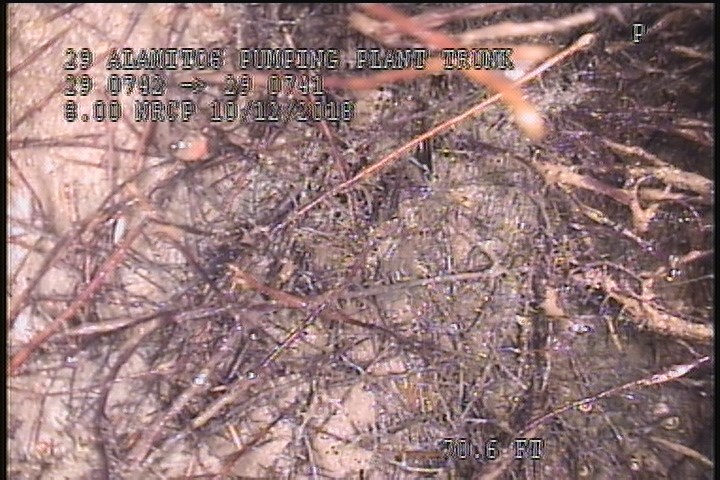

70.4 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 15%
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 74.2 | MWLS | — |
| 70.4 | MGP | — |
| 71 | MWLS | — |
| 14.5 | MGP | — |
| 2 | CM | — |
| 2 | SSS | — |
| 70.4 | RFJ | 15% |
| 74.1 | SSS | — |
| 75.1 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 2 | SAP | — |
| 74.1 | SAV | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 75.1 | MSA | HIGH WATER |
| 74.1 | CM | — |
| 74.1 | SAP | — |
| 0 | AMH | 12:04 PM |
| 2 | SAV | — |
Properties (3)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-10-12T12:03:26-07:00
