Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2018, 08:09 AM

  • B 0204_B 0203 _06042018_012833.mp4

Date
04/06/2018
W/O
690724
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00076
PipeID
P08701
Time
1:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5521
Sewer Name
B JOINT OUTFALL B - UNIT 1D RELIEF
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
15
Purpose
Routine Assessment
Project
WO_690724_TV02357_MAR2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
45 in.
Width
45 in.
Upstream MH
B 0204
Downstream MH
B 0203
Dir. of Survey
Downstream
Length Surveyed
716.6 ft.
Total Length
716.6 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole B 0204 to B 0203
MH: B 0204MH: B 0203downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 02040 ft. MWL - Water Level, 10 %of cross sectional area1.7 ft. MGO - General Observation - SERVICE CONNECTION AT 11 O' CLOCK AT MH39 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start209.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish209.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start317 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"322.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"713.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish716.6 ft. AMH - Downstream Manhole, Survey Ends - b 0203

Observation photos (2)

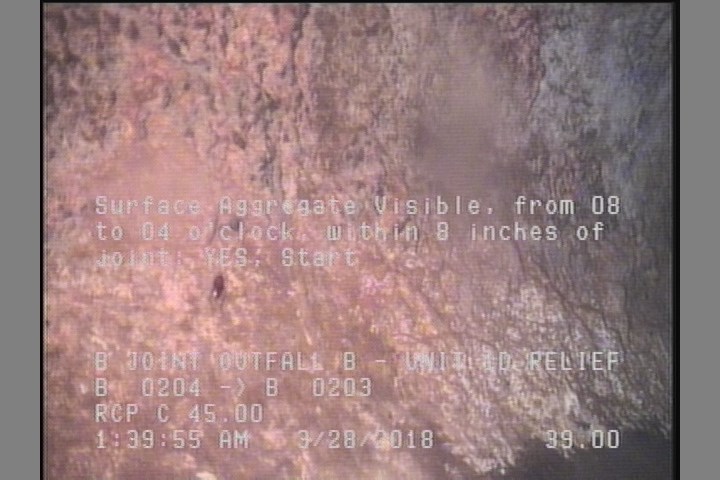

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    39 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

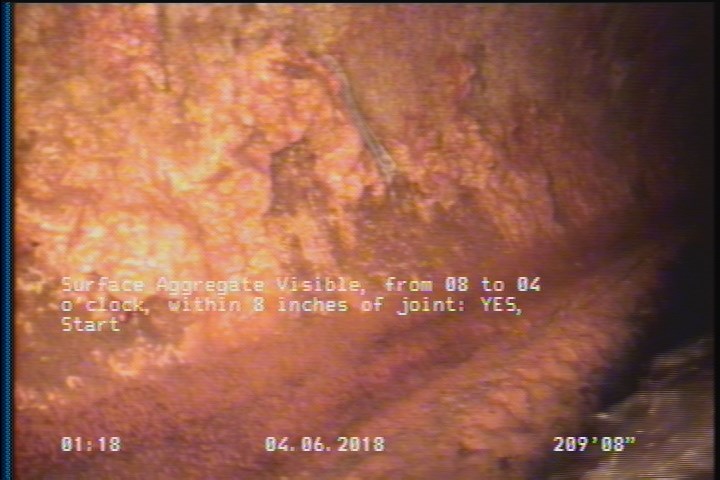

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    209.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P08701Work order 690724

Observations (11)

DistanceCodeObservation
317TFC—
0MWM—
39SAP—
713.5SAV—
716.6AMHb 0203
209.6SAV—
209.5SAP—
0AMHB 0204
322.7TF—
1.7MGOSERVICE CONNECTION AT 11 O' CLOCK AT MH
0MWL—

Properties (4)

additional_info
SC358728
custom_field_two
3
customer
LACSD
datetime
2018-04-06T01:09:57-07:00
