Wastewater/Activity/PacpInspection/1.0Apr 18, 2018, 03:06 PM
C 0592_C 0591_4182018_083628.mp4
- Date
- 04/18/2018
- W/O
- 0695641
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00929
- PipeID
- P22828
- Time
- 8:06 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0827
- Sewer Name
- C JOINT OUTFALL C - UNIT 3E REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- 20180418MI_JOINT_OUTFALL_C_UNIT_3E_REPLACEMENT
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 31.5 in.
- Upstream MH
- C 0591
- Downstream MH
- C 0592
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4200
- O&M Rating
- 8
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

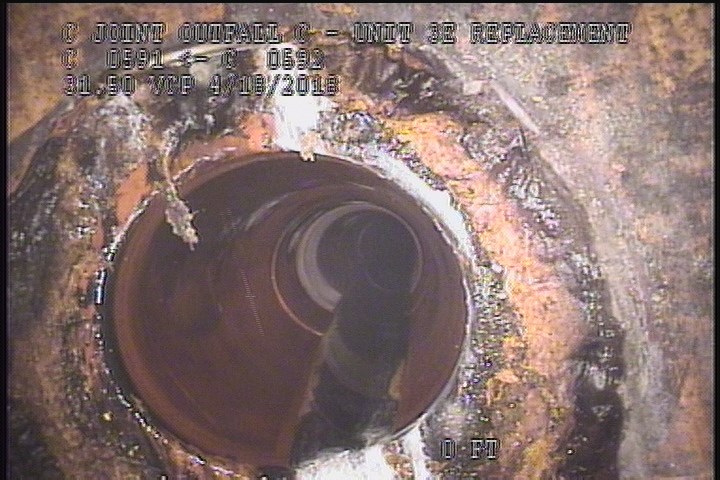

0 ft. - General Observation - AIRLINE AT MH AT 12 OCLOCK

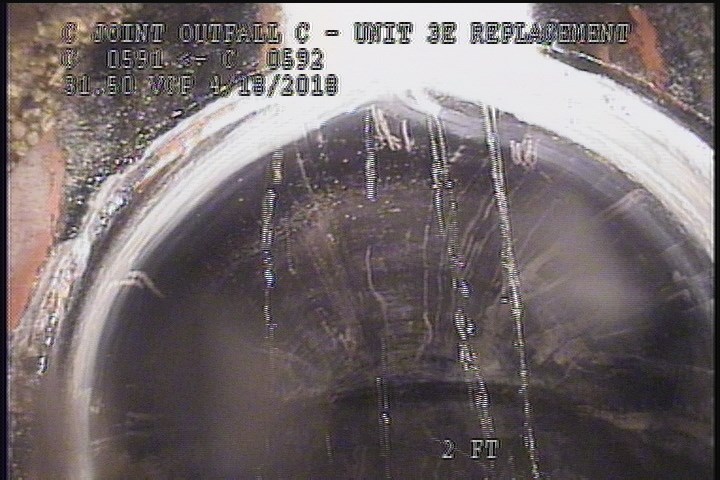

2 ft. - General Observation - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON

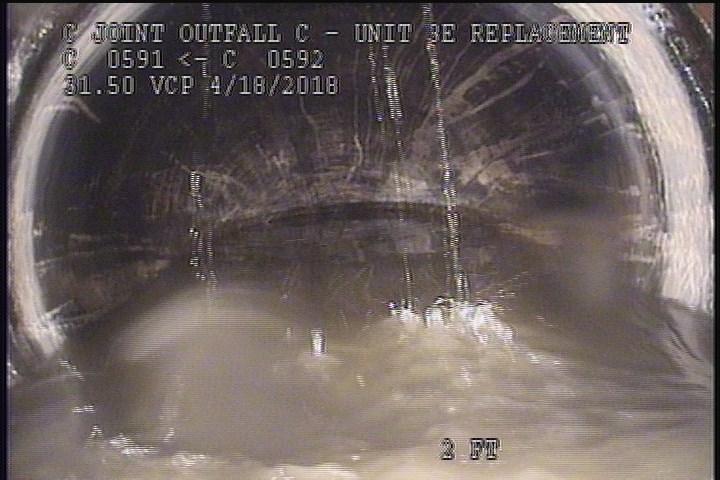

2 ft. - Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON

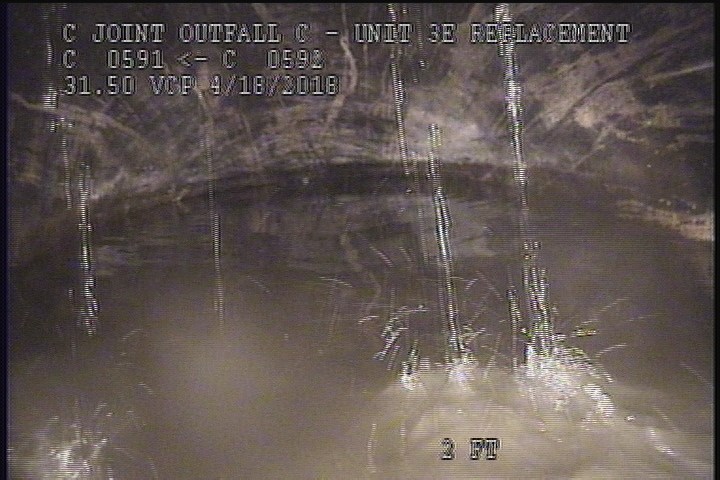

2 ft. - General Photograph - D/S SIPHON
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
| 0 | MWL | — |
| 2 | MSA | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
| 0 | MGO | AIRLINE AT MH AT 12 OCLOCK |
| 0 | LD | — |
| 0 | MWM | — |
| 0 | AMH | 08:45 AM |
| 2 | MGP | D/S SIPHON |
| 0 | MGO | ACTIVE CONNECTION AT MH, 12 OCLOCK |
Properties (6)
- additional_info
- VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-18T08:06:29-07:00
- lining
- CIPP
- year_laid
- 20001223
