Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 13, 2018, 09:58 AM

  • 08 0028_08 0557 _13042018_030707.mp4

Date
04/13/2018
W/O
694025
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00030
Time
2:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5529
Sewer Name
08 MAIN STREET TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Routine Assessment
Project
WO_694025_TV08116_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
08 0028
Downstream MH
08 0557
Dir. of Survey
Downstream
Length Surveyed
176.7 ft.
Total Length
176.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2D00
O&M Rating
50
Overall Index
2
Overall Quick
—
Overall Rating
50
Pipe schematic from manhole 08 0028 to 08 0557
MH: 08 0028MH: 08 0557downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 00280 ft. MWL - Water Level, 10 %of cross sectional area4.6 ft. IW - Infiltration Weeper, from 09 to 03 o'clock, within 8 inches of joint: YES, Start4.6 ft. IS - Infiltration Stain, from 08 to 04 o'clock, within 8 inches of joint: YES, Start124.7 ft. IS - Infiltration Stain, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish124.7 ft. IW - Infiltration Weeper, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish124.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"172.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES - SLUDGE175 ft. MGO - General Observation - WATER INFILTRATION @ THE JOINTS THROUGHOUT THE REACH176.7 ft. AMH - Downstream Manhole, Survey Ends - 08 0557

Observation photos (2)

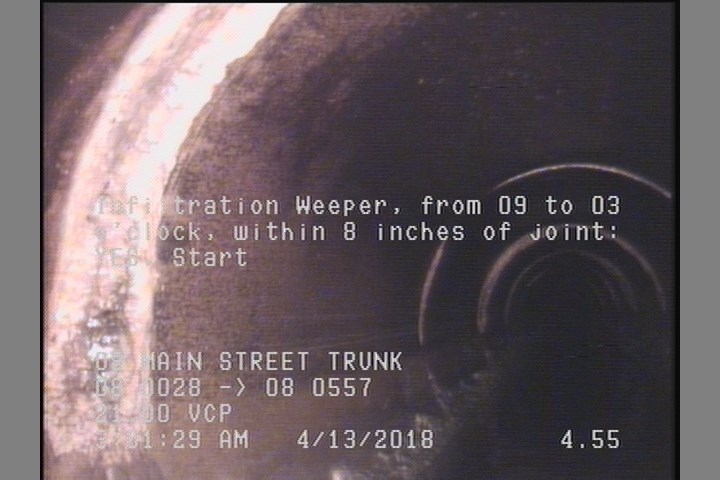

  • Infiltration Weeper, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.6 ft. - Infiltration Weeper, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

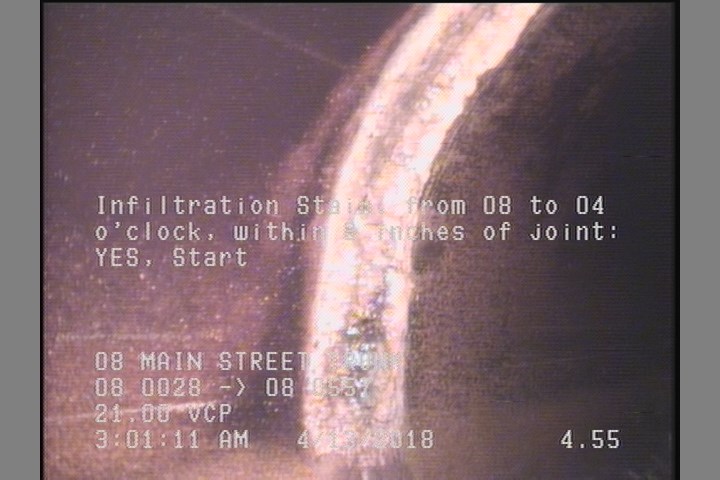

  • Infiltration Stain, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.6 ft. - Infiltration Stain, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00030Work order 694025

Observations (11)

DistanceCodeObservation
172.7DSZSLUDGE
175MGOWATER INFILTRATION @ THE JOINTS THROUGHOUT THE REACH
0MWM—
0AMH08 0028
4.6IW—
176.7AMH08 0557
0MWL—
4.6IS—
124.7IS—
124.7IW—
124.7TFC—

Properties (4)

additional_info
SC358736
custom_field_two
3
customer
LACSD
datetime
2018-04-13T02:58:46-07:00
