Wastewater/Activity/PacpInspection/1.0Aug 8, 2016, 11:59 AM
02 0381_02 0380A _20160808_060624.mp4
- Date
- 08/08/2016
- W/O
- 252431
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00250
- PipeID
- P02699
- Time
- 4:59 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3677
- Sewer Name
- 02 DOWNEY AVENUE EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_252431_TV02049_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0381
- Downstream MH
- 02 0380A
- Dir. of Survey
- Downstream
- Length Surveyed
- 133.7 ft.
- Total Length
- 133.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)
0.1 ft. - General Observation - CONNECTION AT THE MH 9 O'CLOCK ACTIVE

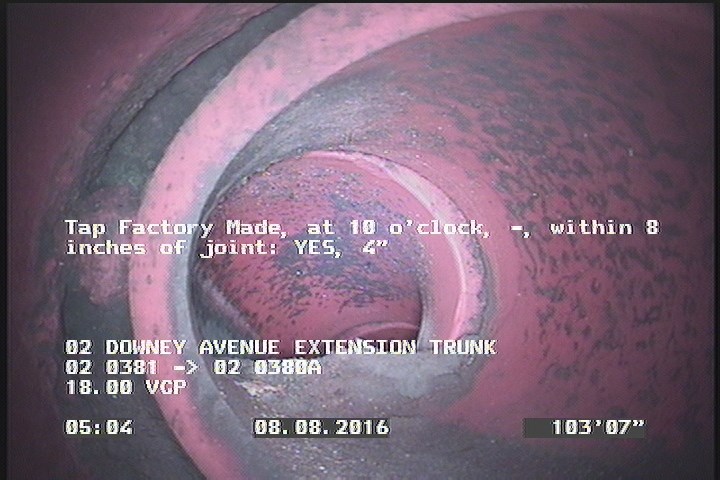

103.6 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 130.4 | DAGS | — |
| 111.1 | TF | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 133.7 | AMH | 02 0380A |
| 0 | AMH | 02 0381 |
| 103.6 | TF | — |
| 0.1 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 133.7 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 4.1 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 14.8 | TFC | — |
Properties (4)
- additional_info
- SC306007
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-08T04:59:00-07:00
