Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 10:18 AM
08 0303_08 0302_09172018_032043.mp4
- Date
- 09/17/2018
- W/O
- 723785
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00013
- PipeID
- P00349
- Time
- 3:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6028
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_723785_TV08154_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0303
- Downstream MH
- 08 0302
- Dir. of Survey
- Downstream
- Length Surveyed
- 220.3 ft.
- Total Length
- 220.3 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 126
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 86
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 212
Observation photos (4)

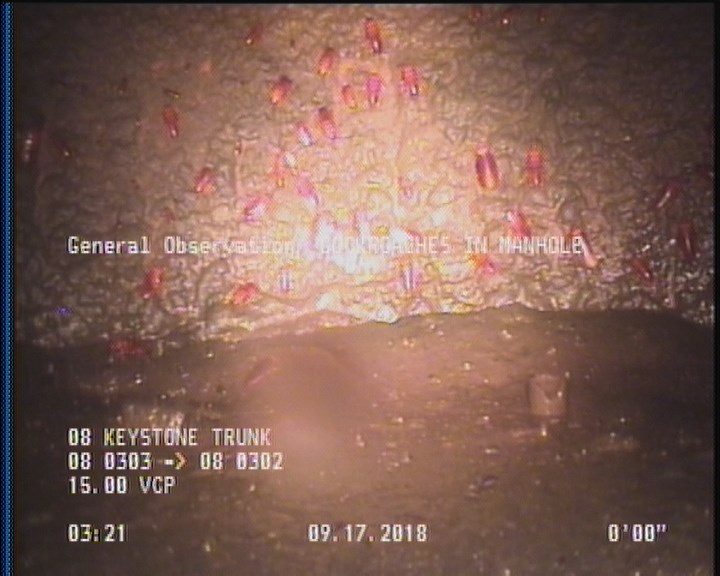

0 ft. - General Observation - COCKROACHES IN MANHOLE

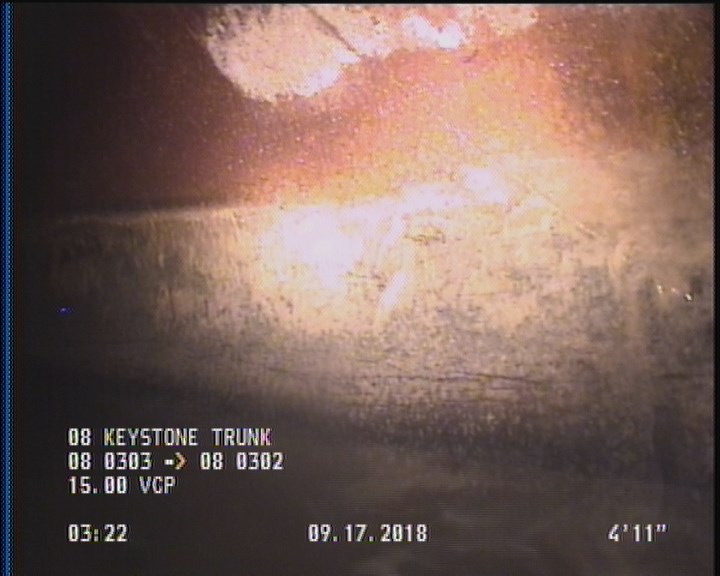

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

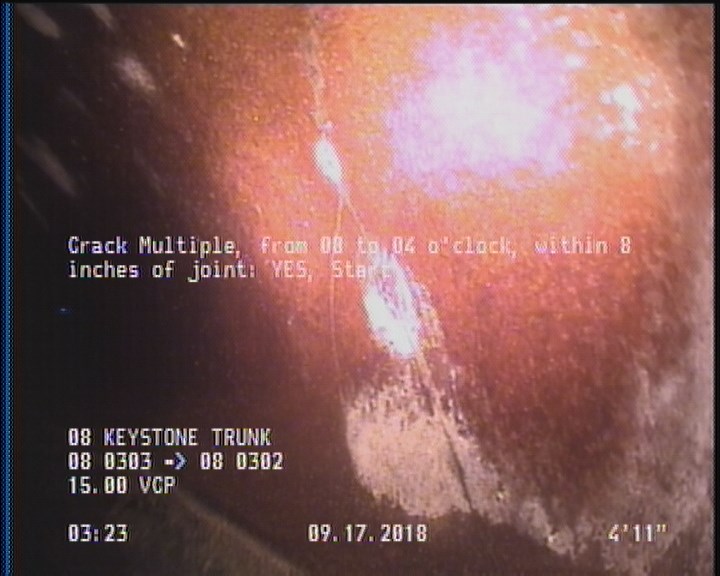

4.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

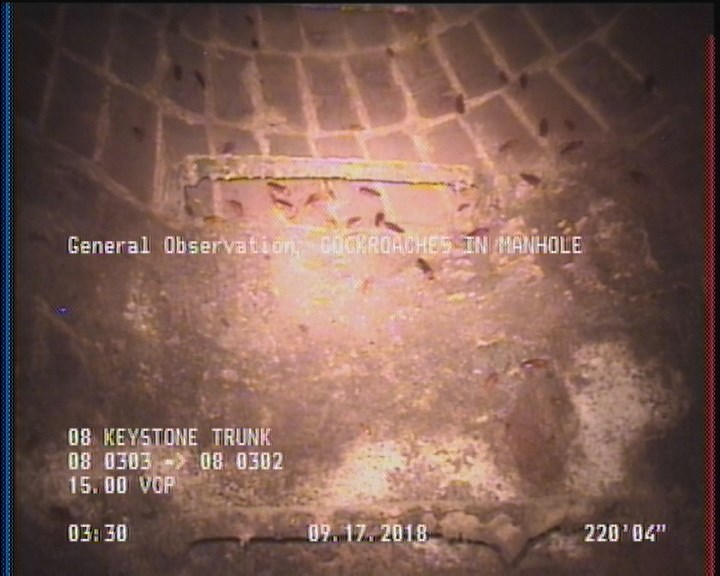

220.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 214.9 | CM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 220.3 | AMH | 08 0302 |
| 217.7 | DAGS | — |
| 64.3 | TF | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 220.3 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 4.9 | CM | — |
| 0 | AMH | 08 0303 |
| 169.9 | TFA | — |
| 134.3 | TF | — |
| 207.5 | TF | — |
| 39.2 | TFC | — |
Properties (4)
- additional_info
- SC364792
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-17T03:18:42-07:00
