Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 07:25 AM
08 0700_08 0699_09142018_002503.mp4
- Date
- 09/14/2018
- W/O
- 724193
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00008
- PipeID
- P25801
- Time
- 12:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6025
- Sewer Name
- 08 GRACE STREET RELIEF TRUNK
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_724193_TV08172_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0699
- Downstream MH
- 08 0700
- Dir. of Survey
- Upstream
- Length Surveyed
- 232.6 ft.
- Total Length
- 232.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 92
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 92
Observation photos (2)

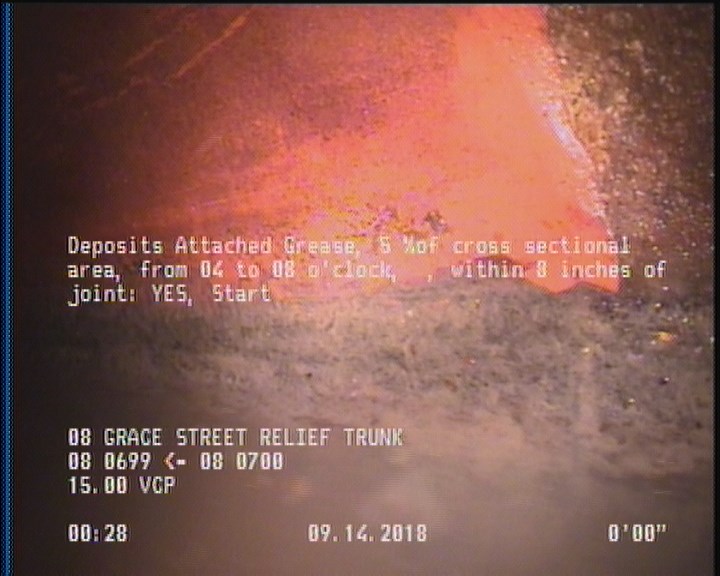

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

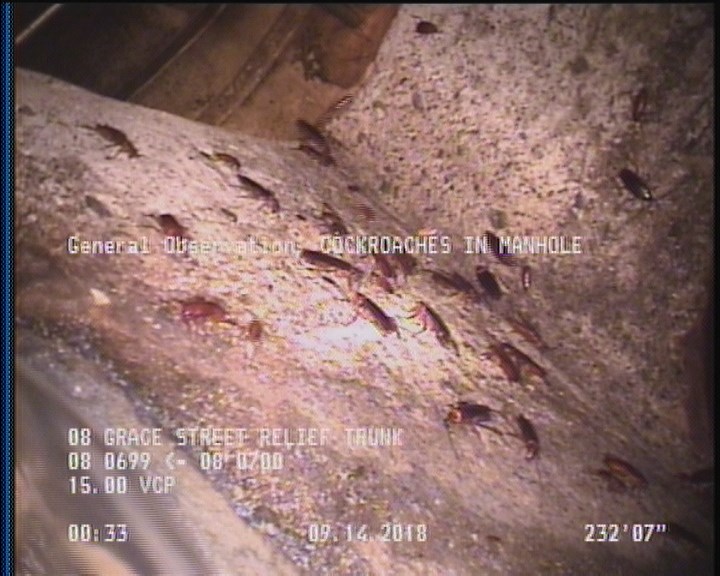

232.6 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 232.6 | AMH | 08 0700 |
| 2 | DAGS | — |
| 0 | AMH | 08 0699 |
| 232.6 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 232.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 230.6 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC364789
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-09-14T00:25:08-07:00
- year_laid
- 39337
