Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 20, 2018, 09:14 AM

  • 0_H 0490_09202018_021452.mp4

Date
09/20/2018
W/O
724189
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00182
PipeID
P20461
Time
2:14 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6036
Sewer Name
H JOINT OUTFALL H - UNIT 7A
City
AVACADO HEIGHTS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
WO_724189_TV15224_SEP2018
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
0 in.
Upstream MH
H 0490
Downstream MH
0
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole H 0490 to 0
MH: H 0490MH: 0upstream0 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES0 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES0 ft. MSA - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.2 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. AMH - Downstream Manhole, Survey Begins - H 0490

Observation photos (3)

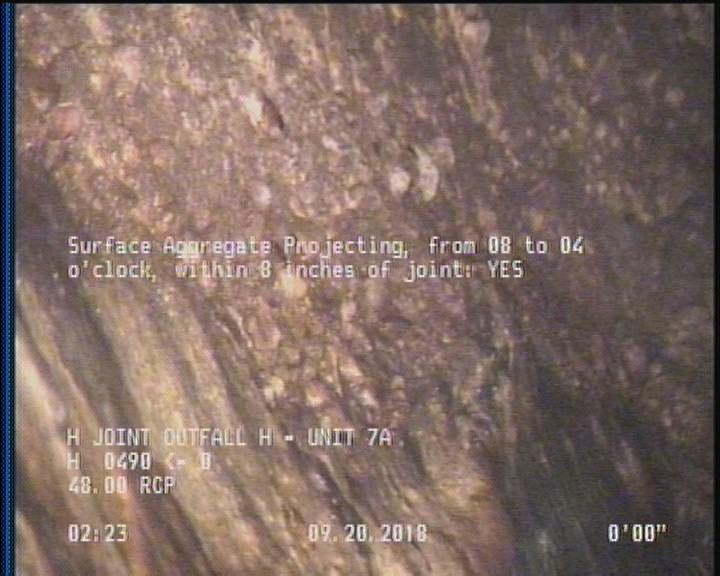

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

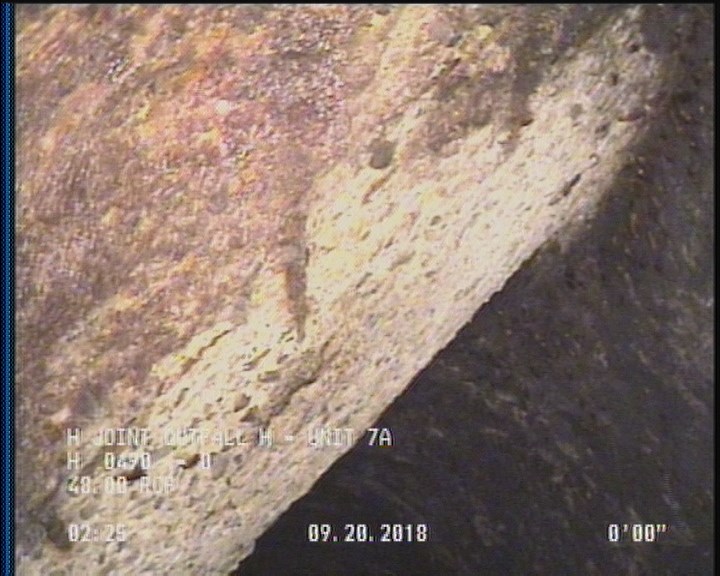

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

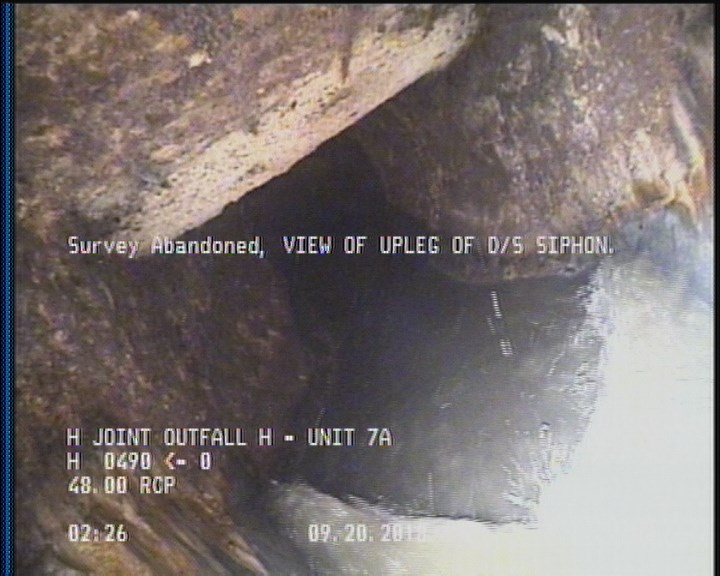

  • Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

    2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

All inspections of P20461Work order 724189

Observations (7)

DistanceCodeObservation
2SAP—
0MWL—
0MGOCOCKROACHES IN MANHOLE
0MWM—
2SRV—
0AMHH 0490
2MSAVIEW OF UPLEG OF D/S SIPHON.

Properties (4)

additional_info
SC364800
custom_field_two
2
customer
LACSD
datetime
2018-09-20T02:14:31-07:00
