Wastewater/Activity/PacpInspection/1.0Sep 26, 2018, 04:48 AM
02 2031_02 2030_09252018_234802.mp4
- Date
- 09/25/2018
- W/O
- 718052
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00239
- PipeID
- P04385
- Time
- 9:48 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6042
- Sewer Name
- 02 BELVEDERE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_718052_TV02371_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 2031
- Downstream MH
- 02 2030
- Dir. of Survey
- Downstream
- Length Surveyed
- 340.2 ft.
- Total Length
- 340.2 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 54
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 188
Observation photos (3)

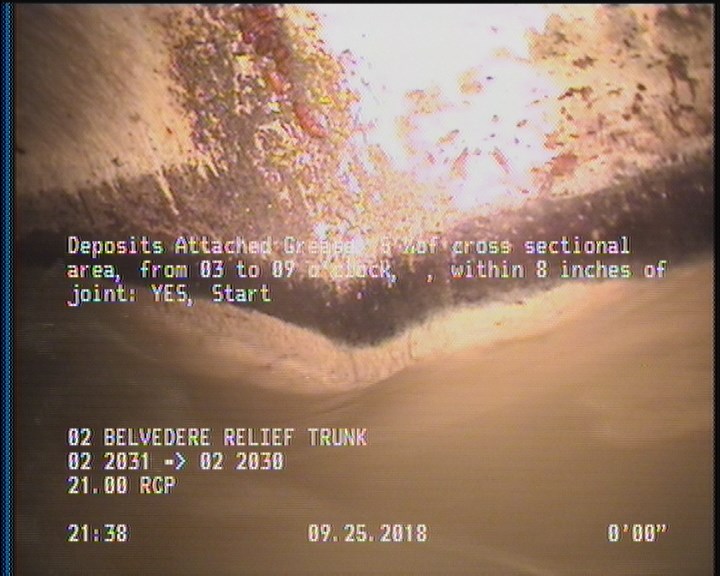

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

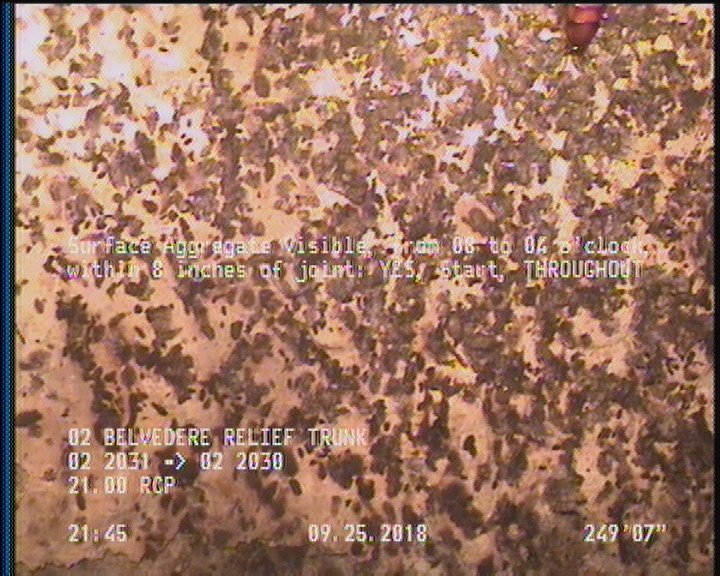

249.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THROUGHOUT

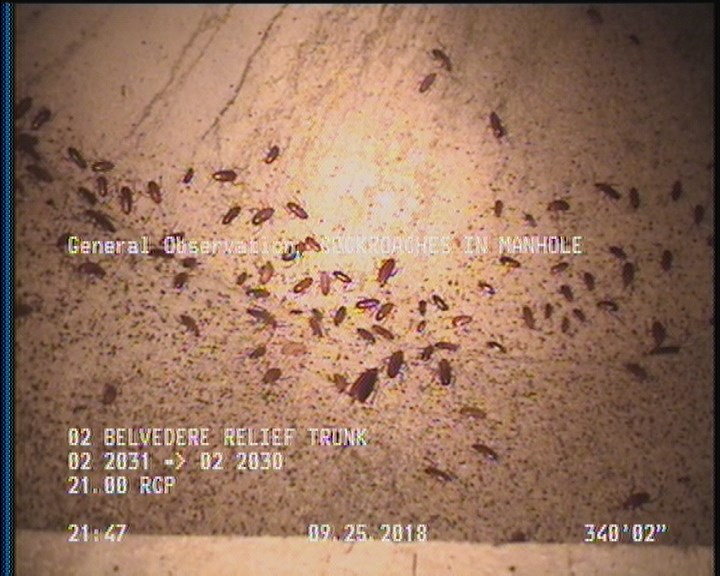

340.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 338.1 | SAV | — |
| 0 | MWM | — |
| 340.2 | AMH | 02 2030 |
| 2 | DAGS | — |
| 2 | MGO | MAG COATING 95% THROUGHOUT |
| 340.2 | MGO | COCKROACHES IN MANHOLE |
| 338.1 | DAGS | — |
| 249.6 | SAV | THROUGHOUT |
| 0 | MWL | — |
| 0 | AMH | 02 2031 |
Properties (5)
- additional_info
- SC365105
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-25T21:48:41-07:00
- year_laid
- 27593
