Wastewater/Activity/PacpInspection/1.0Sep 28, 2018, 07:33 AM
H 1205_H 1204 _09282018_003313.mp4
- Date
- 09/28/2018
- W/O
- 729645
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01182
- PipeID
- P17631
- Time
- 12:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6049
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K RELIEF
- City
- IRWINDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729645_TV15223_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- H 1205
- Downstream MH
- H 1204
- Dir. of Survey
- Downstream
- Length Surveyed
- 103.4 ft.
- Total Length
- 103.4 ft.
- Structural Index
- 2
- Structural Quick
- 3C2C
- Structural Rating
- 94
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 44
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 138
Observation photos (5)

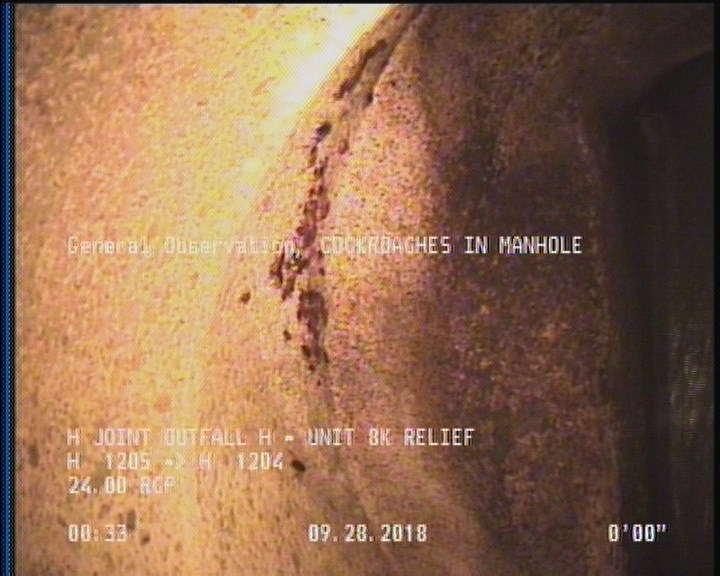

0 ft. - General Observation - COCKROACHES IN MANHOLE

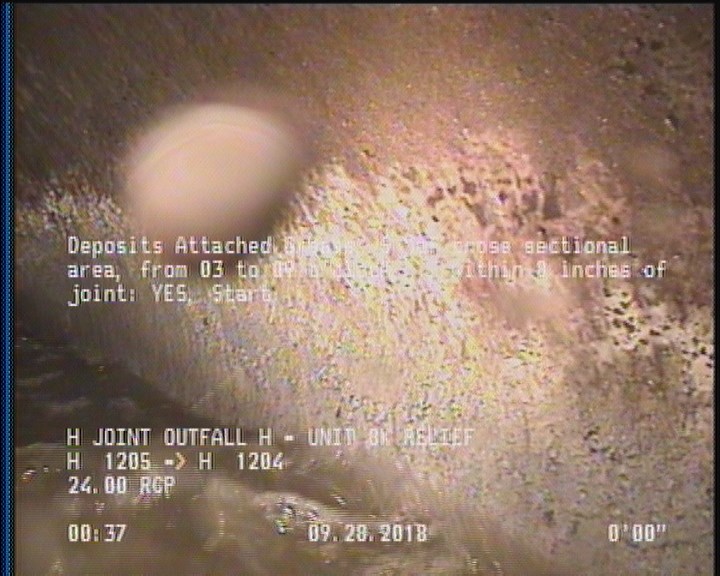

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

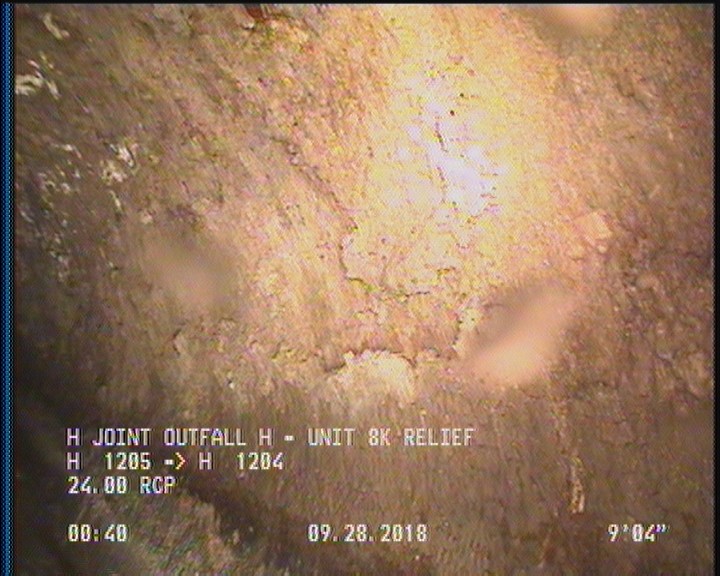

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

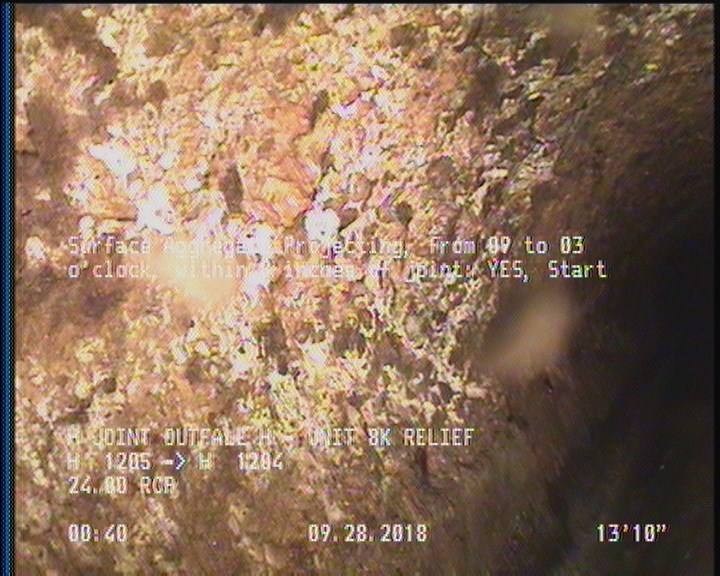

13.8 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

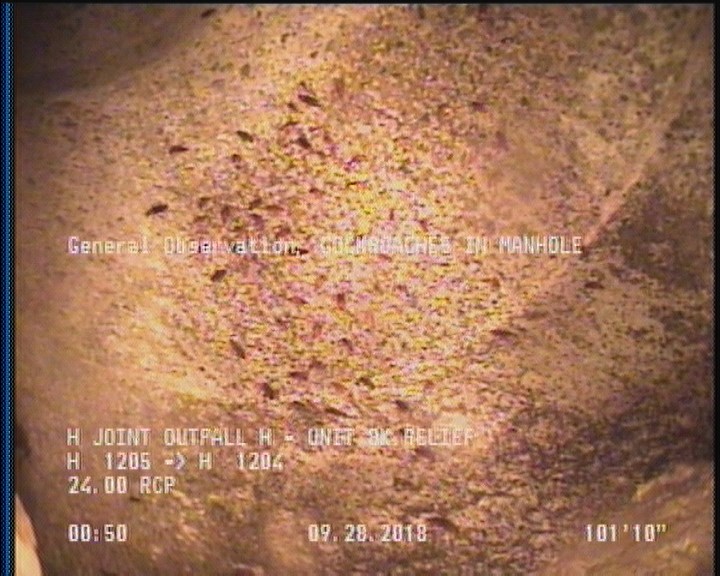

101.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 1205 |
| 101.9 | SAP | — |
| 101.9 | DAGS | — |
| 103.4 | AMH | H 1204 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 101.9 | SSS | — |
| 101.9 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 13.8 | SAP | — |
| 2 | SSS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC365112
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-28T00:33:11-07:00
- year_laid
- 30658
