Wastewater/Activity/PacpInspection/1.0Apr 12, 2018, 05:15 AM
08 0069_08 0068 _11042018_222052.mp4
- Date
- 04/11/2018
- W/O
- 694025
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00016
- PipeID
- P00071
- Time
- 10:15 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5528
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_694025_TV08116_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0069
- Downstream MH
- 08 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 58.7 ft.
- Total Length
- 58.7 ft.
- Structural Index
- 3
- Structural Quick
- 3A21
- Structural Rating
- 38
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (3)

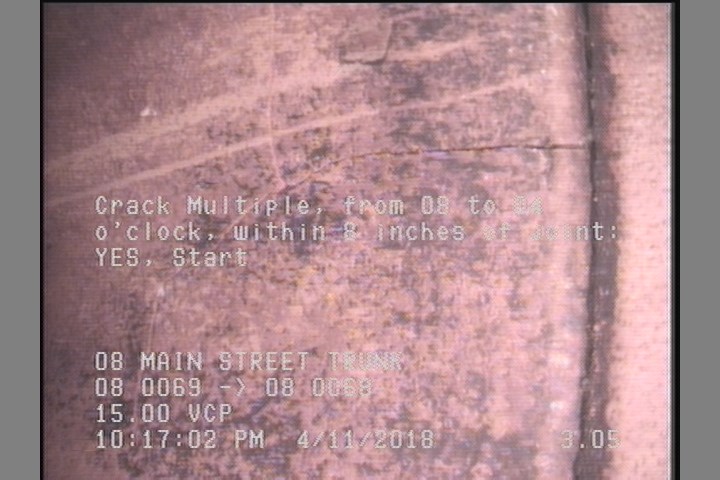

3.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

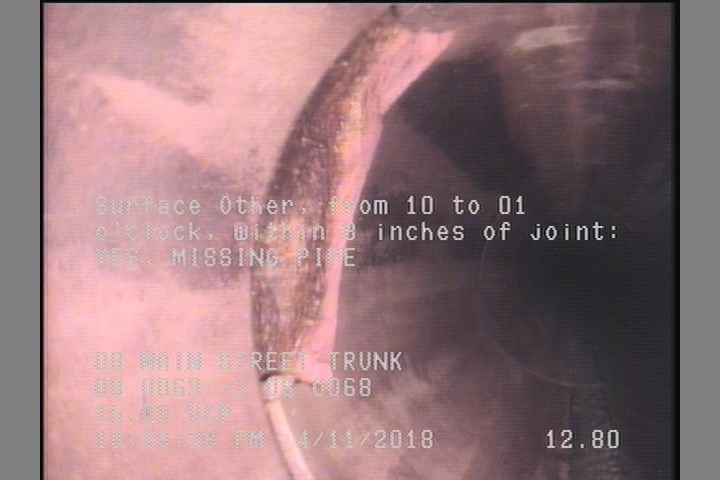

12.8 ft. - Surface Other, from 10 to 01 o'clock, within 8 inches of joint: YES - MISSING PIPE

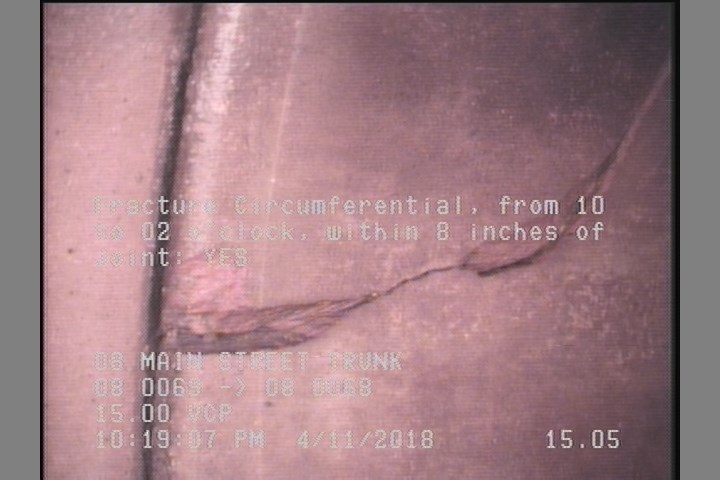

15.1 ft. - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 08 0069 |
| 15 | B | — |
| 3.1 | CM | — |
| 58.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 12.8 | SZ | MISSING PIPE |
| 58.7 | CM | — |
| 12 | RPZD | HOLE VISIBLE IN THE REPAIR, FROM 11 TO 01 O'CLOCK |
| 58.7 | AMH | 08 0068 |
| 15.1 | FC | — |
Properties (4)
- additional_info
- SC358735
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-11T22:15:00-07:00
