Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2017, 05:22 AM

  • F 0071_F 0070 _09132017_222545.mp4

Date
09/13/2017
W/O
651629
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00035
PipeID
P10156
Time
10:22 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4971
Sewer Name
F JOINT OUTFALL F - UNIT 3A
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Resurvey For Any Reason
Project
WO_651629_TV02199_AUG2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Width
60 in.
Upstream MH
F 0071
Downstream MH
F 0070
Dir. of Survey
Downstream
Length Surveyed
575 ft.
Total Length
575 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole F 0071 to F 0070
MH: F 0071MH: F 0070downstream0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 00710.1 ft. MWM - Water Mark, 55 %of cross sectional area5.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start5.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start5.9 ft. MGO - General Observation - MAG COATING162.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"330.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"574.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish574.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish575 ft. AMH - Downstream Manhole, Survey Ends - F 0070

Observation photos (2)

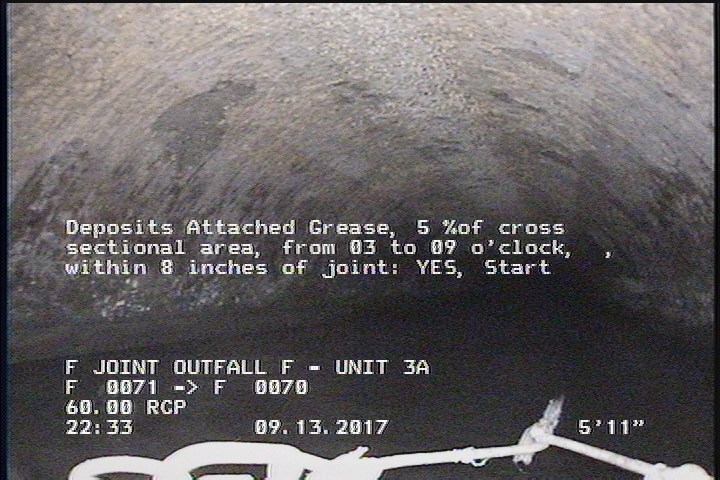

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

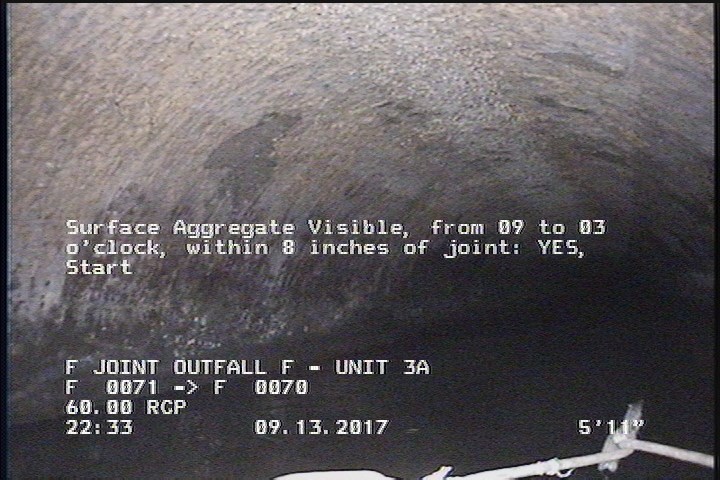

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P10156Work order 651629

Observations (11)

DistanceCodeObservation
574.8DAGS—
5.9DAGS—
330.8TBA—
575AMHF 0070
0MWL—
574.8SAV—
0AMHF 0071
0.1MWM—
162.2TBA—
5.9SAV—
5.9MGOMAG COATING

Properties (4)

additional_info
SC345963
custom_field_two
3
customer
LACSD
datetime
2017-09-13T22:22:31-07:00
