Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2018, 09:55 AM

  • 02 0072A_02 0072_29082018_025722.mp4

Date
08/29/2018
W/O
723875
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00293
PipeID
P03110
Time
2:55 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5989
Sewer Name
02 NORWALK EXTENSION TRUNK
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37A
Purpose
Routine Assessment
Project
WO_723875_TV02246_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0072A
Downstream MH
02 0072
Dir. of Survey
Downstream
Length Surveyed
354 ft.
Total Length
354 ft.
Structural Index
4
Structural Quick
4M3L
Structural Rating
478
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
478
Pipe schematic from manhole 02 0072A to 02 0072
MH: 02 0072AMH: 02 0072downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 0072A0 ft. MWL - Water Level, 10 %of cross sectional area3.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start40.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"80.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"137 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"193.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"237.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"285.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"341.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish342.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"354 ft. AMH - Downstream Manhole, Survey Ends - 02 0072354 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

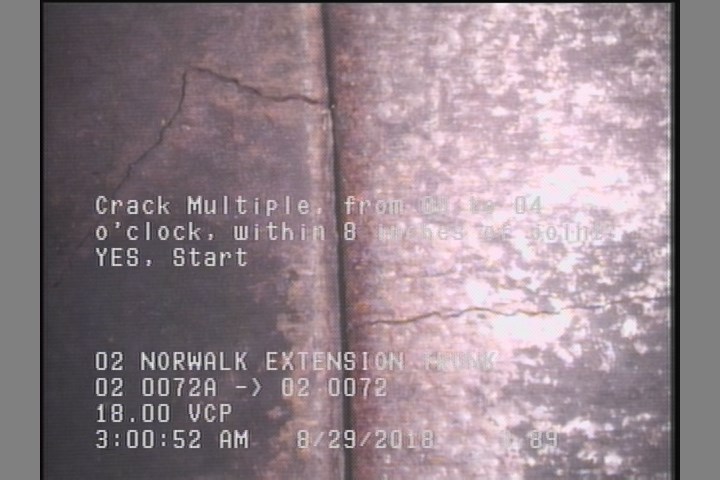

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

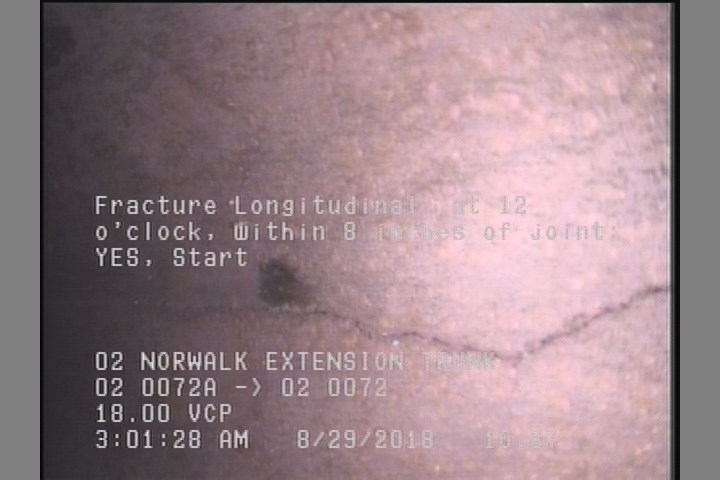

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    10.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P03110Work order 723875

Observations (16)

DistanceCodeObservation
40.9TFC—
354AMH02 0072
193.7TF—
3.9FM—
0MGOCONNECTION AT MH 9 O'CLOCK
285.7TFC—
342.5TF—
354FM—
10.9FL—
341.2FL—
0MWM—
237.7TFC—
0AMH02 0072A
0MWL—
137TFC—
80.7TF—

Properties (4)

additional_info
SC364803
custom_field_two
2
customer
LACSD
datetime
2018-08-29T02:55:15-07:00
