Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 04:00 PM
30 0044_30 0043_1092018_091152.mp4
- Date
- 10/09/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00878
- PipeID
- P17747
- Time
- 9:00 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1001
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- HERMOSA BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 04
- Purpose
- Maintenance Related
- Project
- 20181009SHO_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 30 0044
- Downstream MH
- 30 0043
- Dir. of Survey
- Downstream
- Length Surveyed
- 116.8 ft.
- Total Length
- 116.8 ft.
- Structural Index
- 5
- Structural Quick
- 5200
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (5)

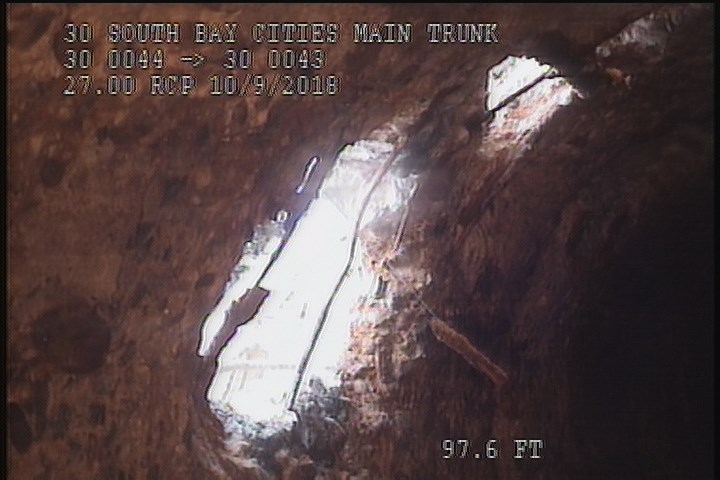

100.2 ft. - General Photograph - PHOTO OF THE FIRST HOLE

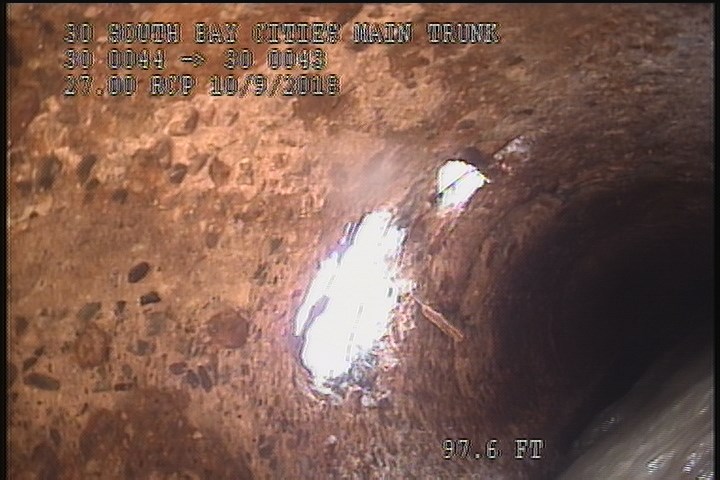

100.2 ft. - Surface Missing Wall, from 10 to 12 o'clock, within 8 inches of joint: YES - ONE LARGER HOLE, ONE SMALLER HOLE

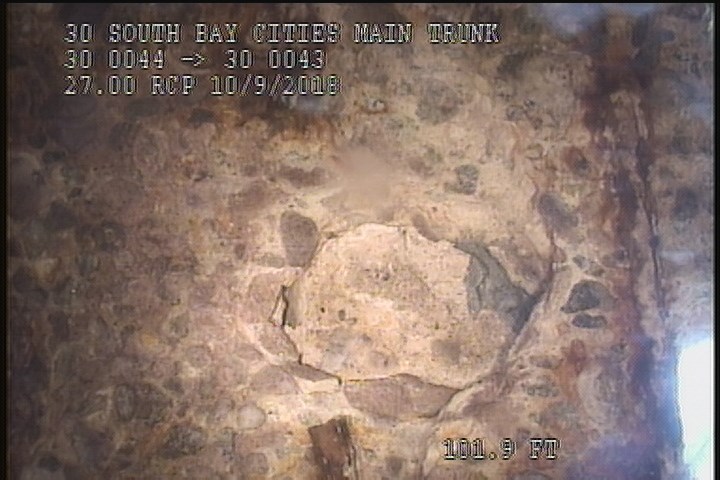

102.4 ft. - General Photograph - SMALL BROKEN SECTION

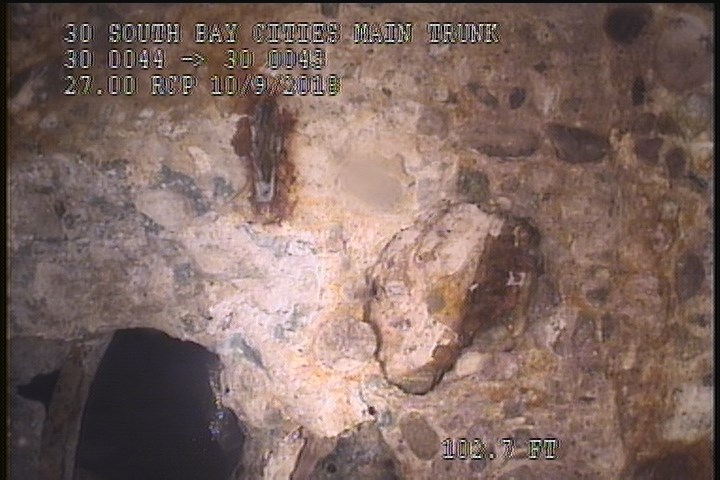

102.7 ft. - General Photograph - SMALL BROKEN SECTION

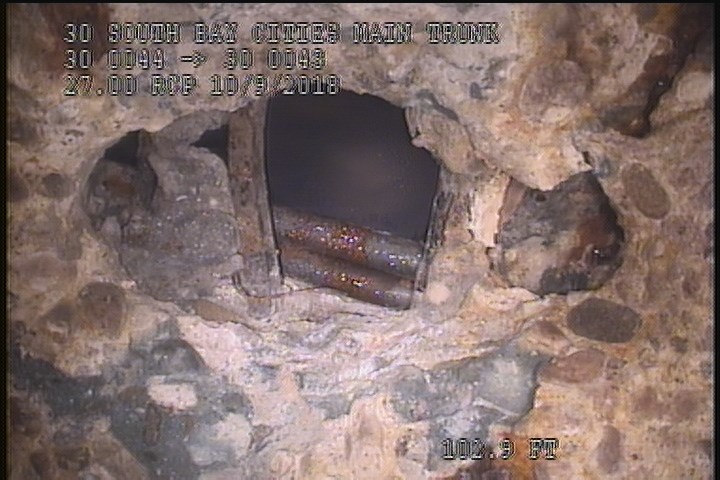

102.9 ft. - Surface Missing Wall, at 12 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 100.2 | MGP | PHOTO OF THE FIRST HOLE |
| 100.2 | SMW | ONE LARGER HOLE, ONE SMALLER HOLE |
| 0 | MWL | — |
| 102.9 | SMW | — |
| 0 | AMH | MH 44 |
| 102.4 | MGP | SMALL BROKEN SECTION |
| 116.8 | AMH | MH 43 |
| 0 | MWM | — |
| 102.7 | MGP | SMALL BROKEN SECTION |
Properties (5)
- additional_info
- LOOKING AT DAMAGE TO THE CROWN ABOUT 30FT U/S OF MH 43
- custom_field_three
- MISSING WALL/BROKEN PIPE
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2018-10-09T09:00:06-07:00
