Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 06:50 PM

  • 05 0965_05 0964_1092018_121246.mp4

Date
10/09/2018
W/O
0726630
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00481
PipeID
P06197
Time
11:50 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1002
Sewer Name
05 MANCHESTER AVENUE PUMP TRUNK
City
HAWTHORNE
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20181009SHO_MANCHESTER_AVENUE_PUMP_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 0965
Downstream MH
05 0964
Dir. of Survey
Downstream
Length Surveyed
321.1 ft.
Total Length
321.1 ft.
Structural Index
3
Structural Quick
5233
Structural Rating
25
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 05 0965 to 05 0964
MH: 05 0965MH: 05 0964downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - MH 096528.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"70.1 ft. B - Broken, from 07 to 09 o'clock, within 8 inches of joint: YES81.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"123.9 ft. B - Broken, from 02 to 05 o'clock, within 8 inches of joint: YES138.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO, 6ft - JOINT TO JOINT189.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 6270.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES296.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"300.1 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES303.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES312.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES315.2 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES321.1 ft. AMH - Downstream Manhole, Survey Ends - MH 0964321.1 ft. MGO - General Observation - ACTIVE CONNECTION @ 9 IN THE MH

Observation photos (3)

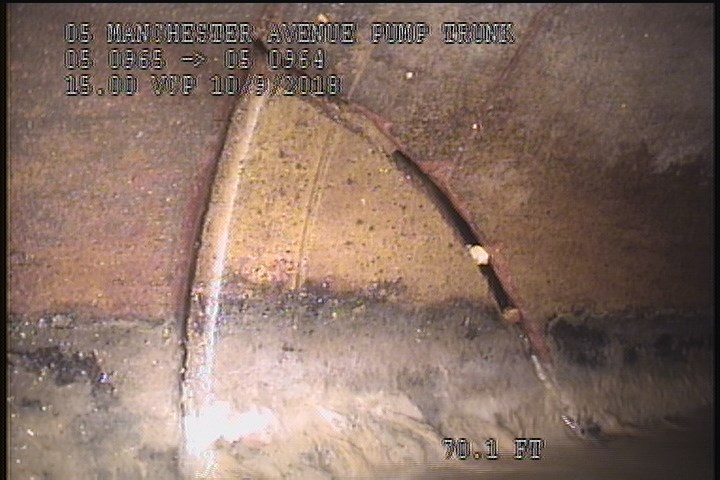

  • Broken, from 07 to 09 o'clock, within 8 inches of joint: YES

    70.1 ft. - Broken, from 07 to 09 o'clock, within 8 inches of joint: YES

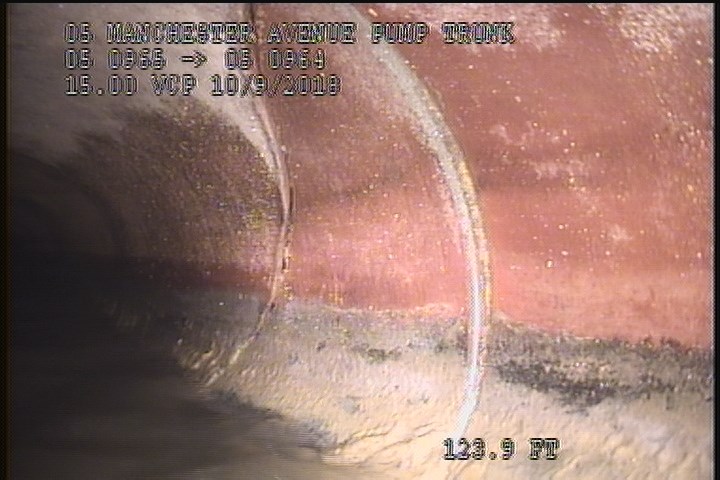

  • Broken, from 02 to 05 o'clock, within 8 inches of joint: YES

    123.9 ft. - Broken, from 02 to 05 o'clock, within 8 inches of joint: YES

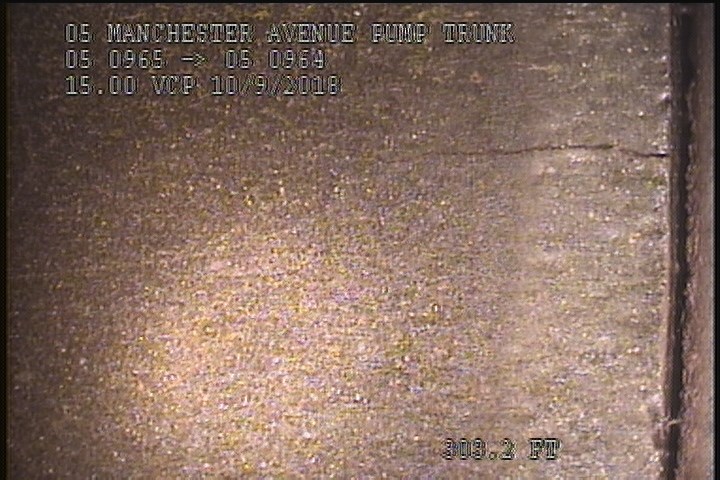

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    303.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P06197Work order 0726630

Observations (19)

DistanceCodeObservation
0MWL—
0MWM—
123.9B—
321.1AMHMH 0964
303.2CM—
138.3TFC—
81.7TFC—
28.2TFC—
296.4TFC—
189.5TFC—
70.1B—
270.7CL—
153.8CLJOINT TO JOINT
321.1MGOACTIVE CONNECTION @ 9 IN THE MH
315.2CM—
0AMHMH 0965
312.4CM—
241.3TF6
300.1CL—

Properties (4)

custom_field_three
BROKEN PIPE
custom_field_two
2
customer
LACSD
datetime
2018-10-09T11:50:07-07:00
