Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 10:09 AM

  • 02 1654_02 1653_1092018_053300.mp4

Date
10/09/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00289
PipeID
P18809
Time
3:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1000
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
EAST LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20181009MDM_MONTEREY_PARK_EXTENSION_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1654
Downstream MH
02 1653
Dir. of Survey
Downstream
Length Surveyed
165.5 ft.
Total Length
165.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 1654 to 02 1653
MH: 02 1654MH: 02 1653downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:35AM0 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active2 ft. MLC - Lining Change, Other (enter details in Field 39) - PIPE HAS A LINER8 ft. MGP - General Photograph - PIPE LINER22.1 ft. MGO - General Observation - PIPE LINER42.9 ft. MWM - Water Mark, 50 %of cross sectional area83.2 ft. MGO - General Observation - 15" NRCP & LINER95.5 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open165.5 ft. AMH - Downstream Manhole, Survey Ends - 5:45AM

Observation photos (4)

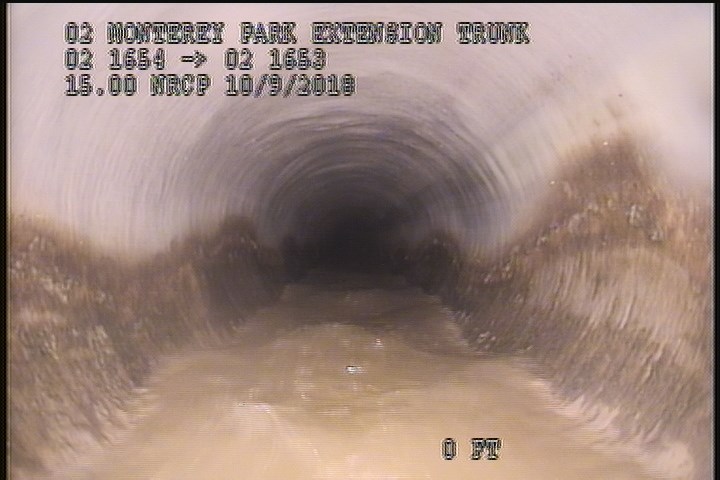

  • Lining Change, Other (enter details in Field 39) - PIPE HAS A LINER

    2 ft. - Lining Change, Other (enter details in Field 39) - PIPE HAS A LINER

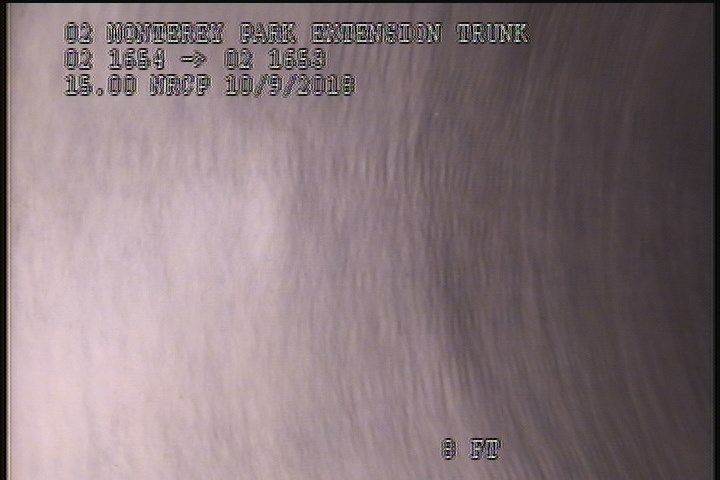

  • General Photograph - PIPE LINER

    8 ft. - General Photograph - PIPE LINER

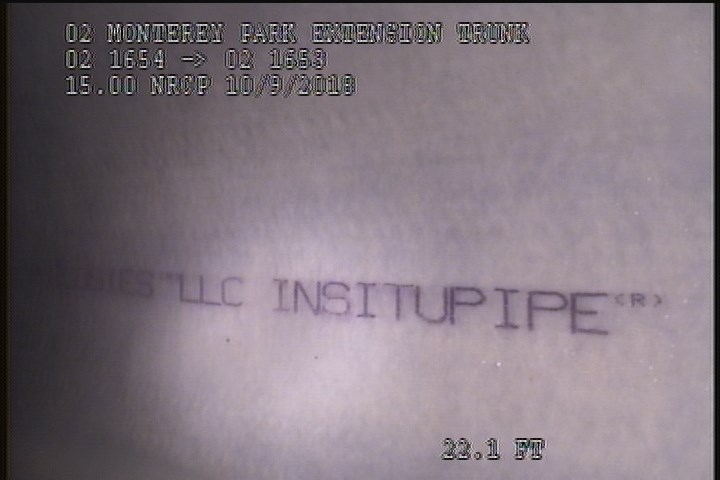

  • General Observation - PIPE LINER

    22.1 ft. - General Observation - PIPE LINER

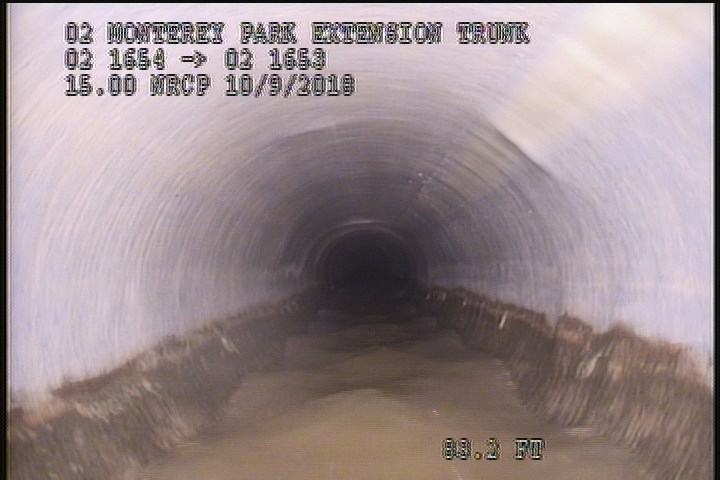

  • General Observation - 15" NRCP & LINER

    83.2 ft. - General Observation - 15" NRCP & LINER

All inspections of P18809Work order #

Observations (11)

DistanceCodeObservation
0MWM—
22.1MGOPIPE LINER
0MWL—
0AMH5:35AM
0MGOConn. @ Mh, 6 O' Clock. Active
95.5TBOpen
83.2MGO15" NRCP & LINER
2MLCPIPE HAS A LINER
165.5AMH5:45AM
8MGPPIPE LINER
42.9MWM—

Properties (4)

custom_field_three
LINER GOOG COND
custom_field_two
4
customer
LACSD
datetime
2018-10-09T03:09:29-07:00
