Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 10:06 AM

  • 02 1657_02 1656_1092018_034027.mp4

Date
10/09/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00289
PipeID
P18812
Time
3:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1000
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
EAST LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20181009MDM_MONTEREY_PARK_EXTENSION_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1657
Downstream MH
02 1656
Dir. of Survey
Downstream
Length Surveyed
236.8 ft.
Total Length
236.8 ft.
Structural Index
3
Structural Quick
4123
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 02 1657 to 02 1656
MH: 02 1657MH: 02 1656downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED9.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTACHED53.2 ft. MGO - General Observation - DEEP CORRISON 12:0098.8 ft. MGO - General Observation - 15" NRCP156.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open202.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open208.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTACHED229.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open236.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEEELING CONCRETE SEVERE AGG ATTACHED236.3 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG236.8 ft. AMH - Downstream Manhole, Survey Ends - 4:00AM

Observation photos (6)

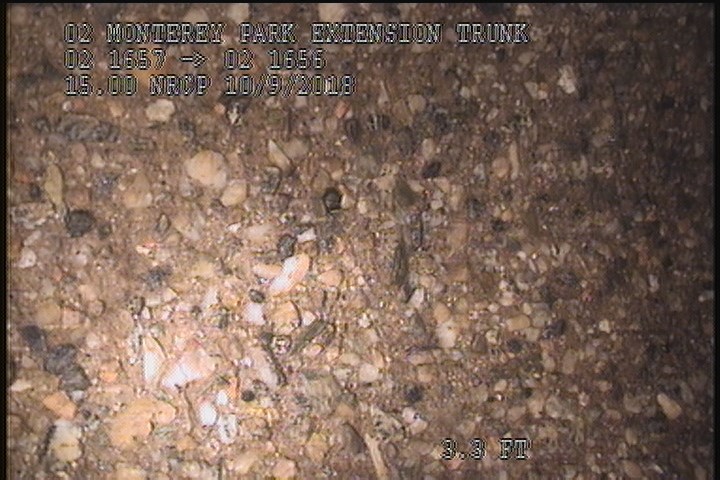

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

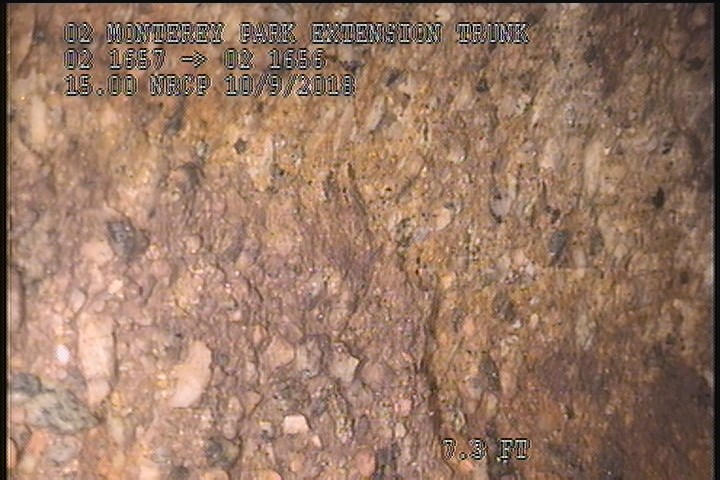

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

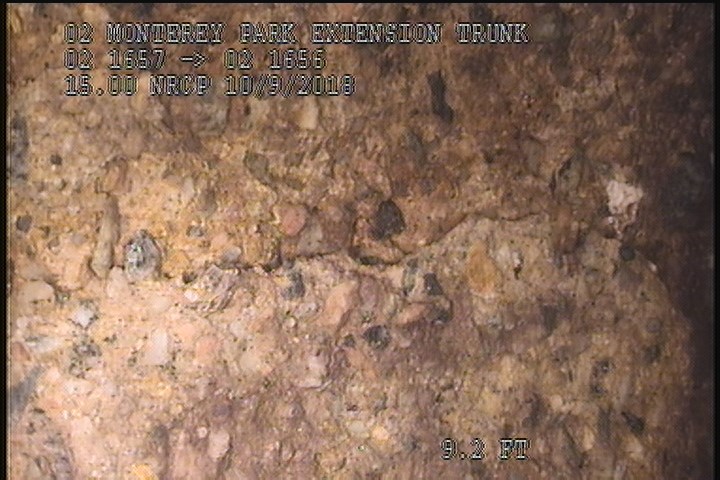

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTACHED

    9.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTACHED

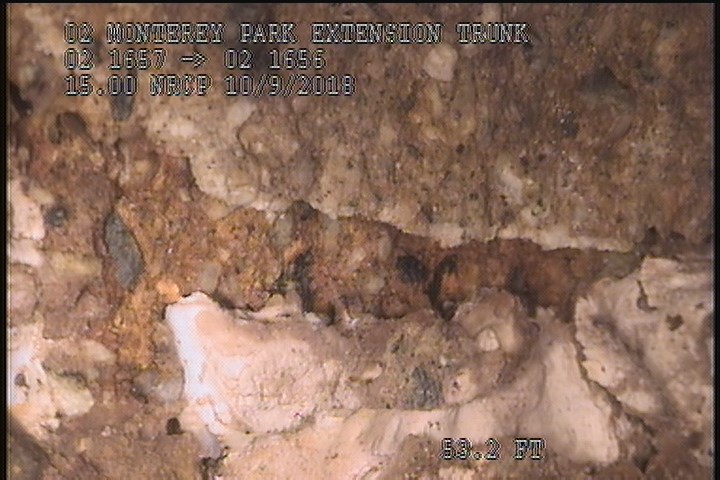

  • General Observation - DEEP CORRISON 12:00

    53.2 ft. - General Observation - DEEP CORRISON 12:00

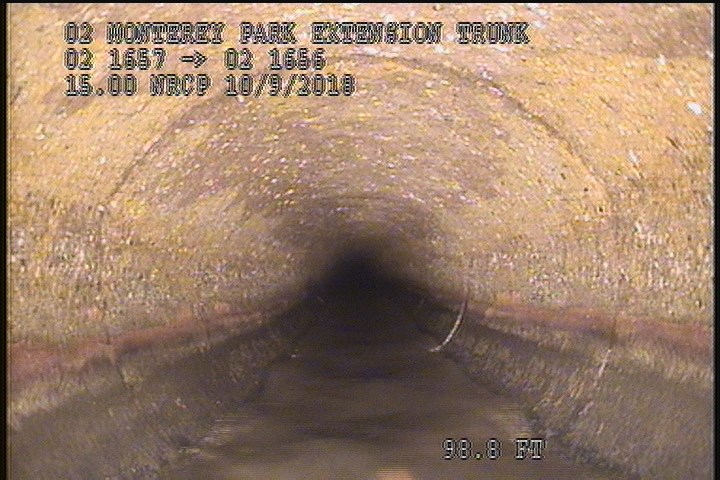

  • General Observation - 15" NRCP

    98.8 ft. - General Observation - 15" NRCP

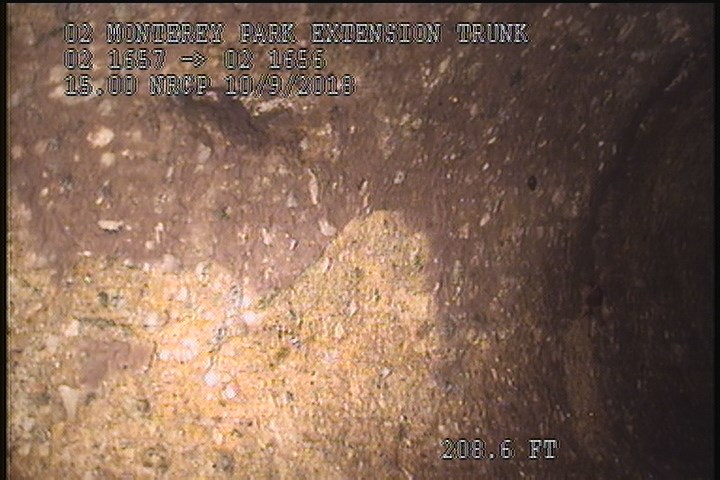

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTACHED

    208.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTACHED

All inspections of P18812Work order #

Observations (15)

DistanceCodeObservation
236.3SSSPEEELING CONCRETE SEVERE AGG ATTACHED
2SAMSEVERE AGG
0MWM—
0AMH3:40AM
9.2SSSPEELING CONCRETE SEVERE AGG ATTACHED
98.8MGO15" NRCP
156.7TFOpen
208.6SSSPEELING CONCRETE SEVERE AGG ATTACHED
236.8AMH4:00AM
2SSSPEELING CONCRETE SEVERE AGG ATTACHED
202.1TFOpen
53.2MGODEEP CORRISON 12:00
0MWL—
229.1TFOpen
236.3SAMSEVERE AGG

Properties (4)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTACHED
custom_field_two
2
customer
LACSD
datetime
2018-10-09T03:06:37-07:00
