Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 09:37 AM

  • 02 1658_02 1657A_1092018_024435.mp4

Date
10/09/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00289
PipeID
P18814
Time
2:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1000
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
EAST LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20181009MDM_MONTEREY_PARK_EXTENSION_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1658
Downstream MH
02 1657A
Dir. of Survey
Downstream
Length Surveyed
111.8 ft.
Total Length
111.8 ft.
Structural Index
3
Structural Quick
4222
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 02 1658 to 02 1657A
MH: 02 1658MH: 02 1657Adownstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 2:45AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. STUB0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELOING CONCRETE SEVERE AGG ATTACHED13.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PELING CONCRETE SEVERE AGG ATTACHED82.6 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG98.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped101.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped111.1 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG111.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active111.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PELING CONCRETE SEVERE AGG ATTCAHED111.8 ft. AMH - Downstream Manhole, Survey Ends - 3:00AM

Observation photos (4)

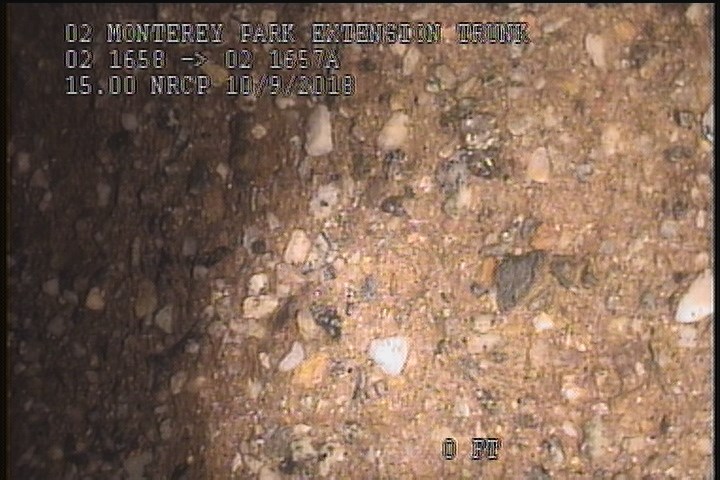

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

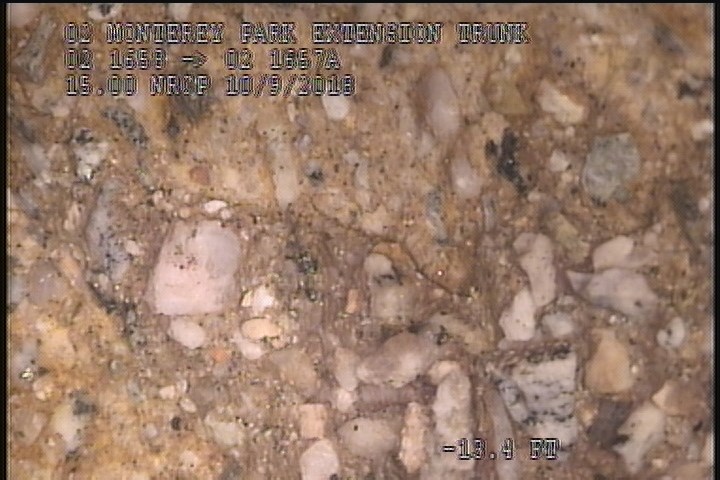

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELOING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELOING CONCRETE SEVERE AGG ATTACHED

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PELING CONCRETE SEVERE AGG ATTACHED

    13.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PELING CONCRETE SEVERE AGG ATTACHED

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    82.6 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P18814Work order #

Observations (15)

DistanceCodeObservation
111.1SAMSEVERE AGG
0MWL—
111.1MGOConn. @ Mh, 3 O' Clock. Active
111.1SSSPELING CONCRETE SEVERE AGG ATTCAHED
82.6SAMSEVERE AGG
0MGOConn. @ Mh, 6 O' Clock. Active
0AMH2:45AM
0MGOConn. @ Mh, 9 O' Clock. STUB
101.6TFCCapped
0MWM—
98.5TFCCapped
2SAMSEVERE AGG
111.8AMH3:00AM
13.2SSSPELING CONCRETE SEVERE AGG ATTACHED
2SSSPEELOING CONCRETE SEVERE AGG ATTACHED

Properties (4)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTACHED
custom_field_two
2
customer
LACSD
datetime
2018-10-09T02:37:27-07:00
