Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 06:29 AM
G 0041_G 0040_1082018_003031.mp4
- Date
- 10/08/2018
- W/O
- #
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00344
- PipeID
- P10403
- Time
- 11:29 PM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0999
- Sewer Name
- G JOINT OUTFALL G - UNIT 4
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 03
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181008MDM_JOINT_OUTFALL_G_UNIT_4
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- G 0040
- Downstream MH
- G 0041
- Dir. of Survey
- Upstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

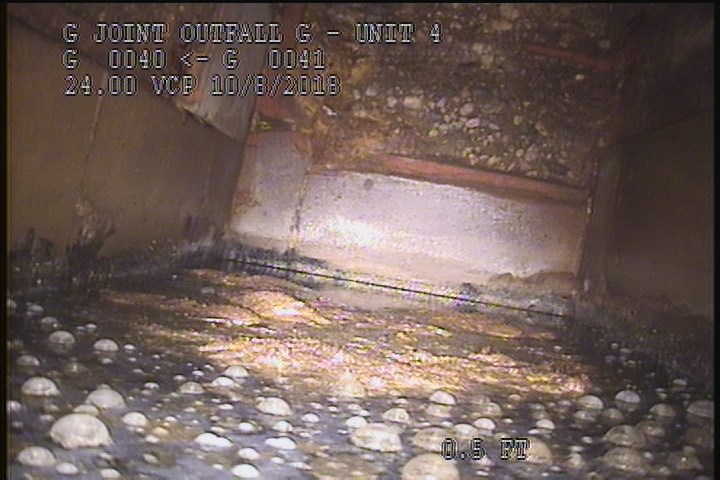

0 ft. - Water Level, 100 %of cross sectional area - NO FLOW STOPLOG IN PLACE UP STREAM

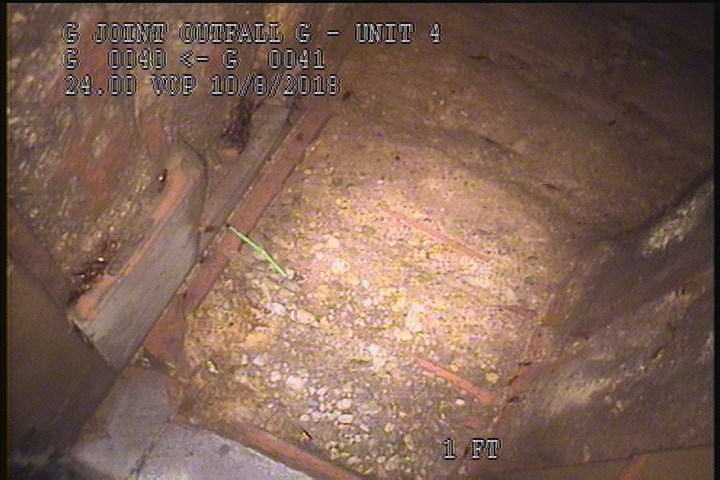

1 ft. - General Observation - TILE STRUCTURE

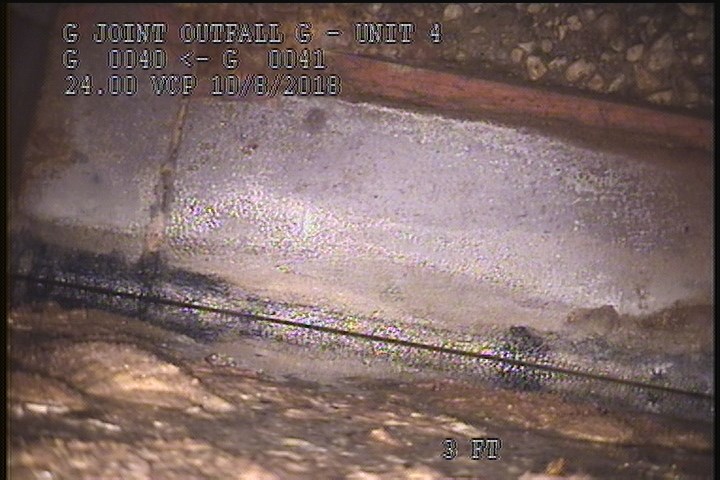

3 ft. - Survey Abandoned - UPLEG DOWN STREAM SIPHON SOUTH
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 3 | MSA | UPLEG DOWN STREAM SIPHON SOUTH |
| 0 | MWL | NO FLOW STOPLOG IN PLACE UP STREAM |
| 0 | AMH | 12:30AM |
| 1 | MGO | TILE STRUCTURE |
Properties (5)
- additional_info
- UPLEG DOWNSTREAM SIPHON SOUTH
- custom_field_three
- SIPHON NOT VISIBLE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-10-08T23:29:16-07:00
