Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 03:53 PM
05 0965_05 0964_1052018_125649.mp4
- Date
- 10/05/2018
- W/O
- 0726630
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00481
- PipeID
- P06197
- Time
- 8:53 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- H0998
- Sewer Name
- 05 MANCHESTER AVENUE PUMP TRUNK
- City
- HAWTHORNE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Maintenance Related
- Project
- 20181005SHO_MANCHESTER_AVENUE_PUMP_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 0965
- Downstream MH
- 05 0964
- Dir. of Survey
- Downstream
- Length Surveyed
- 39.8 ft.
- Total Length
- 39.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

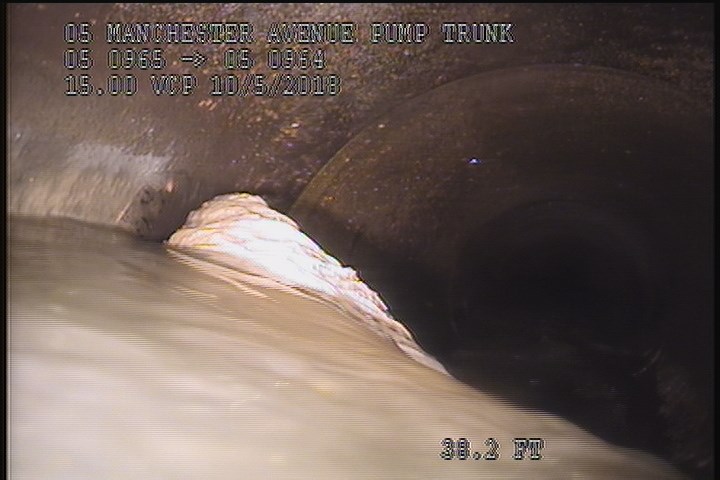

38.2 ft. - Obstacles Other, 30 %of cross sectional area, from 05 to 09 o'clock - DEBRIS

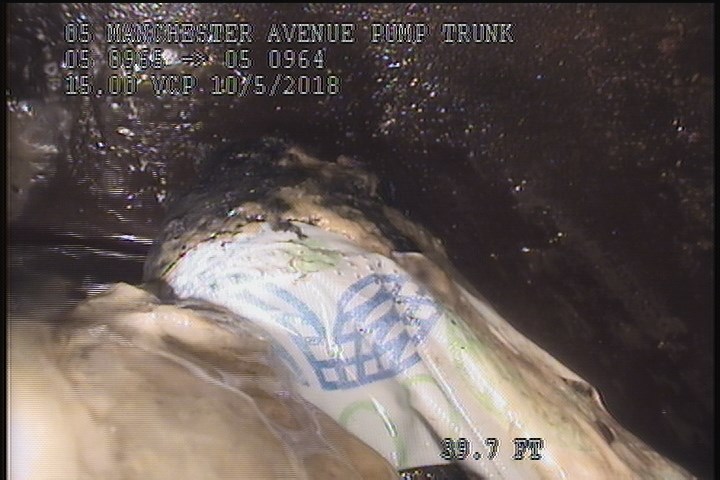

39.7 ft. - General Photograph - DEBRIS
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 38.2 | OBZ | DEBRIS |
| 0 | AMH | MH 0965 |
| 39.7 | MGP | DEBRIS |
| 0 | MWL | — |
| 26.3 | TFC | — |
| 39.8 | MSA | DUE TO DEBRIS |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- DEBRIS IN THE LINE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-10-05T08:53:27-07:00
