Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 07:48 AM
21 1298_21 1297_1052018_031710.mp4
- Date
- 10/05/2018
- W/O
- 0731552
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00763
- PipeID
- P25689
- Time
- 12:48 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Heavy Cleaning
- Media Label
- H0996
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 28
- Purpose
- Maintenance Related
- Project
- 20181005MDM_DISTRICT_21_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 21 1298
- Downstream MH
- 21 1297
- Dir. of Survey
- Downstream
- Length Surveyed
- 171.8 ft.
- Total Length
- 171.8 ft.
- Structural Index
- 2
- Structural Quick
- 2400
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (7)

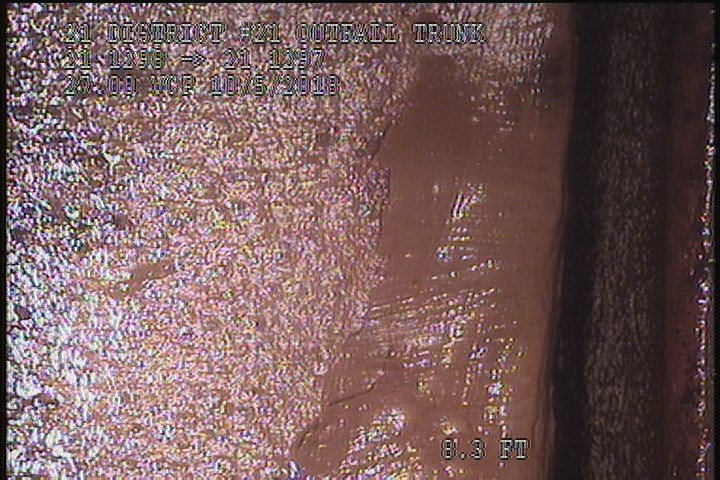

8.3 ft. - Surface Spalling, from 08 to 11 o'clock, within 8 inches of joint: YES - CORRISON AT JOINT

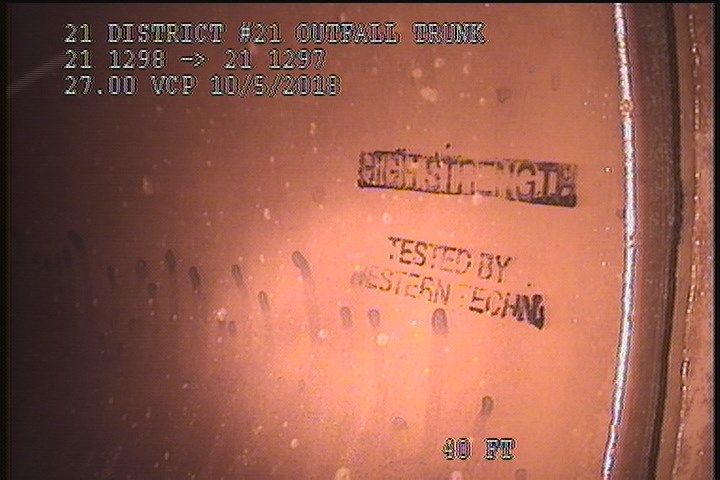

40 ft. - General Observation - 1

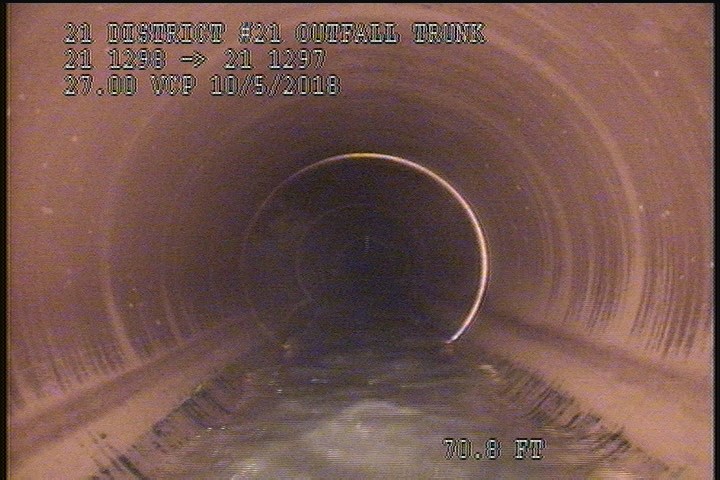

70.8 ft. - General Observation - 27" VCP

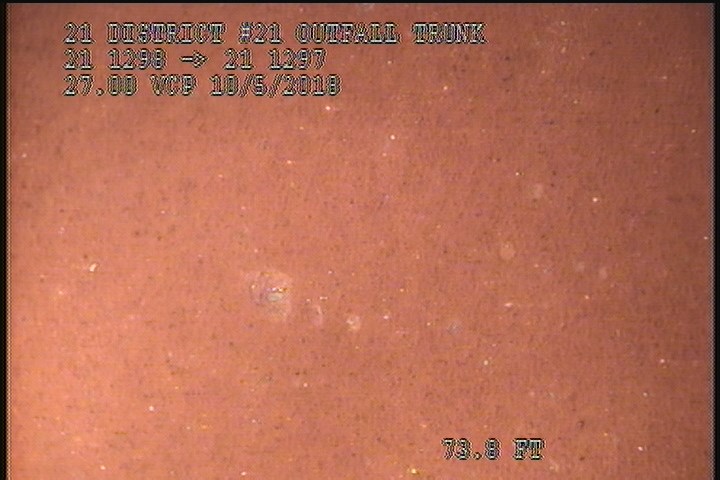

73.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SMALL INDENTSIONS

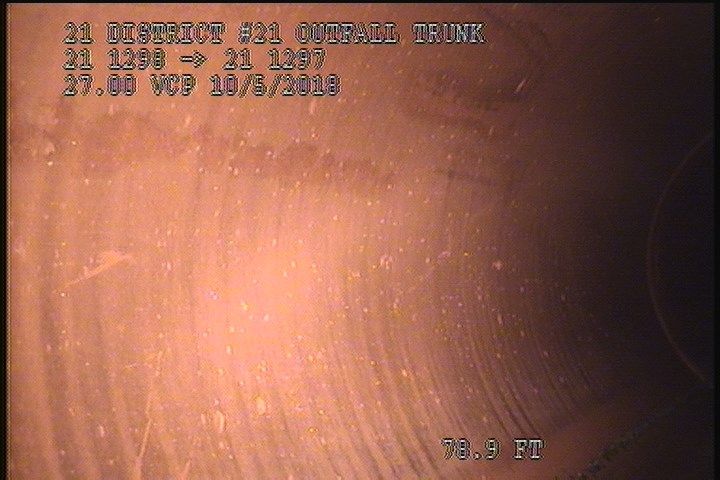

78.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SMALL INDENTSIONS

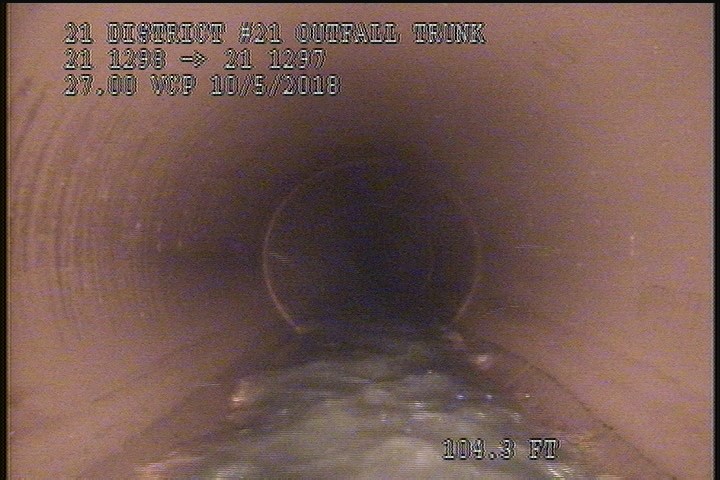

104.3 ft. - General Observation - 27" VCP

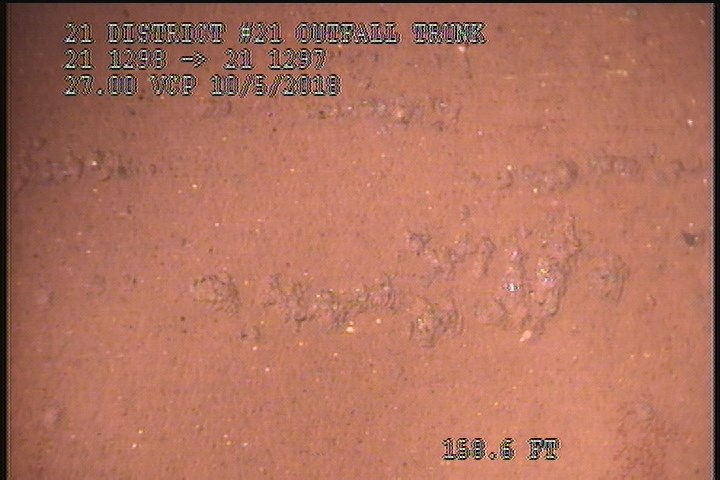

158.6 ft. - Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 158.6 | SSS | — |
| 70.8 | MGO | 27" VCP |
| 8.3 | SSS | CORRISON AT JOINT |
| 0 | MWM | — |
| 40 | MGO | 1 |
| 73.8 | SSS | SMALL INDENTSIONS |
| 0 | AMH | 2:55AM |
| 0 | MWL | — |
| 104.3 | MGO | 27" VCP |
| 171.8 | MSA | 3:40AM |
| 171.2 | SSS | SMALL INDENTSIONS |
| 78.9 | SSS | SMALL INDENTSIONS |
Properties (3)
- additional_info
- POST CLEANING
- customer
- LACSD
- datetime
- 2018-10-05T00:48:02-07:00
