Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 07:46 AM
21 1298_21 1297_1052018_021916.mp4
- Date
- 10/05/2018
- W/O
- 0731552
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00763
- PipeID
- P25689
- Time
- 12:46 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0996
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 28
- Purpose
- Maintenance Related
- Project
- 20181005MDM_DISTRICT_21_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 21 1298
- Downstream MH
- 21 1297
- Dir. of Survey
- Downstream
- Length Surveyed
- 170.6 ft.
- Total Length
- 170.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (8)

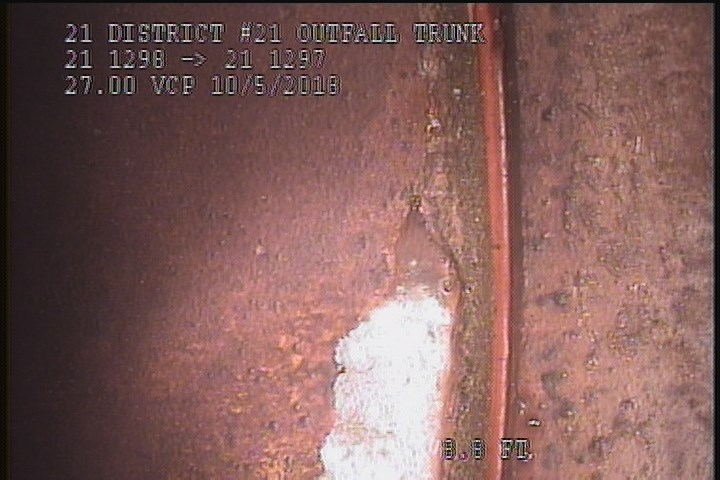

8.8 ft. - Surface Spalling, from 08 to 11 o'clock, within 8 inches of joint: YES - CORRISION AT JOINT

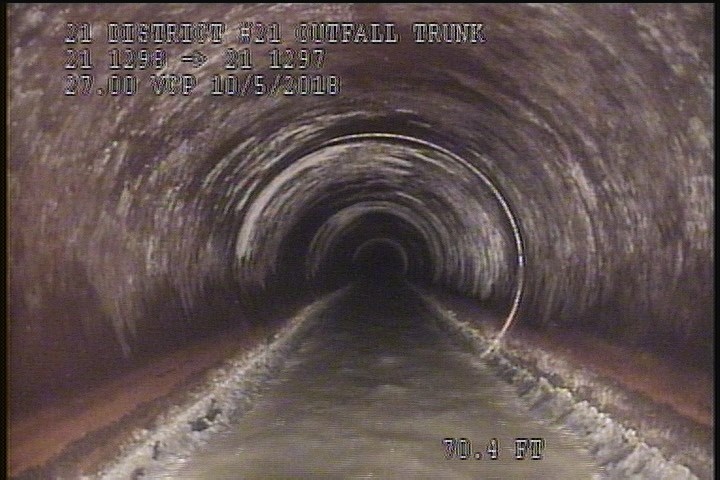

70.4 ft. - General Observation - WHITE COATING ON PIPE 8:00 TO 4:00

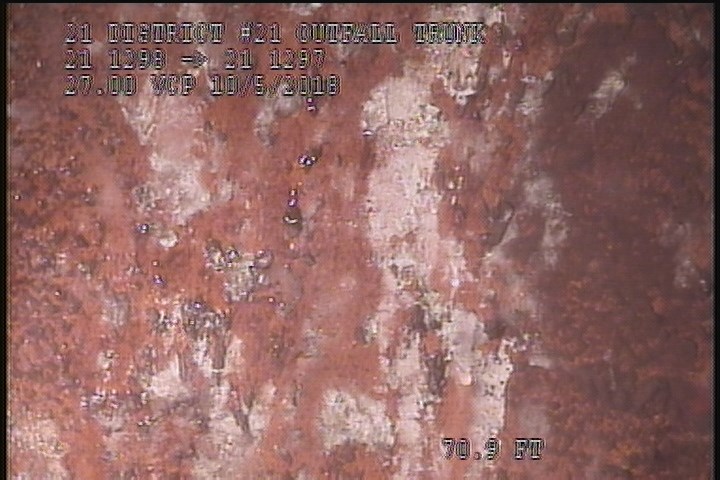

70.9 ft. - General Observation - WHITE COATING

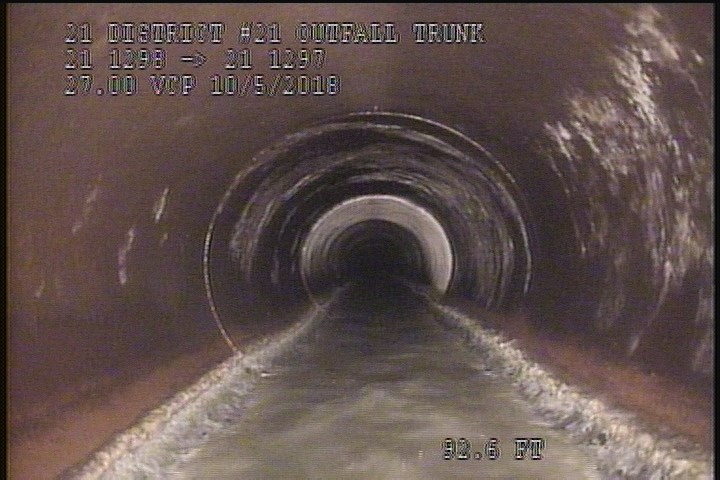

92.6 ft. - General Observation - WHITE COATING

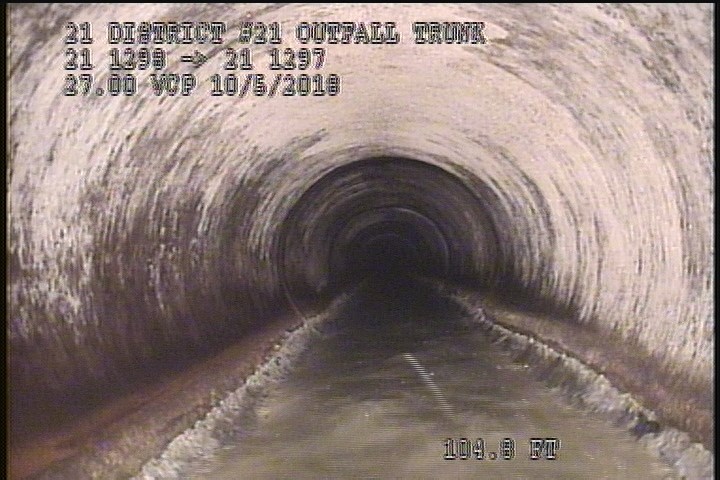

104.8 ft. - General Observation - WHITE COATING

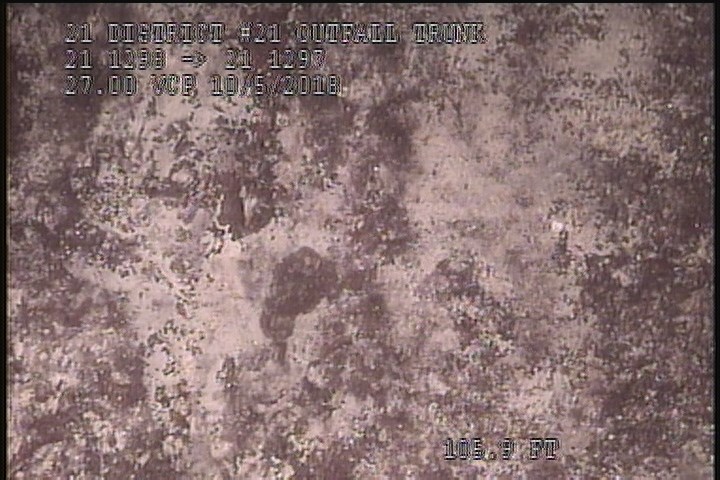

105.9 ft. - General Observation - WHITE COATING

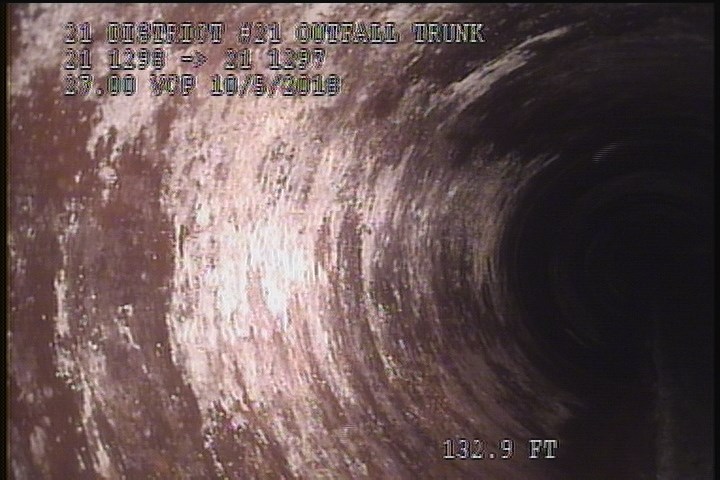

132.9 ft. - General Observation - WHITE COATING

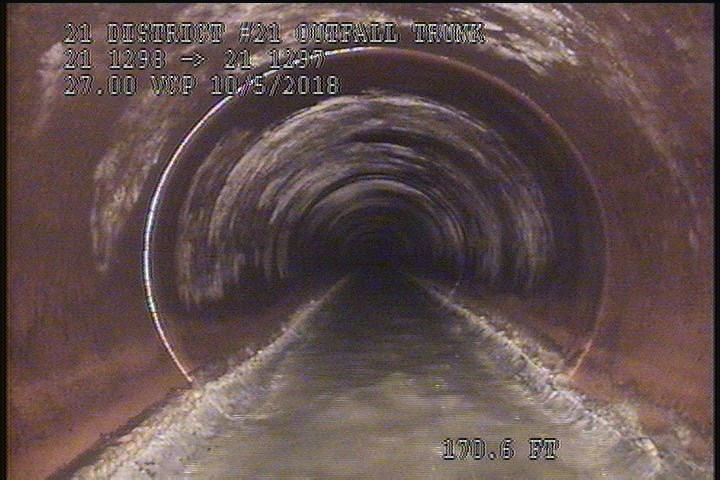

170.6 ft. - Survey Abandoned - 2:20AM
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 105.9 | MGO | WHITE COATING |
| 170.6 | MSA | 2:20AM |
| 70.4 | MGO | WHITE COATING ON PIPE 8:00 TO 4:00 |
| 132.9 | MGO | WHITE COATING |
| 0 | AMH | 2:00AM |
| 70.9 | MGO | WHITE COATING |
| 0 | MWL | — |
| 0 | MWL | — |
| 8.8 | SSS | CORRISION AT JOINT |
| 92.6 | MGO | WHITE COATING |
| 104.8 | MGO | WHITE COATING |
Properties (3)
- additional_info
- PRE CLEANING
- customer
- LACSD
- datetime
- 2018-10-05T00:46:44-07:00
