Wastewater/Activity/PacpInspection/1.0Apr 6, 2018, 08:48 AM
32 1003_32 1002A _06042018_015636.mp4
- Date
- 04/06/2018
- W/O
- 690713
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19449
- Time
- 1:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5563
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_690713_TV32049_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1003
- Downstream MH
- 32 1002A
- Dir. of Survey
- Downstream
- Length Surveyed
- 80.6 ft.
- Total Length
- 80.6 ft.
- Structural Index
- 3
- Structural Quick
- 3B2B
- Structural Rating
- 75
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 79
Observation photos (2)

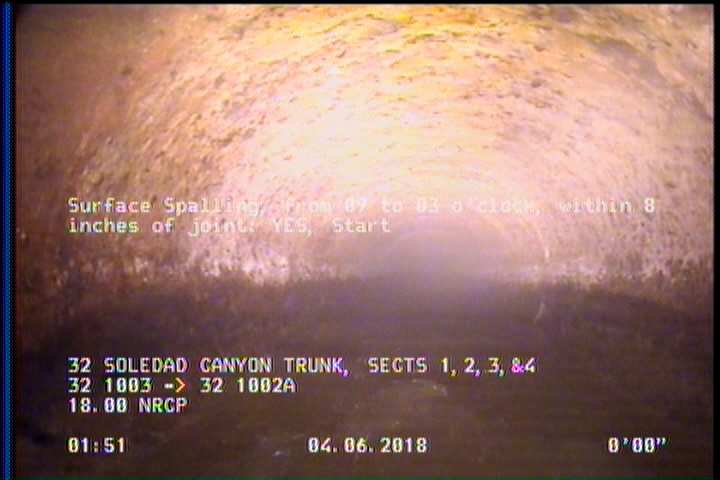

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 0 | AMH | 32 1003 |
| 80.6 | AMH | 32 1002A |
| 78.2 | SSS | — |
| 2 | SAP | — |
| 78 | MGO | MAG COAT FROM 09 TO 03 O'CLOCK, 25% THROUGHOUT THE REACH |
| 78.2 | SAP | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 80.6 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC358522
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-06T01:48:52-07:00
