Wastewater/Activity/PacpInspection/1.0Oct 19, 2016, 11:06 AM
- Date
- 10/19/2016
- W/O
- 597387
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00290
- PipeID
- P04424
- Time
- 4:06 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3743
- Sewer Name
- 02 MONTEREY PARK EXTENSION RELIEF TRUNK
- City
- MONTEREY PARK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_597387_TV02101_OCT2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 2150
- Downstream MH
- 02 2149
- Dir. of Survey
- Downstream
- Length Surveyed
- 233.9 ft.
- Total Length
- 234 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)
227.7 ft. - Obstacles In Joint, 5 %of cross sectional area, at 02 o'clock

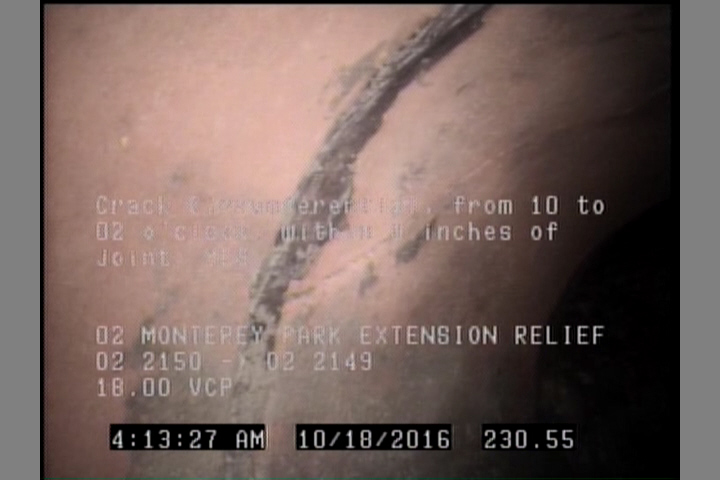

230.6 ft. - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 234 | AMH | 02 2149 |
| 0 | MWM | — |
| 0 | MWL | — |
| 234 | VC | — |
| 227.7 | OBJ | — |
| 230.6 | CC | — |
| 0 | AMH | 02 2150 |
Properties (5)
- additional_info
- SC303732
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-19T04:06:00-07:00
- year_laid
- 30729
