Wastewater/Activity/PacpInspection/1.0Aug 5, 2016, 11:04 AM
05 1888_05 1887 _05082016_040710.mp4
- Date
- 08/05/2016
- W/O
- 579954
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00491
- PipeID
- P07115
- Time
- 4:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3627
- Sewer Name
- 05 NARBONNE AVENUE TRUNK, SECTION 2
- City
- ROLLING HILLS ESTATES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_579954_TV05079_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 1888
- Downstream MH
- 05 1887
- Dir. of Survey
- Downstream
- Length Surveyed
- 406.9 ft.
- Total Length
- 406.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2O1M
- O&M Rating
- 233
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 233
Observation photos (3)

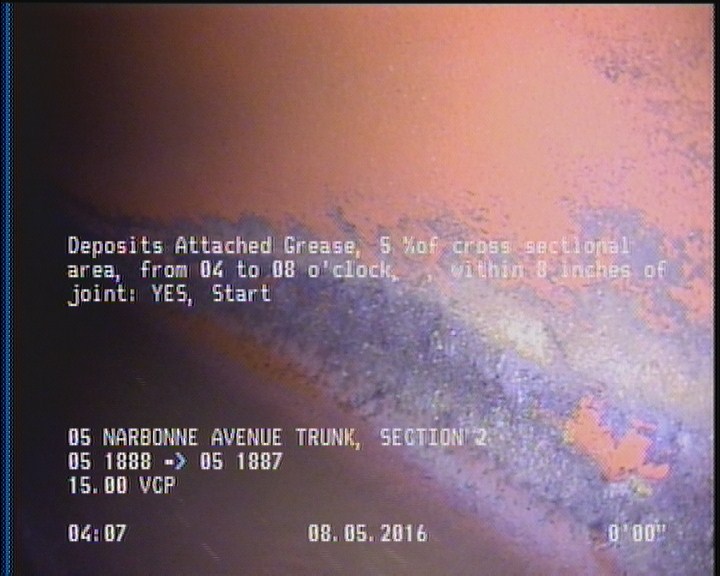

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

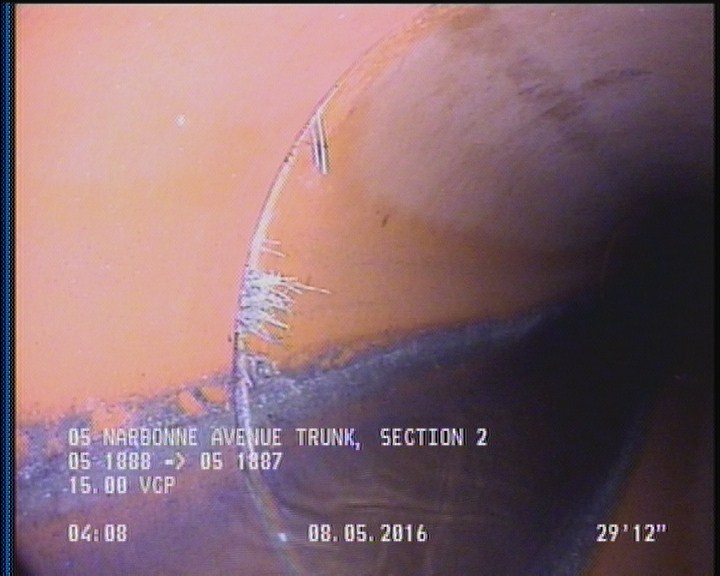

30 ft. - Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR

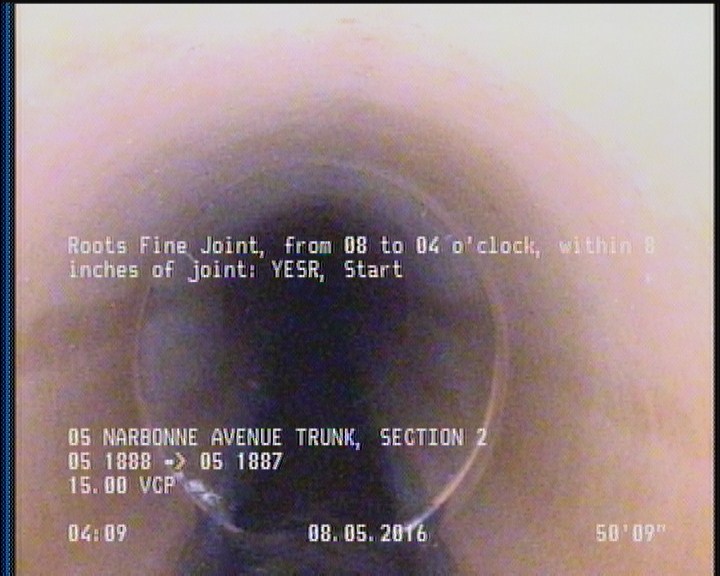

50.7 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 30 | RFJ | — |
| 0 | AMH | 05 1888 |
| 153.7 | TBA | — |
| 0 | MWM | — |
| 50.7 | RFJ | — |
| 387.2 | TBA | — |
| 2 | DAGS | — |
| 390.8 | TBA | — |
| 400.9 | RFJ | — |
| 406.9 | AMH | 05 1887 |
| 155.7 | TBA | — |
| 0 | MWL | — |
| 404.5 | DAGS | — |
Properties (4)
- additional_info
- SC306061
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-05T04:04:31-07:00
