Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 31, 2016, 11:36 AM

  • 15 0976_H 0508_31032016_043639.mp4

Date
03/31/2016
W/O
563410
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00636
PipeID
P12751
Time
4:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3302
Sewer Name
15 VALINDA TRUNK
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_563410_TV15038_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
15 0976
Downstream MH
H 0508
Dir. of Survey
Downstream
Length Surveyed
243.1 ft.
Total Length
243.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4136
O&M Rating
118
Overall Index
2
Overall Quick
—
Overall Rating
118
Pipe schematic from manhole 15 0976 to H 0508
MH: 15 0976MH: H 0508downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 15 09762 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start61 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"145.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start145.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"173.4 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish176.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"243 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish243.1 ft. AMH - Downstream Manhole, Survey Ends - H 0508243.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK243.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

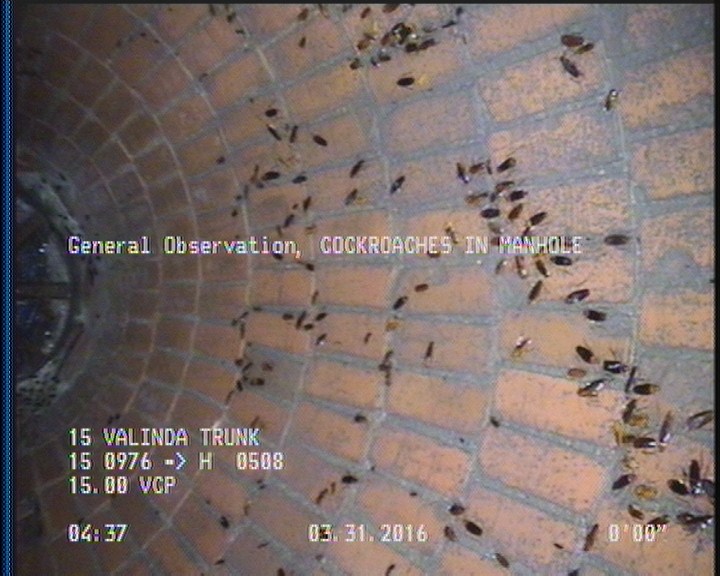

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

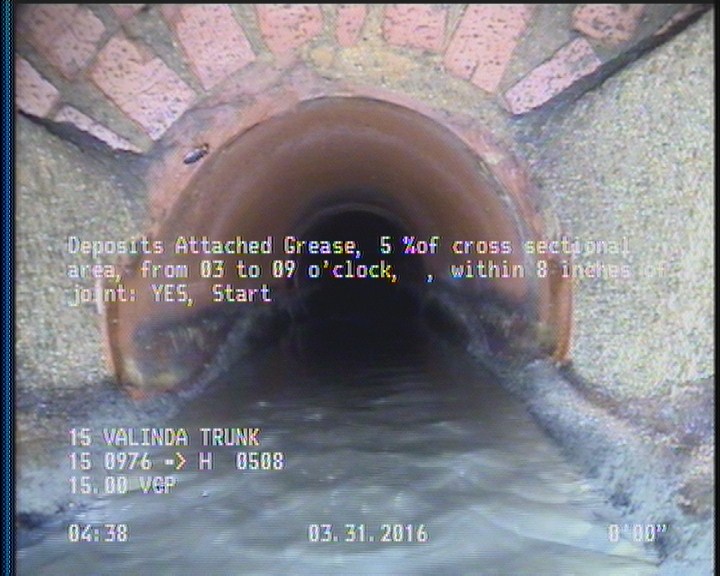

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

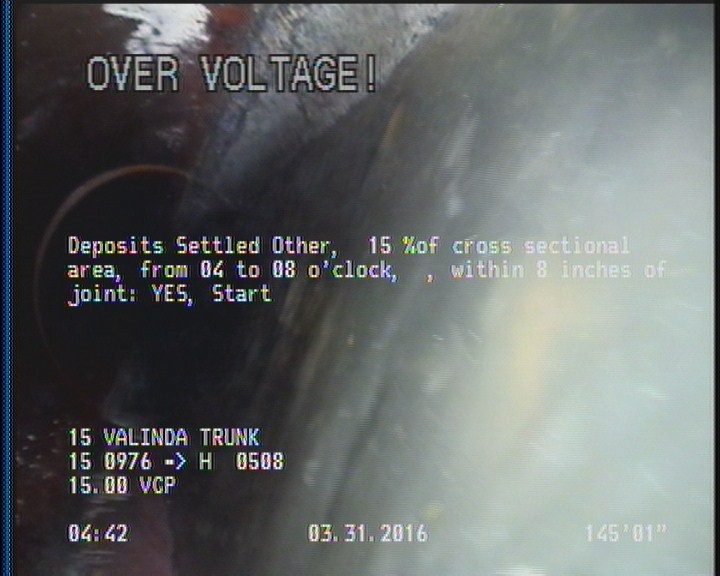

  • Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    145.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

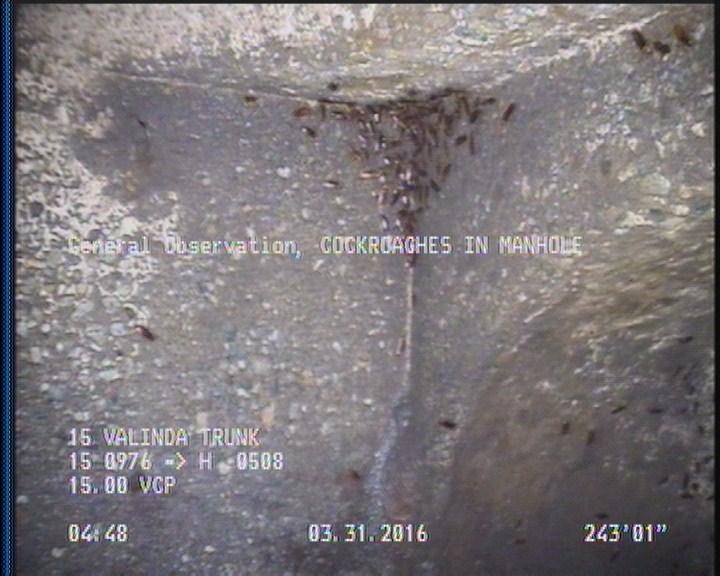

  • General Observation - COCKROACHES IN MANHOLE

    243.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P12751Work order 563410

Observations (15)

DistanceCodeObservation
145.1DSZ—
0MWL—
243.1AMHH 0508
145.1TFC—
0MWM—
243DAGS—
0MGOCOCKROACHES IN MANHOLE
243.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
173.4DSZ—
61TFC—
2DAGS—
243.1MGOCOCKROACHES IN MANHOLE
200.3TFC—
176.3TFC—
0AMH15 0976

Properties (4)

additional_info
SC305428
custom_field_two
4
customer
LACSD
datetime
2016-03-31T04:36:22-07:00
