Wastewater/Activity/PacpInspection/1.0Aug 28, 2018, 06:53 AM
A 0642B_A 0642A _27082018_235323.mp4
- Date
- 08/27/2018
- W/O
- 724135
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00316
- PipeID
- P07849
- Time
- 11:53 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5985
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_724135_TV21060_SEP2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Width
- 54 in.
- Upstream MH
- A 0642A
- Downstream MH
- A 0642B
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

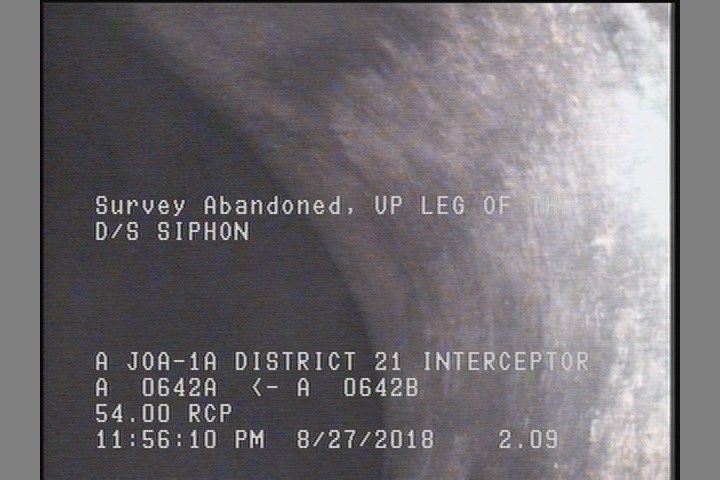

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

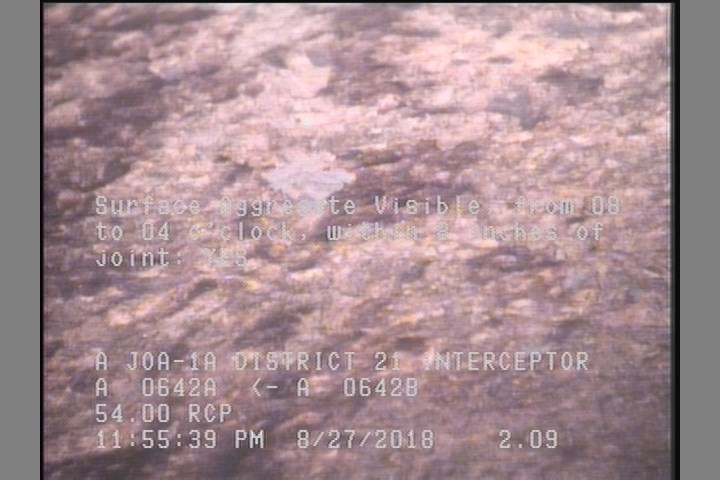

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | A 0642A |
| 0 | MWM | — |
| 0 | MWL | — |
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 2.1 | SAV | — |
Properties (4)
- additional_info
- SC364749
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-27T23:53:10-07:00
