Wastewater/Activity/PacpInspection/1.0Sep 21, 2018, 05:21 AM
B 0959_B 0039_09202018_224818.mp4
- Date
- 09/20/2018
- W/O
- 723998
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00113
- PipeID
- P09420
- Time
- 10:21 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6037
- Sewer Name
- B JOINT OUTFALL B - UNIT 9A
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_723998_TV08106_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- B 0959
- Downstream MH
- B 0039
- Dir. of Survey
- Downstream
- Length Surveyed
- 32.3 ft.
- Total Length
- 32.3 ft.
- Structural Index
- 3
- Structural Quick
- 5636
- Structural Rating
- 60
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 64
Observation photos (3)

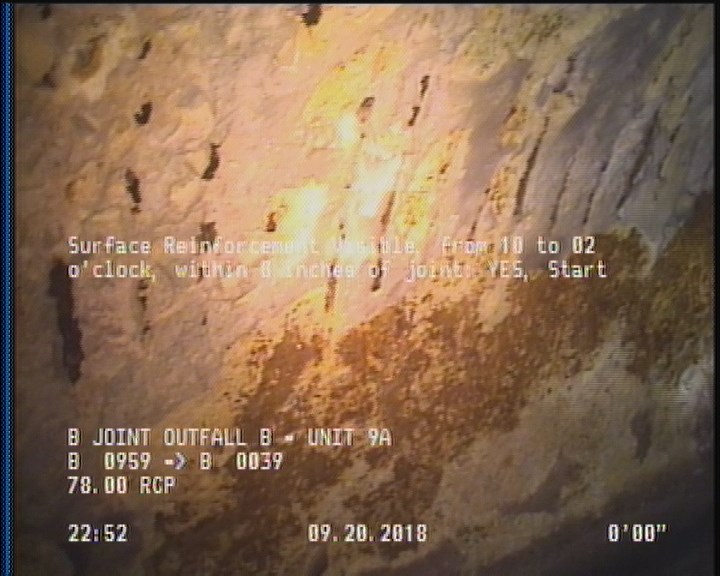

2 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

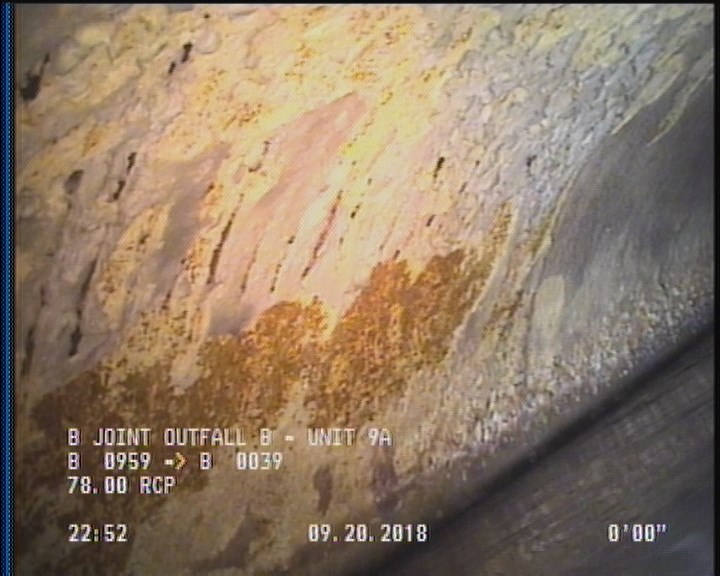

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

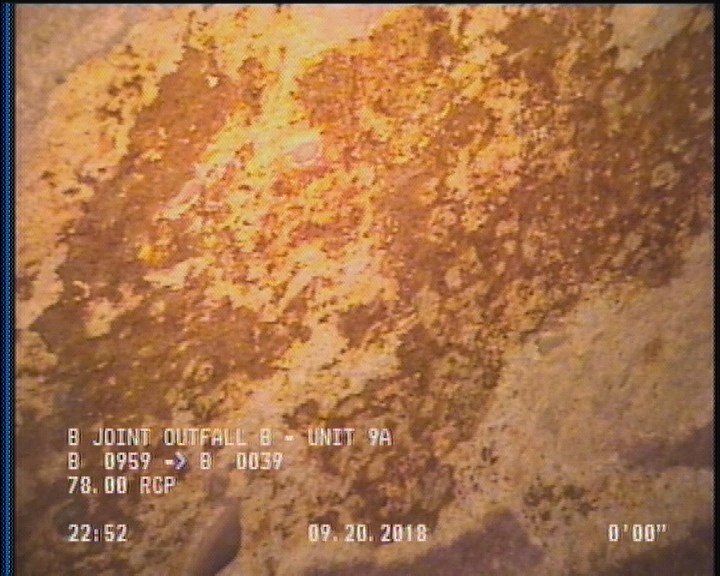

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRV | — |
| 32.3 | SAP | — |
| 32.3 | SSS | — |
| 2 | SSS | — |
| 32.3 | AMH | B 0039 |
| 0 | MWL | — |
| 0 | MWM | — |
| 32.3 | SRV | — |
| 2 | SAP | — |
| 0 | AMH | B 0959 |
Properties (4)
- additional_info
- SC364835
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-20T22:21:39-07:00
