Wastewater/Activity/PacpInspection/1.0Sep 19, 2018, 09:02 AM
B 0761_B 0760 _09192018_020102.mp4
- Date
- 09/19/2018
- W/O
- 723891
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00112
- PipeID
- P09227
- Time
- 2:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6033
- Sewer Name
- B JOINT OUTFALL B - UNIT 8J
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_723891_TV15210_SEP2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 0760
- Downstream MH
- B 0761
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

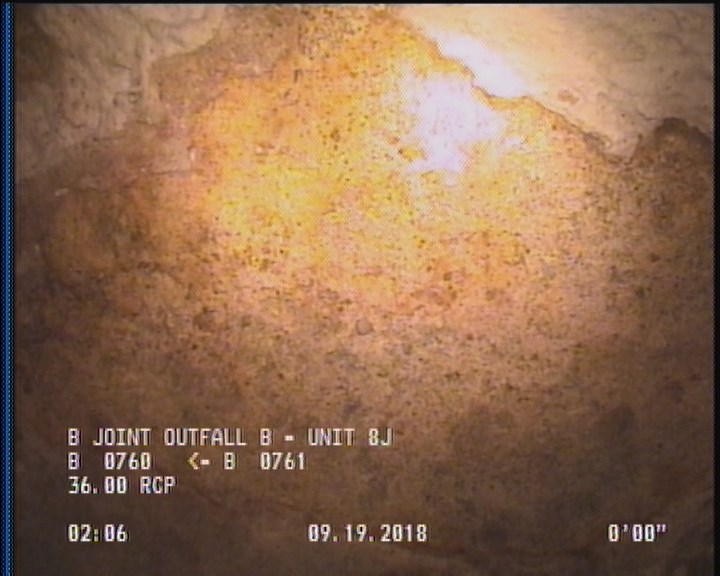

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

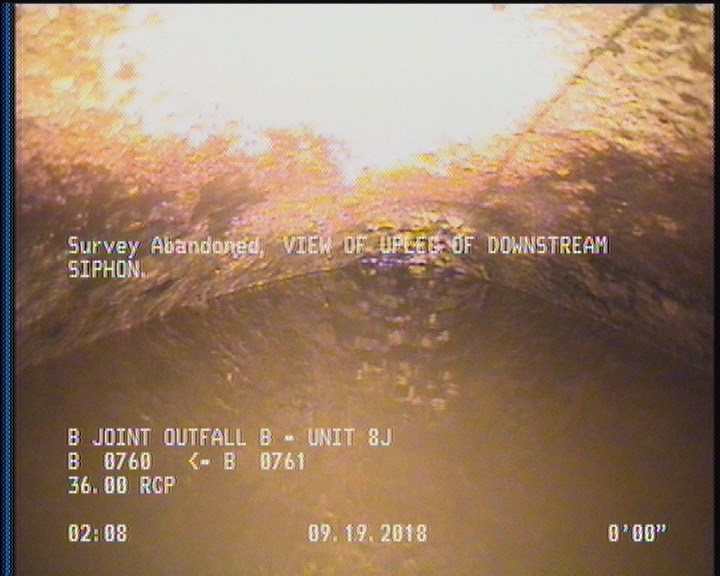

2 ft. - Survey Abandoned - VIEW OF UPLEG OF DOWNSTREAM SIPHON.

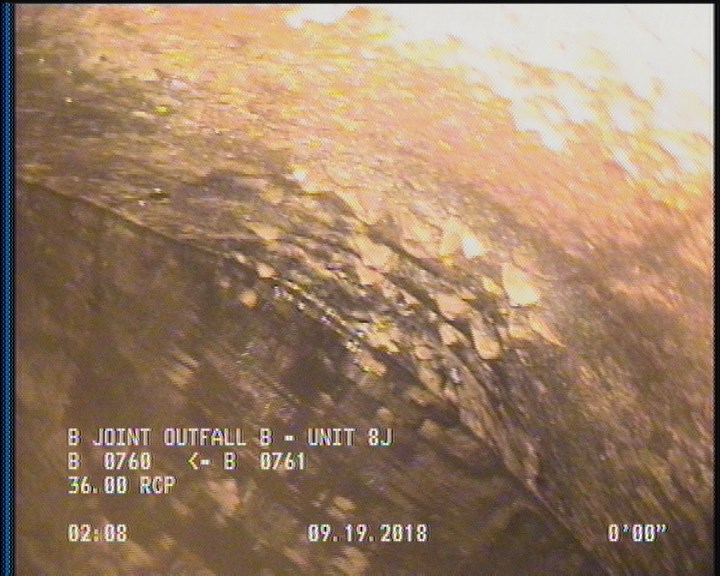

2 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 2 | MSA | VIEW OF UPLEG OF DOWNSTREAM SIPHON. |
| 0 | AMH | B 0760 |
| 2 | SRV | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC364797
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-19T02:02:43-07:00
