Wastewater/Activity/PacpInspection/1.0Aug 29, 2018, 09:28 AM
F 0302_F 0145 _29082018_022903.mp4
- Date
- 08/29/2018
- W/O
- 723806
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00690
- PipeID
- P14201
- Time
- 2:28 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5988
- Sewer Name
- 18 NORTH NORWALK TRUNK
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_723806_TV18167_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- F 0302
- Downstream MH
- F 0145
- Dir. of Survey
- Downstream
- Length Surveyed
- 27.2 ft.
- Total Length
- 27.2 ft.
- Structural Index
- 4
- Structural Quick
- 4500
- Structural Rating
- 20
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (2)

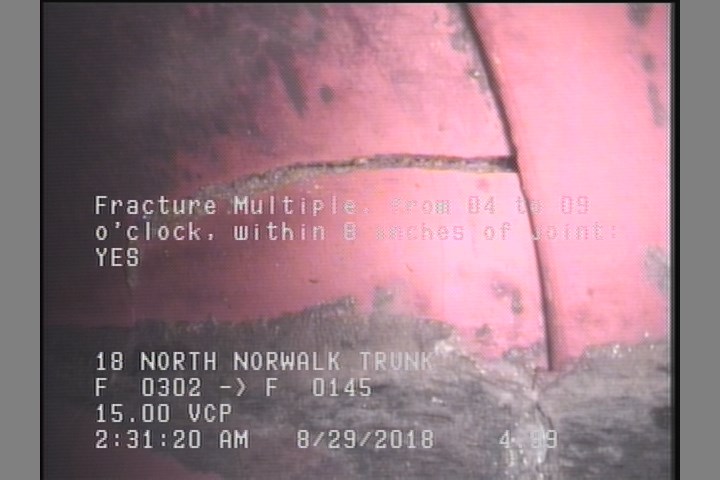

5 ft. - Fracture Multiple, from 04 to 09 o'clock, within 8 inches of joint: YES

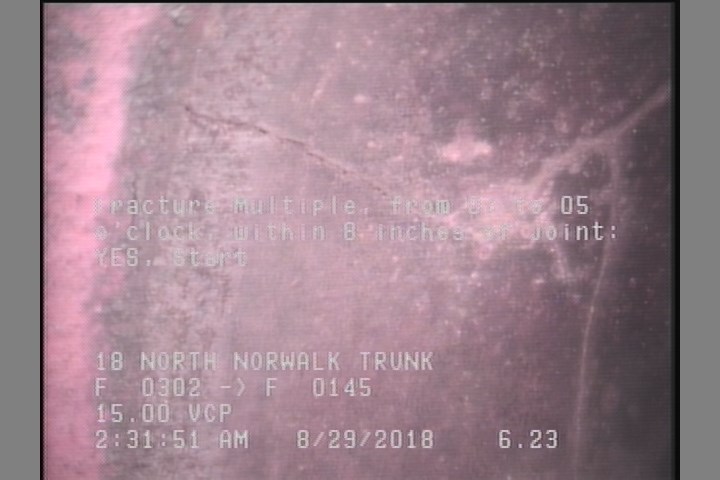

6.2 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 24.4 | FM | — |
| 0 | MWL | — |
| 27.2 | AMH | F 0145 |
| 0 | MWM | — |
| 6.2 | FM | — |
| 5 | FM | — |
| 27.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | F 0302 |
Properties (4)
- additional_info
- SC364802
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-29T02:28:35-07:00
