Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 21, 2018, 05:43 AM

  • C 0102_C 0101 _20092018_224556.mp4

Date
09/20/2018
W/O
724195
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00123
PipeID
P09569
Time
10:43 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6113
Sewer Name
C JOINT OUTFALL C - UNIT 3D
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
RFIR_WO_724195_TV03164_SEPT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Width
57 in.
Upstream MH
C 0102
Downstream MH
C 0101
Dir. of Survey
Downstream
Length Surveyed
293.5 ft.
Total Length
293.5 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
174
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
178
Pipe schematic from manhole C 0102 to C 0101
MH: C 0102MH: C 0101downstream0 ft. AMH - Upstream Manhole, Survey Begins - C 01020 ft. MWL - Water Level, 70 %of cross sectional area0 ft. MWM - Water Mark, 70 %of cross sectional area2.1 ft. MGO - General Observation - MAG COAT2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start37.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start37.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish293.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish293.5 ft. AMH - Downstream Manhole, Survey Ends - C 0101 ZOOMED IN

Observation photos (2)

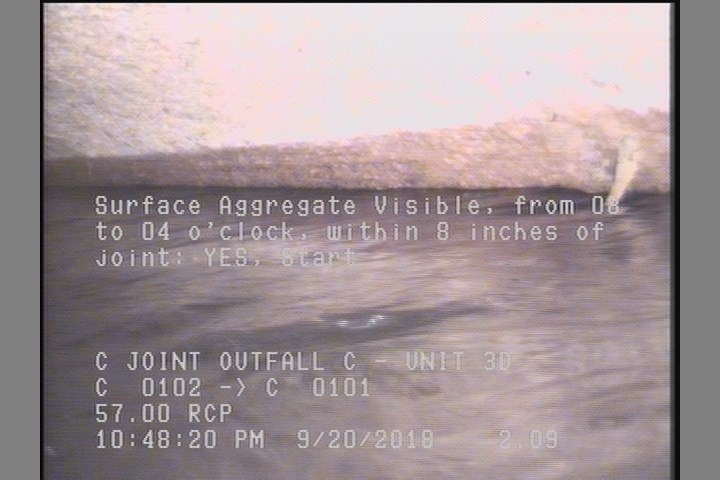

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

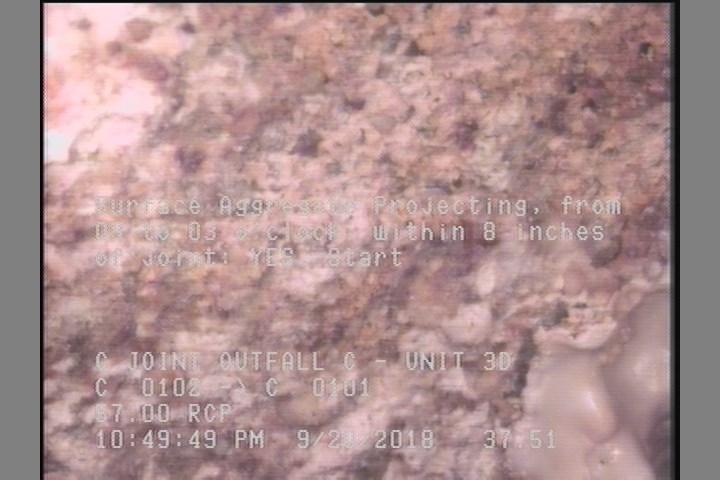

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    37.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P09569Work order 724195

Observations (9)

DistanceCodeObservation
2.1MGOMAG COAT
37.5SAP—
293.3SAP—
0AMHC 0102
0MWL—
293.5AMHC 0101 ZOOMED IN
0MWM—
2.1SAV—
37.5SAV—

Properties (3)

additional_info
SC364829
customer
LACSD
datetime
2018-09-20T22:43:46-07:00
