Wastewater/Activity/PacpInspection/1.0Sep 20, 2018, 09:03 AM
19 0207_19 0206_20092018_020851.mp4
- Date
- 09/20/2018
- W/O
- 724117
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00726
- PipeID
- P15176
- Time
- 2:03 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6111
- Sewer Name
- 19 NORWALK BOULEVARD TRUNK
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_724117_TV19068_SEPT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 19 0207
- Downstream MH
- 19 0206
- Dir. of Survey
- Downstream
- Length Surveyed
- 240.7 ft.
- Total Length
- 240.7 ft.
- Structural Index
- 3
- Structural Quick
- 413H
- Structural Rating
- 139
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 139
Observation photos (3)

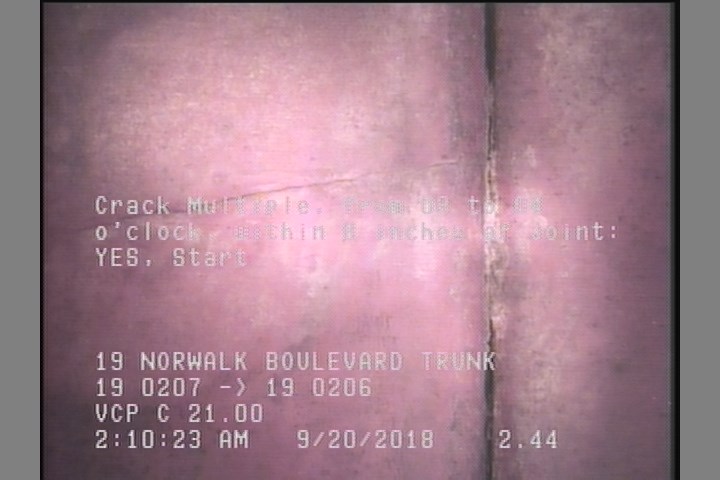

2.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

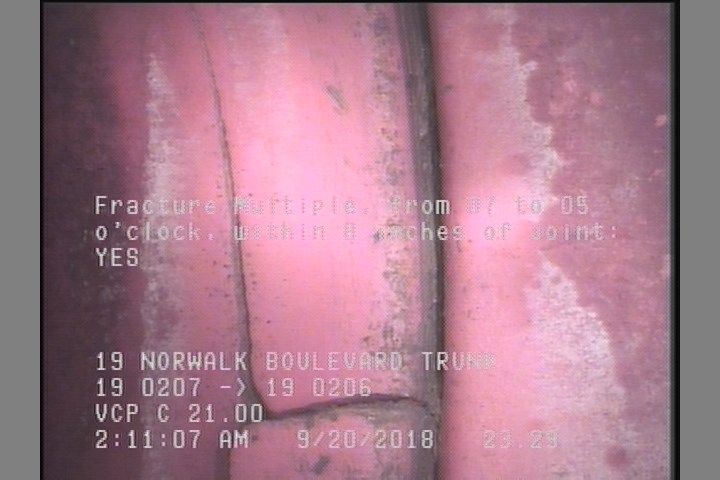

23.3 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

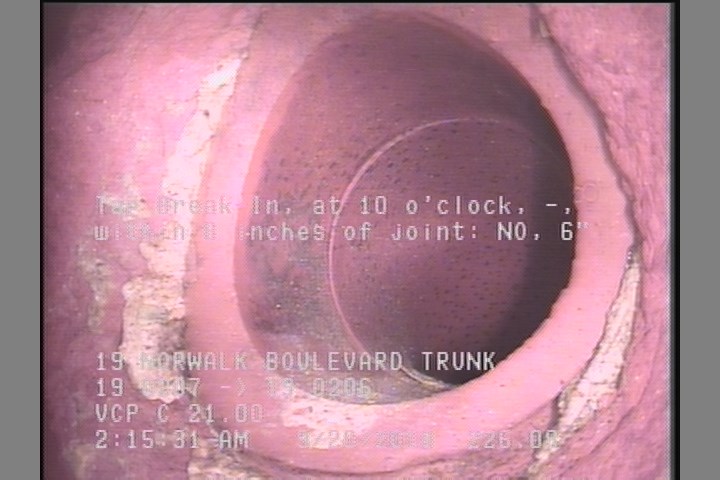

226.1 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 23.3 | FM | — |
| 0 | MWL | — |
| 2.4 | CM | — |
| 174.4 | TFC | — |
| 0 | MWM | — |
| 228.2 | CM | — |
| 0 | AMH | 19 0207 |
| 226.1 | TB | — |
| 240.7 | AMH | 19 0206 |
| 230.7 | TFC | — |
Properties (4)
- additional_info
- SC364827
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-20T02:03:50-07:00
