Wastewater/Activity/PacpInspection/1.0Jul 7, 2017, 10:30 AM
18 0263_18 0262 _07072017_033041.mp4
- Date
- 07/07/2017
- W/O
- 640666
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00672
- PipeID
- P14091
- Time
- 3:30 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4638
- Sewer Name
- 18 BROADWAY TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_640666_TV18003_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0263
- Downstream MH
- 18 0262
- Dir. of Survey
- Downstream
- Length Surveyed
- 99.6 ft.
- Total Length
- 99.6 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

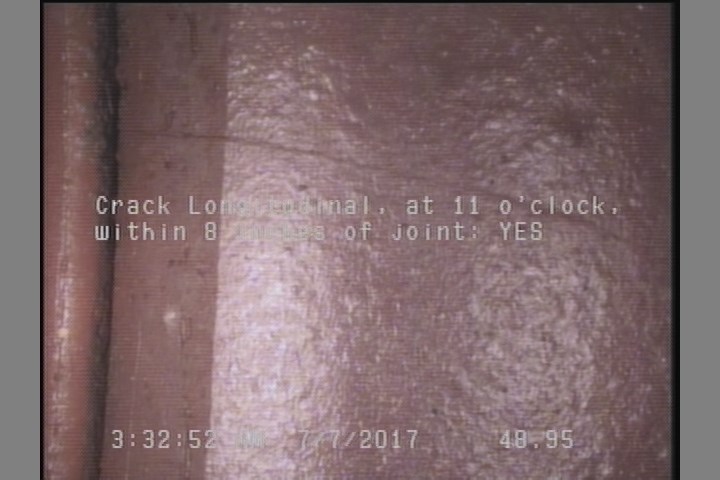

49 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

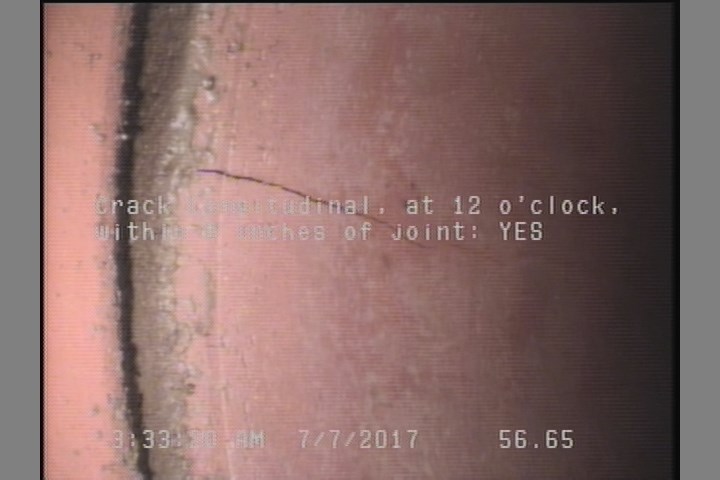

56.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

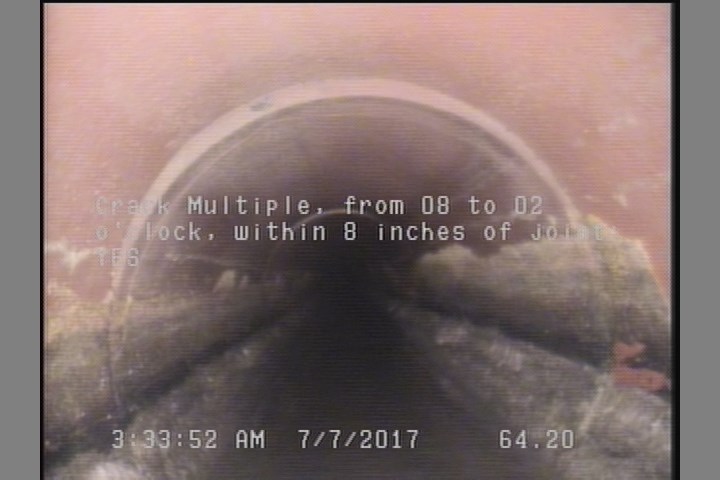

64.2 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 49 | CL | — |
| 64.2 | CM | — |
| 0 | MWL | — |
| 99.6 | AMH | 18 0262 |
| 0 | AMH | 18 0263 |
| 99.5 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 56.7 | CL | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC345384
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-07T03:30:29-07:00
