Wastewater/Activity/PacpInspection/1.0Jul 17, 2017, 10:52 AM
02 0882_02 0881_17072017_035320.mp4
- Date
- 07/17/2017
- W/O
- 646918
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00249
- PipeID
- P03449
- Time
- 3:52 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4651
- Sewer Name
- 02 DOWNEY TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_646918_TV02306_JUL2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0882
- Downstream MH
- 02 0881
- Dir. of Survey
- Downstream
- Length Surveyed
- 296.2 ft.
- Total Length
- 296.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

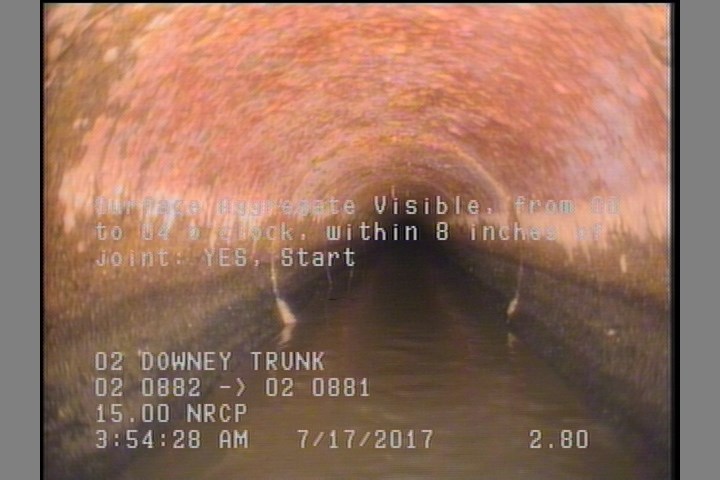

2.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

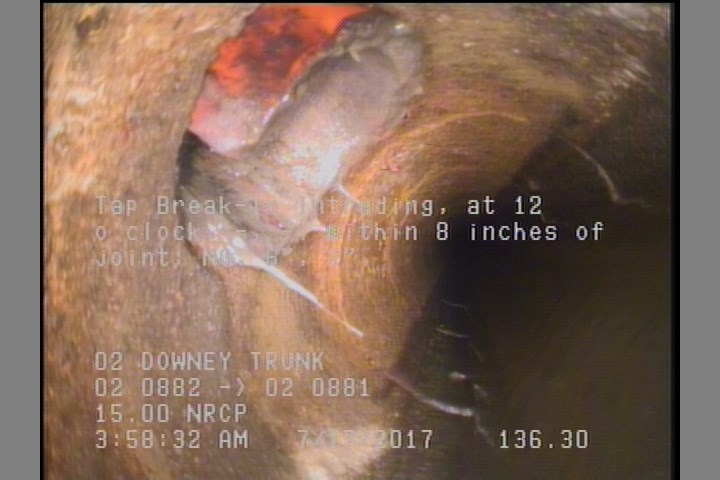

136.3 ft. - Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: NO, 6", 2"
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 158.4 | TF | — |
| 296.2 | AMH | 02 0881 |
| 150.4 | TFC | — |
| 160.2 | TF | — |
| 0 | AMH | 02 0882 |
| 254.3 | TF | — |
| 136.3 | TBI | — |
| 49 | TFA | — |
| 2.9 | MGO | MAG COAT |
| 0 | MWL | — |
| 2.8 | SAV | — |
| 156.3 | TF | — |
| 189.9 | TFC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 296.2 | SAV | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC345511
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-17T03:52:51-07:00
