Wastewater/Activity/PacpInspection/1.0Sep 28, 2018, 08:16 PM
Section#2_H 0406_H 0405__9282018__I0077.mp4
- Date
- 09/28/2018
- W/O
- 0729413
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00177
- PipeID
- P10840
- Time
- 1:16 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0077
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- WHITTIER
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 02
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180928SHO_JOINT_OUTFALL_H_UNIT_5A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Upstream MH
- H 0406
- Downstream MH
- H 0405
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 5
- Structural Quick
- 5200
- Structural Rating
- 10
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (2)

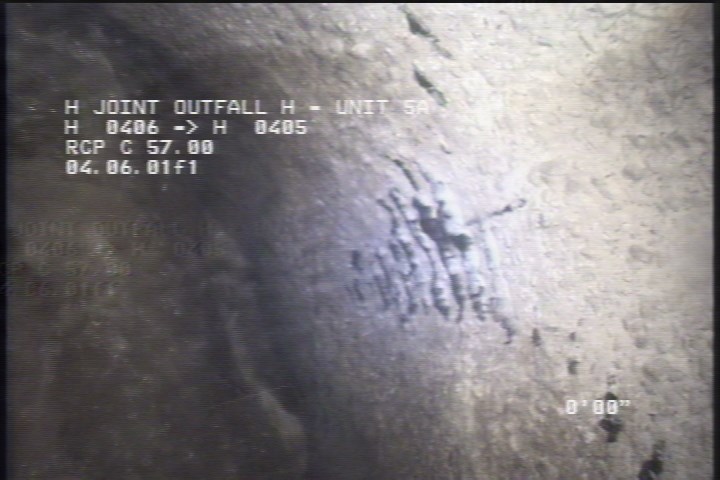

2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES

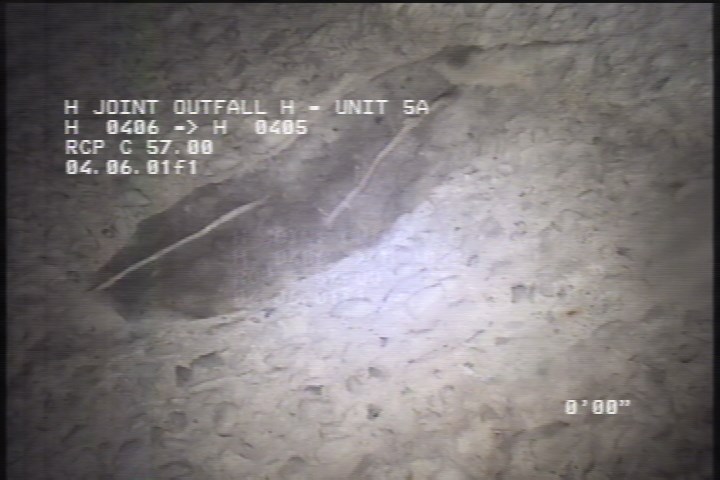

2 ft. - Surface Missing Wall, at 12 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | S/E BARREL |
| 2 | SRC | — |
| 2 | SMW | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | MSA | VIEW OF THE DOWNLEG OF THE S/E BARREL |
Properties (5)
- additional_info
- LOOKING AT THE DOWNLEG OF THE S/E BARREL
- custom_field_three
- MISSING WALL/HOLE
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2018-09-28T13:16:30-07:00
