Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2018, 08:56 AM

  • 16 0312_16 0311_9282018_024941.mp4

Date
09/28/2018
W/O
07229304
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13363
Time
1:56 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0990
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
ALHAMBRA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20180928MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
16 0312
Downstream MH
16 0311
Dir. of Survey
Downstream
Length Surveyed
176.3 ft.
Total Length
176.3 ft.
Structural Index
2
Structural Quick
342B
Structural Rating
44
O&M Index
3
O&M Quick
3222
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
54
Pipe schematic from manhole 16 0312 to 16 0311
MH: 16 0312MH: 16 0311downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 2:45AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft.2.6 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE8 ft. MGO - General Observation - 18" VCP9.2 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - H10.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open16.2 ft. MGP - General Photograph - HAIRLINE SURFACE FRACTURES16.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, - WHITE FLAKING-HAIRLINELINE SUFACE FRACTURES42.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL42.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H48.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped52.7 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL68.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H73.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL77.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H87.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H90.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H93.4 ft. RML - Roots Medium Lateral, from 01 to 05 o'clock, 20 %, within 8 inches of joint: YES93.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active-95% ROOTS101.8 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS108.5 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H115.7 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H118.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H122.5 ft. RMJ - Roots Medium Joint, from 08 to 10 o'clock, 5 %, within 8 inches of joint: YESR126 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H131 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H133.6 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H135.8 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H143.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H146.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H149.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open151.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped176.3 ft. AMH - Downstream Manhole, Survey Ends - 3:20AM

Observation photos (4)

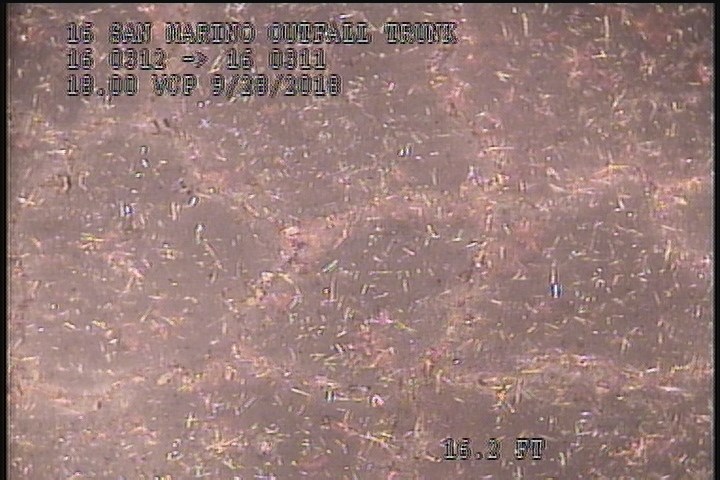

  • General Photograph - HAIRLINE SURFACE FRACTURES

    16.2 ft. - General Photograph - HAIRLINE SURFACE FRACTURES

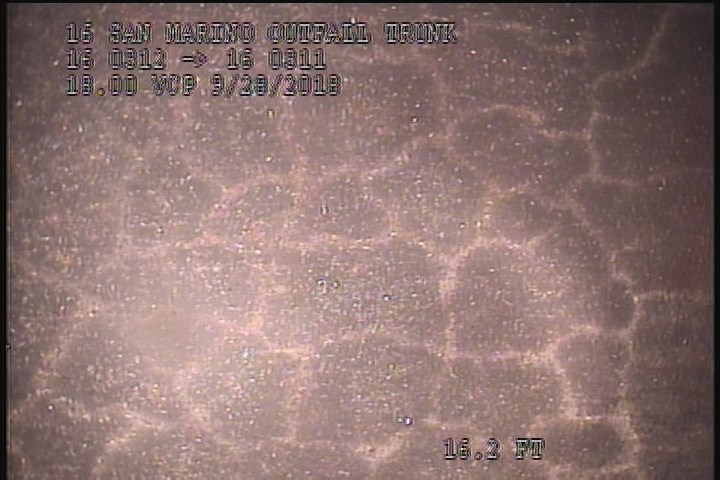

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, - WHITE FLAKING-HAIRLINELINE SUFACE FRACTURES

    16.2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, - WHITE FLAKING-HAIRLINELINE SUFACE FRACTURES

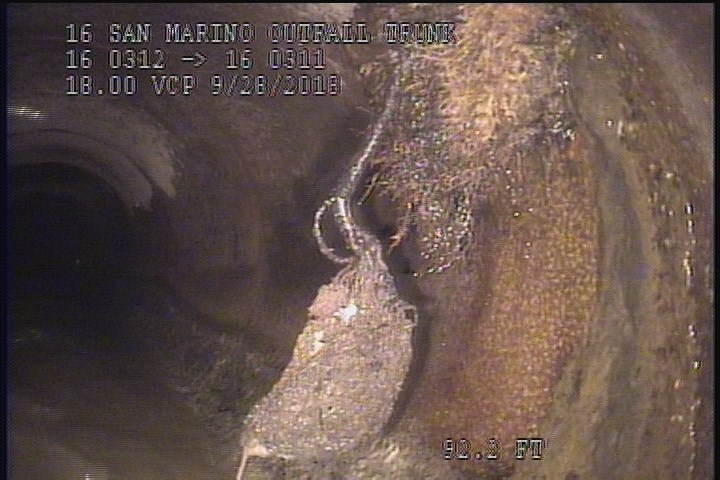

  • Roots Medium Lateral, from 01 to 05 o'clock, 20 %, within 8 inches of joint: YES

    93.4 ft. - Roots Medium Lateral, from 01 to 05 o'clock, 20 %, within 8 inches of joint: YES

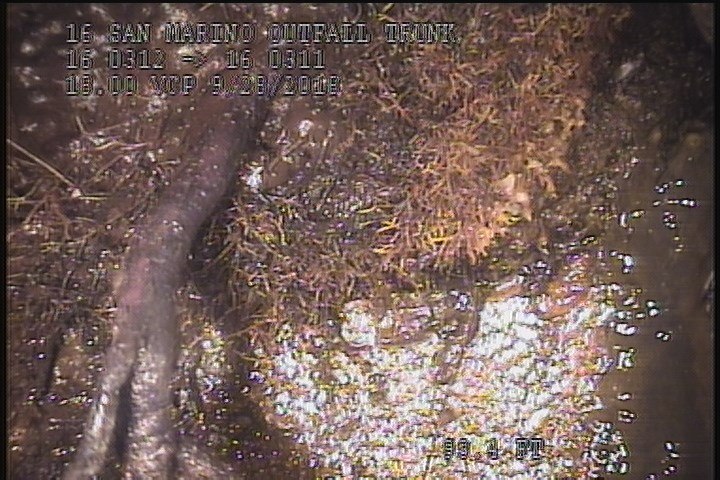

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active-95% ROOTS

    93.4 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active-95% ROOTS

All inspections of P13363Work order 07229304

Observations (37)

DistanceCodeObservation
48.8TFCCapped
68.3FLH
108.5FCH
126FCH
77.6FCH
87.7FLH
4FCHAIRLINE
149.5TFOpen
146.2FLH
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
42.7FCSL
42.7FCH
52.7FCSL
0AMH2:45AM
9.2FCH
73.1FCSL
176.3AMH3:20AM
2.6TFCCapped
93.4RML—
135.8FCH
8MGO18" VCP
93.4TFDActive-95% ROOTS
118.3FCH
16.2MGPHAIRLINE SURFACE FRACTURES
0MWL—
122.5RMJ—
0——
133.6FCH
115.7FCH
16.2SSSWHITE FLAKING-HAIRLINELINE SUFACE FRACTURES
101.8TFDOpen-90% ROOTS
151.9TFCCapped
131FCH
10.3TFOpen
90.5FCH
143.6FLH

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-09-28T01:56:30-07:00
