Wastewater/Activity/PacpInspection/1.0Dec 29, 2017, 08:00 AM
08 0028_08 0557 _29122017_011326.mp4
- Date
- 12/29/2017
- W/O
- 679275
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00016
- PipeID
- P00030
- Time
- 12:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5298
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_679275_TV08116_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0028
- Downstream MH
- 08 0557
- Dir. of Survey
- Downstream
- Length Surveyed
- 177.4 ft.
- Total Length
- 177.4 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 108
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 68
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 176
Observation photos (2)

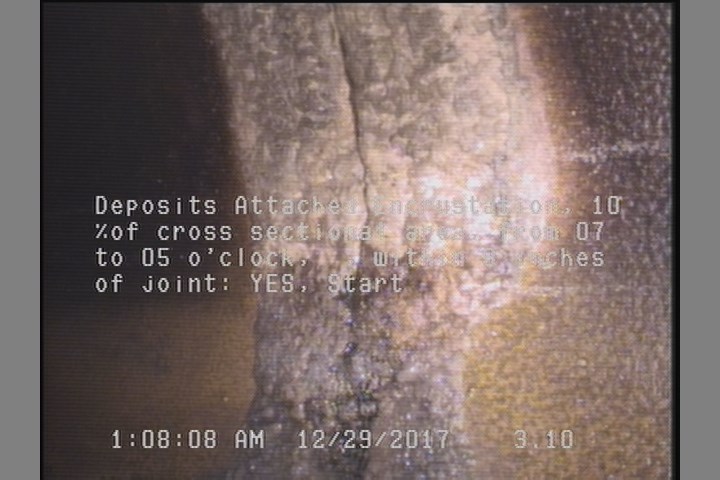

3.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

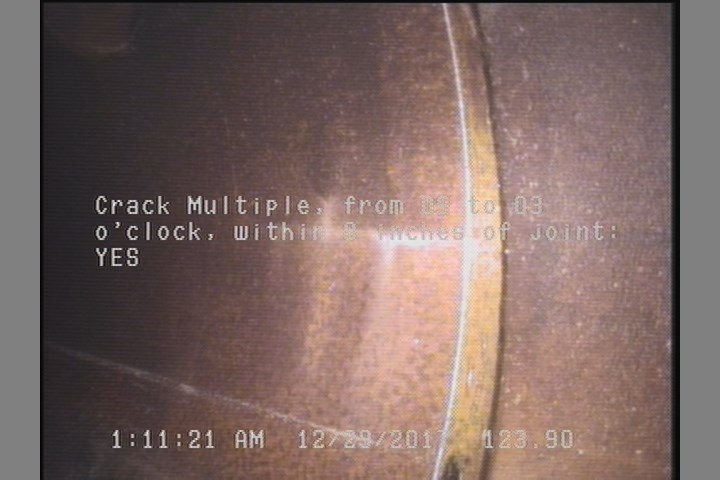

123.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 177.4 | AMH | 08 0557 |
| 0 | MWL | — |
| 123.9 | CM | — |
| 0 | AMH | 08 0028 |
| 123.9 | TFC | — |
| 175 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 2 | CM | — |
| 3.1 | DAE | — |
| 176 | CM | — |
| 0 | MWM | — |
| 175.2 | DAE | — |
Properties (4)
- additional_info
- SC346772
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-29T00:00:43-08:00
