Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 27, 2017, 08:36 AM

  • 08 0077_08 0076 _27122017_004840.mp4

Date
12/27/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00079
Time
12:36 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5296
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0076
Downstream MH
08 0077
Dir. of Survey
Upstream
Length Surveyed
257.4 ft.
Total Length
257.4 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
129
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
132
Pipe schematic from manhole 08 0076 to 08 0077
MH: 08 0076MH: 08 0077upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 00770 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish32.5 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES86.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"138.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"189.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"215.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start241.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"257.4 ft. AMH - Downstream Manhole, Survey Begins - 08 0076257.4 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK257.4 ft. MWL - Water Level, 10 %of cross sectional area257.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK257.4 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

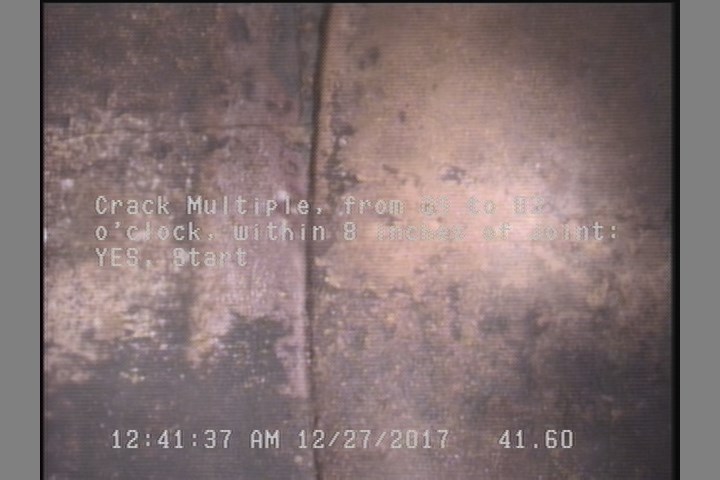

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    41.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

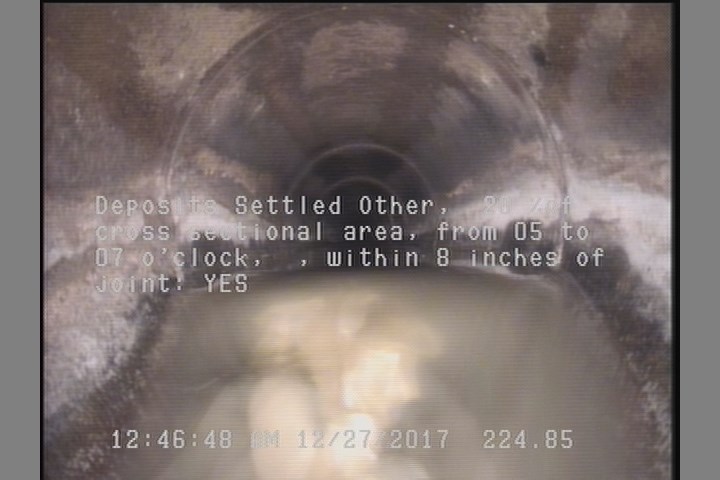

  • Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

    224.9 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

All inspections of P00079Work order 679275

Observations (14)

DistanceCodeObservation
0AMH08 0076
170.7TFC—
0MGOCONNECTION AT MH 6 O'CLOCK
0MWL—
41.6CM—
119TFC—
224.9DSZ—
67.6TFC—
257.4AMH08 0077
257.4MGOCONNECTION AT MH 3 O'CLOCK
16.1TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
257.4CM—
0MWM—

Properties (4)

additional_info
SC346770
custom_field_two
3
customer
LACSD
datetime
2017-12-27T00:36:01-08:00
