Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 29, 2017, 06:47 AM

  • 08 0041_08 0040 _28122017_225749.mp4

Date
12/28/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00043
Time
10:47 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5298
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
08 0041
Downstream MH
08 0040
Dir. of Survey
Downstream
Length Surveyed
312.4 ft.
Total Length
312.4 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 08 0041 to 08 0040
MH: 08 0041MH: 08 0040downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 00410 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start14.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"65.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"98.8 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES105.5 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES113.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"162.6 ft. RFB - Roots Fine Barrell, at 02 o'clock167.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"215.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"263.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"307.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish310 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK312.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK312.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK312.4 ft. AMH - Downstream Manhole, Survey Ends - 08 0040

Observation photos (2)

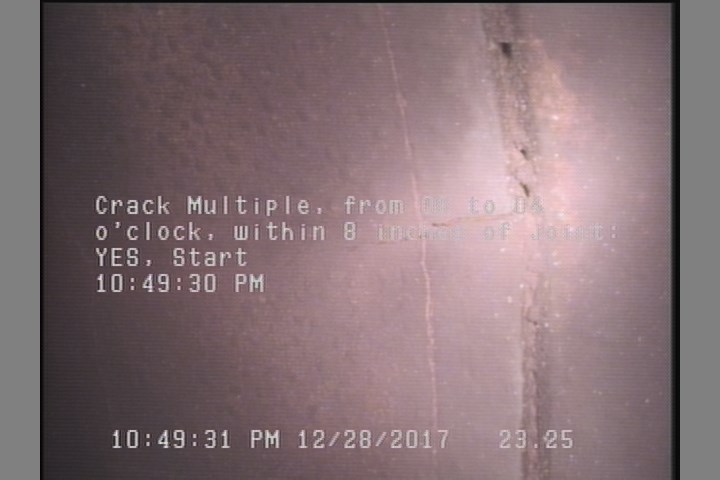

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

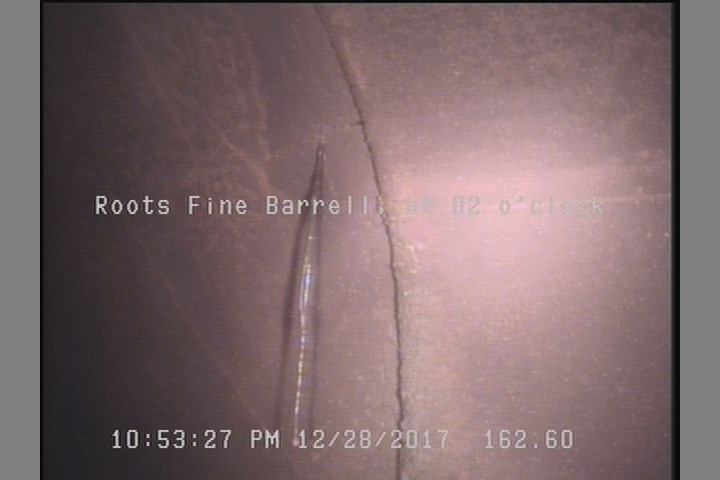

  • Roots Fine Barrell, at 02 o'clock

    162.6 ft. - Roots Fine Barrell, at 02 o'clock

All inspections of P00043Work order 679275

Observations (18)

DistanceCodeObservation
167.5TFC—
307.3CM—
2CM—
0AMH08 0041
310MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
0MWM—
105.5RFJ—
312.4MGOCONNECTION AT MH 3 O'CLOCK
65.4TFC—
113.5TFA—
162.6RFB—
0MWL—
98.8RFJ—
263.6TFC—
312.4MGOCONNECTION AT MH 9 O'CLOCK
14.5TFC—
312.4AMH08 0040
215.9TFC—

Properties (4)

additional_info
SC346772
custom_field_two
3
customer
LACSD
datetime
2017-12-28T22:47:25-08:00
