Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2018, 10:48 AM

  • 02 2203_02 2202_9282018_051224.mp4

Date
09/28/2018
W/O
0731794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00253
PipeID
P18905
Time
3:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0991
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION RELIEF TRUNK
City
DOWNRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
30
Purpose
Routine Assessment
Project
2080928MDM_DOWNEY_BELLFLOWER_DIVERSION_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 2203
Downstream MH
02 2202
Dir. of Survey
Downstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 02 2203 to 02 2202
MH: 02 2203MH: 02 2202downstream0 ft. MWL - Water Level, 80 %of cross sectional area0 ft. MWM - Water Mark, 100 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM3 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON S/E

Observation photos (2)

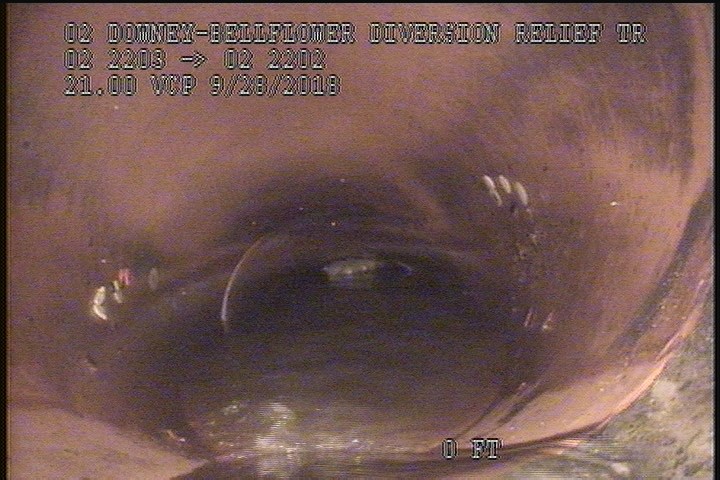

  • Water Level, 80 %of cross sectional area

    0 ft. - Water Level, 80 %of cross sectional area

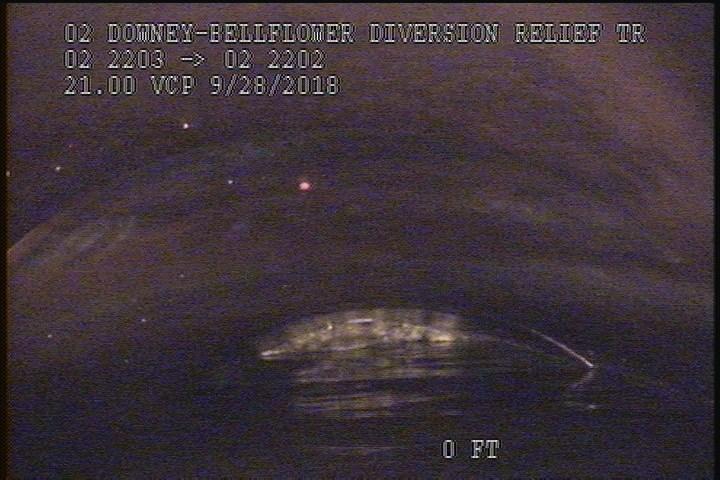

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON S/E

    3 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON S/E

All inspections of P18905Work order 0731794

Observations (4)

DistanceCodeObservation
0MWL—
0MWM—
3MSADOWNLEG UPSTREAM SIPHON S/E
0AMH5:20AM

Properties (4)

additional_info
DOWNLEG UPSTREAM SIPHON S/E BARREL
custom_field_two
4
customer
LACSD
datetime
2018-09-28T03:48:05-07:00
