Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 05:21 PM

  • A 0181_A 0180_9272018_112830.mp4

Date
09/27/2018
W/O
0731413
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08117
Time
10:21 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7820
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
32
Purpose
Routine Assessment
Project
20180927DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
78 in.
Upstream MH
A 0181
Downstream MH
A 0180
Dir. of Survey
Downstream
Length Surveyed
987.6 ft.
Total Length
987.6 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0181 to A 0180
MH: A 0181MH: A 0180downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:25 AM0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start162.5 ft. MGP - General Photograph364 ft. MGP - General Photograph552 ft. MGP - General Photograph791.8 ft. MGP - General Photograph985.7 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish985.7 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach985.7 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)985.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish985.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish985.7 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG987.6 ft. AMH - Downstream Manhole, Survey Ends - 12:37 PM

Observation photos (8)

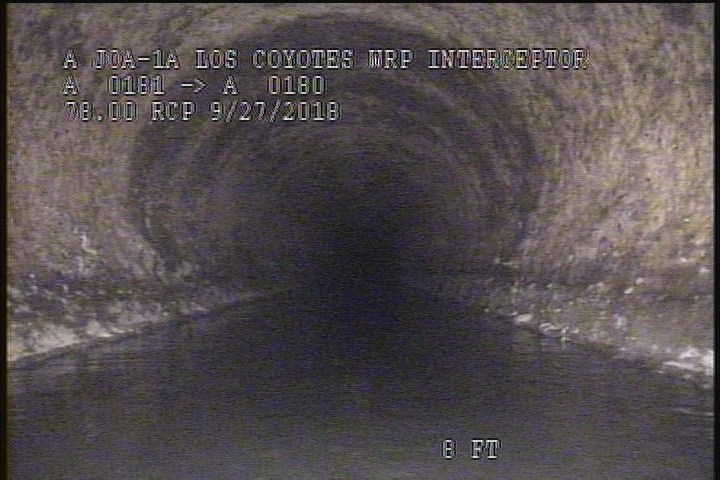

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

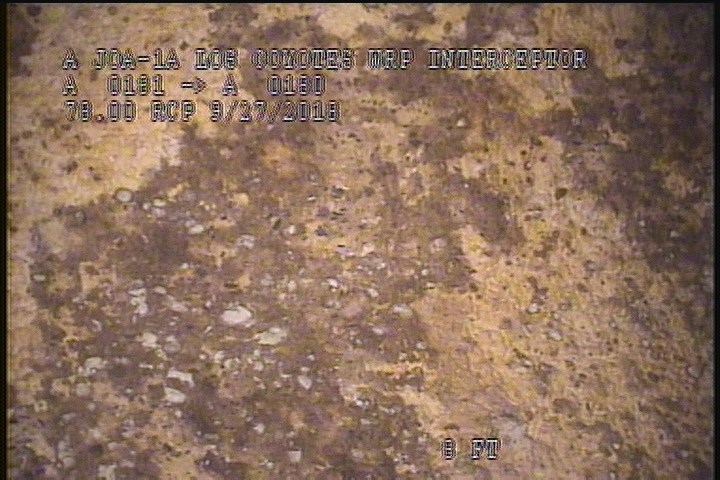

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

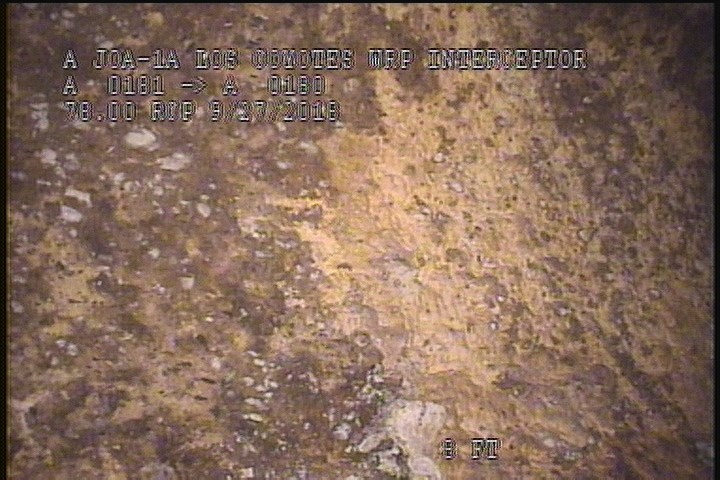

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

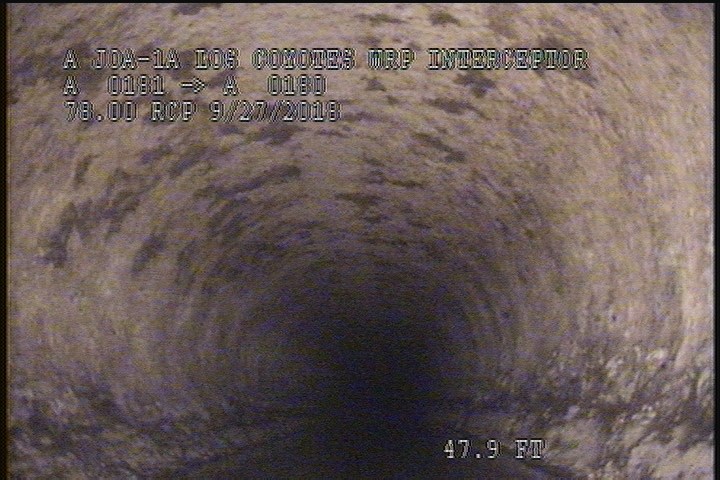

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    47.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

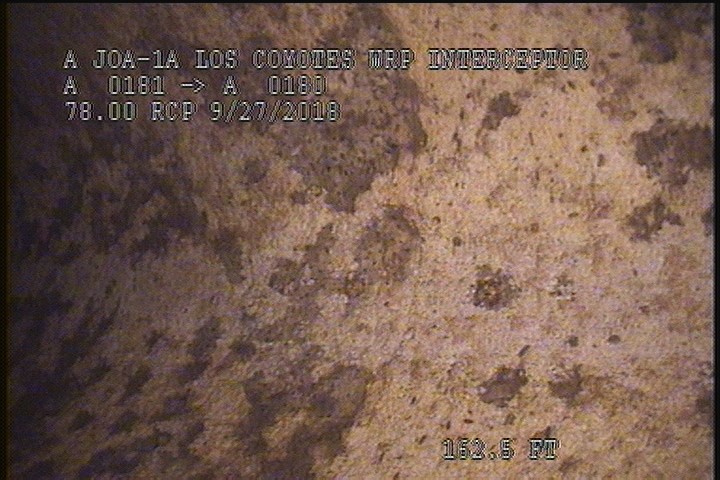

  • General Photograph

    162.5 ft. - General Photograph

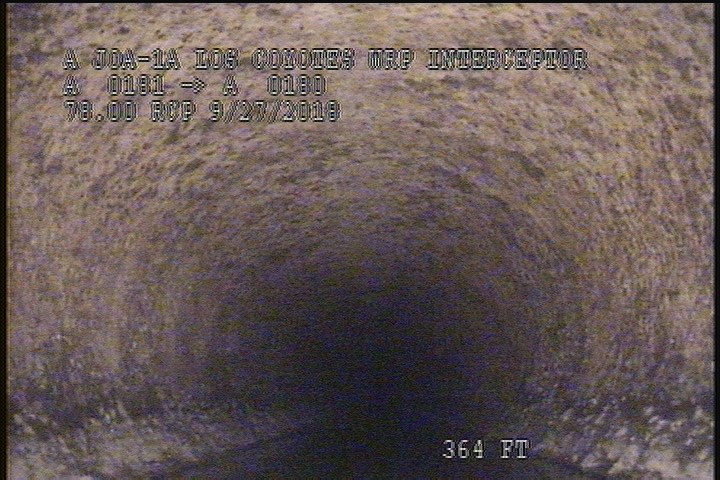

  • General Photograph

    364 ft. - General Photograph

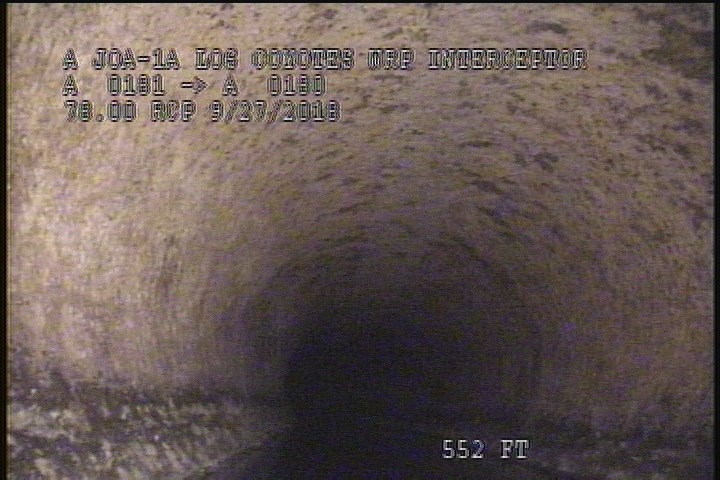

  • General Photograph

    552 ft. - General Photograph

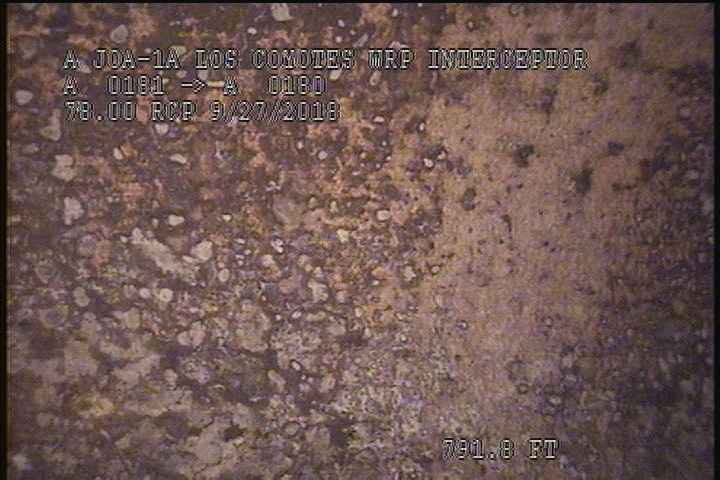

  • General Photograph

    791.8 ft. - General Photograph

All inspections of P08117Work order 0731413

Observations (18)

DistanceCodeObservation
791.8MGP—
0AMH10:25 AM
987.6AMH12:37 PM
985.7SRV—
985.7MGOPeeling & Flaking Throughout The Reach
552MGP—
2SZ75% MAG
0.1MWM—
2SAV—
985.7MGOGREASE THROUGHOUT THE REACH (5%)
0.1MWL—
985.7SAV—
2SSS—
364MGP—
47.9SRV—
985.7SSS—
985.7SZ75% MAG
162.5MGP—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2018-09-27T10:21:29-07:00
year_laid
19761015
