Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2018, 07:36 AM

  • 22 0522_22 0521_9262018_005035.mp4

Date
09/26/2018
W/O
0731412
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00791
PipeID
P16862
Time
12:36 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0985
Sewer Name
22 BEN LOMOND TRUNK
City
COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
26
Purpose
Maintenance Related
Project
20180926MDM_BEN_LOMOND_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0522
Downstream MH
22 0521
Dir. of Survey
Downstream
Length Surveyed
121.8 ft.
Total Length
121.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 22 0522 to 22 0521
MH: 22 0522MH: 22 0521downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWL - Water Level, 10 %of cross sectional area12.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB- OLD CONN16.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped-OLD CONN.64.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped-OLD CONN69.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped-OLD CONN114.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped-OLD CONN.118.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped-OLD CONN.121.4 ft. MGO - General Observation - NEW MH CONN 3:00121.5 ft. MGP - General Photograph - NEW MH CONN 3:00121.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN NEW CONN121.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active-OLD CONN121.8 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (3)

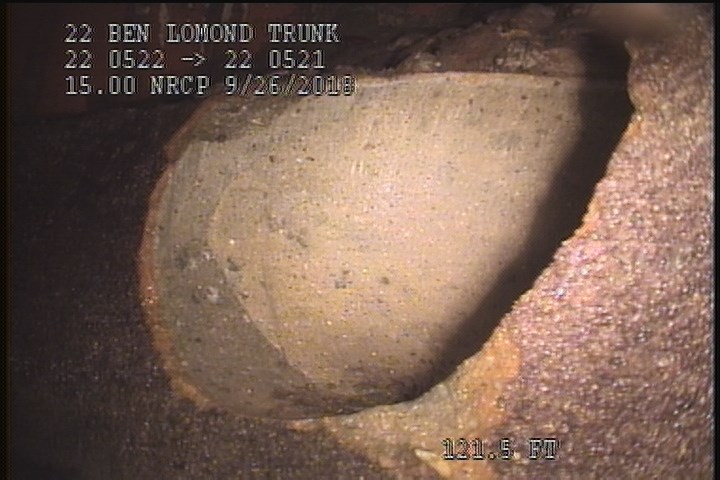

  • General Observation - NEW MH CONN 3:00

    121.4 ft. - General Observation - NEW MH CONN 3:00

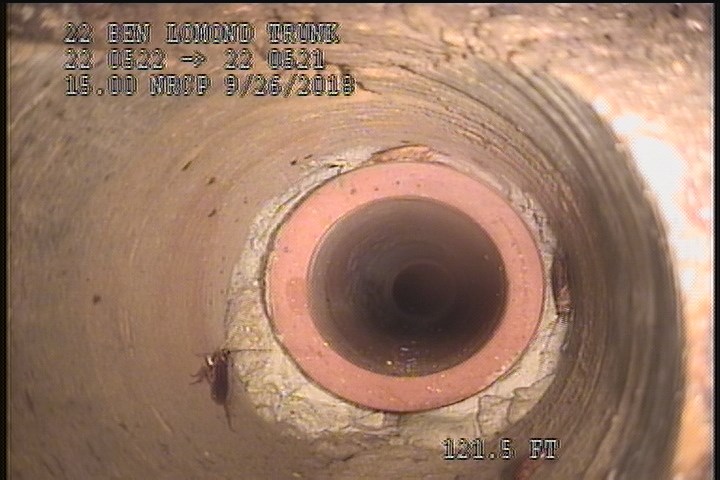

  • General Photograph - NEW MH CONN 3:00

    121.5 ft. - General Photograph - NEW MH CONN 3:00

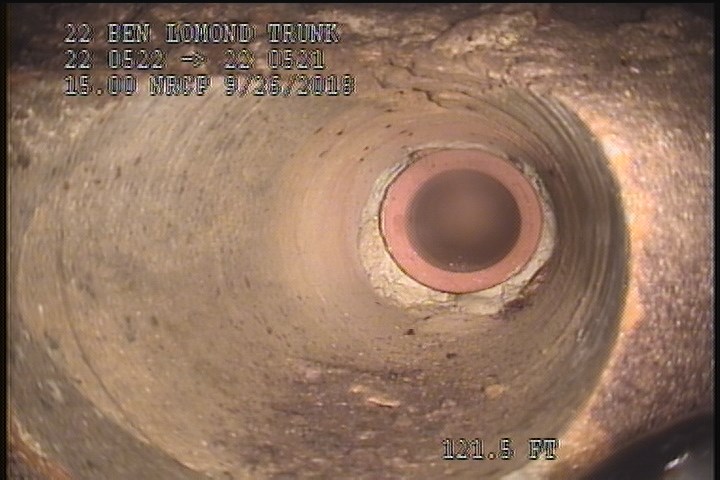

  • General Observation - Conn. @ Mh, 3 O' Clock. OPEN NEW CONN

    121.5 ft. - General Observation - Conn. @ Mh, 3 O' Clock. OPEN NEW CONN

All inspections of P16862Work order 0731412

Observations (14)

DistanceCodeObservation
69.1TFCCapped-OLD CONN
12.2TFCSTUB- OLD CONN
0MWM—
0AMH12:45AM
16.1TFCCapped-OLD CONN.
0MWL—
64.7TFCCapped-OLD CONN
121.8AMH1:05AM
121.5MGPNEW MH CONN 3:00
118.2TFCCapped-OLD CONN.
121.5MGOConn. @ Mh, 3 O' Clock. OPEN NEW CONN
121.4MGONEW MH CONN 3:00
121.5MGOConn. @ Mh, 9 O' Clock. Active-OLD CONN
114.2TFCCapped-OLD CONN.

Properties (3)

additional_info
NEW BREAK-IN CONN. ONLY
customer
LACSD
datetime
2018-09-26T00:36:01-07:00
