Wastewater/Activity/PacpInspection/1.0Sep 25, 2018, 05:55 PM
B 0075_B 0074_9252018_110457.mp4
- Date
- 09/25/2018
- W/O
- 0731217
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00074
- PipeID
- P08545
- Time
- 10:55 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0984
- Sewer Name
- B JOINT OUTFALL B - UNIT 1C
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 01
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180925SHO_JOINT_OUTFALL_B_UNIT_1C
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- B 0075
- Downstream MH
- B 0074
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

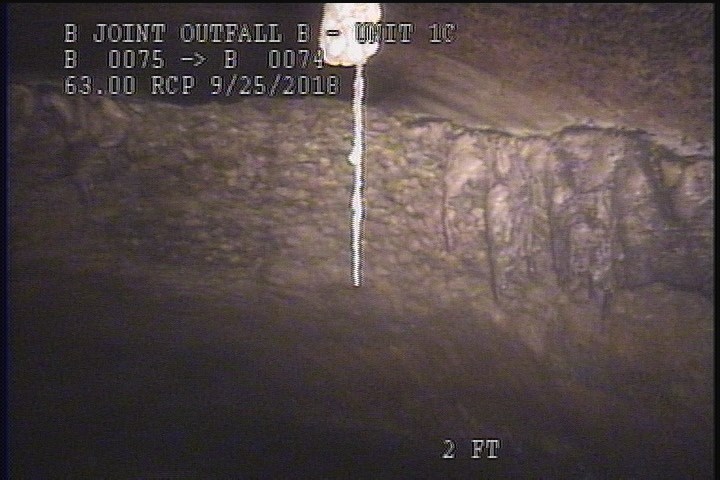

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

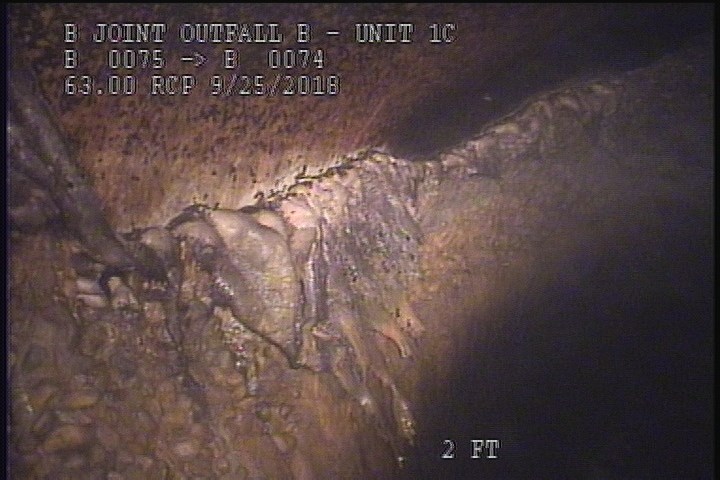

2 ft. - Deposits Attached Ragging, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

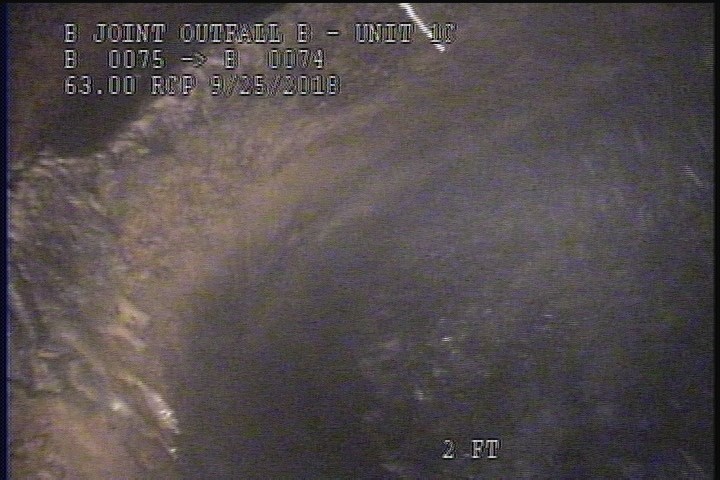

2 ft. - Survey Abandoned - VIEW OF THE DOWNLEG OF THE SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | DAR | — |
| 0 | AMH | B 0075 |
| 2 | MSA | VIEW OF THE DOWNLEG OF THE SIPHON |
Properties (5)
- additional_info
- RFIR, DOWNLEG OF THE SIPHON
- custom_field_three
- PROJECTING AGGREGATE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-25T10:55:14-07:00
