Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2018, 05:08 PM

  • A 0206_A 0205_9262018_104211.mp4

Date
09/26/2018
W/O
0731413
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08142
Time
10:08 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7819
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
DOWNEY
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20180925DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
A 0205
Downstream MH
A 0206
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0205 to A 0206
MH: A 0205MH: A 0206upstream0 ft. MSA - Survey Abandoned - 10:47 AM0.1 ft. LU - Alignment Up, 45 %0.1 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach0.1 ft. MGP - General Photograph0.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG2.1 ft. MWL - Water Level, 5 %of cross sectional area2.1 ft. MWM - Water Mark, 5 %of cross sectional area2.1 ft. MGP - General Photograph - AIRLINE2.1 ft. AMH - Downstream Manhole, Survey Begins - 10:30 AM

Observation photos (8)

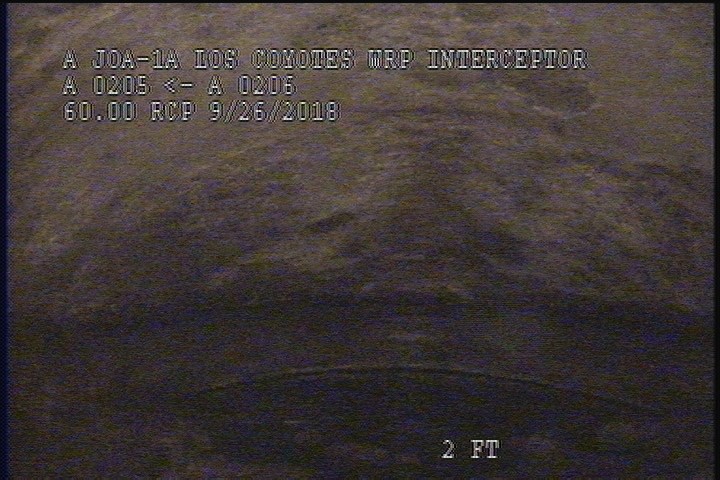

  • Water Level, 5 %of cross sectional area

    0 ft. - Water Level, 5 %of cross sectional area

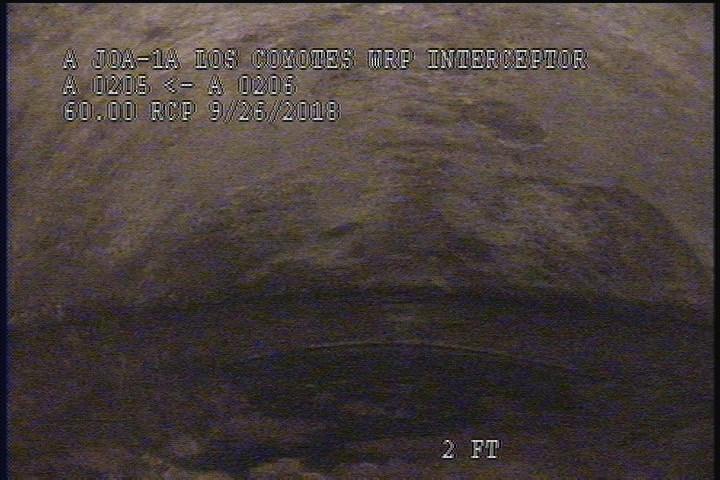

  • Water Mark, 5 %of cross sectional area

    0 ft. - Water Mark, 5 %of cross sectional area

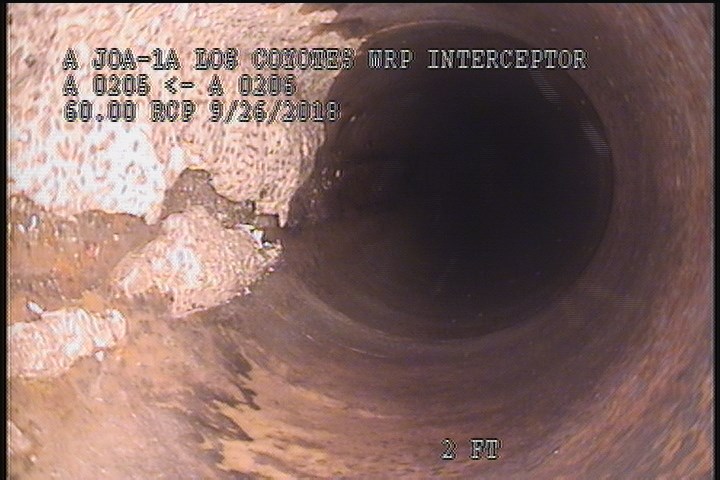

  • General Photograph - AIRLINE

    0 ft. - General Photograph - AIRLINE

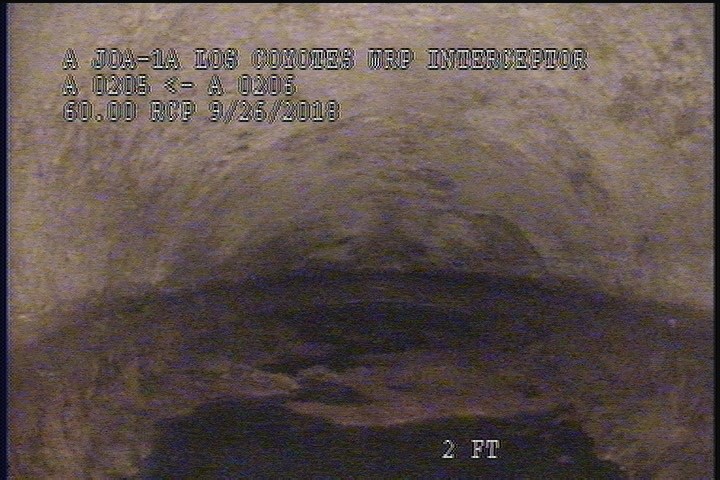

  • Alignment Up, 45 %

    2 ft. - Alignment Up, 45 %

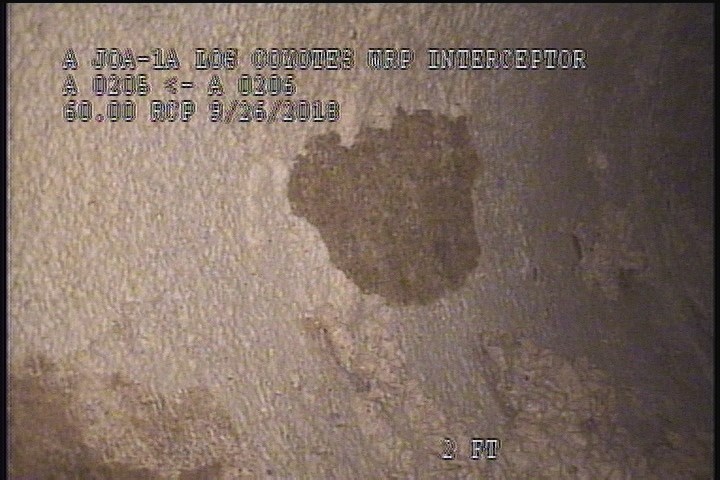

  • General Observation - Peeling & Flaking Throughout The Reach

    2 ft. - General Observation - Peeling & Flaking Throughout The Reach

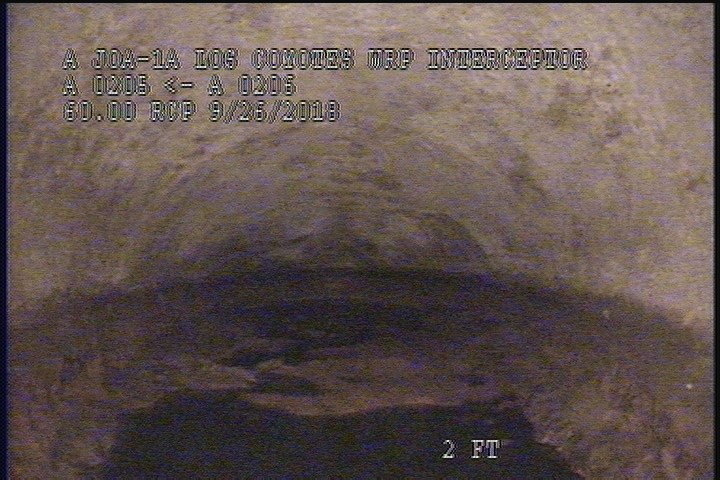

  • General Photograph

    2 ft. - General Photograph

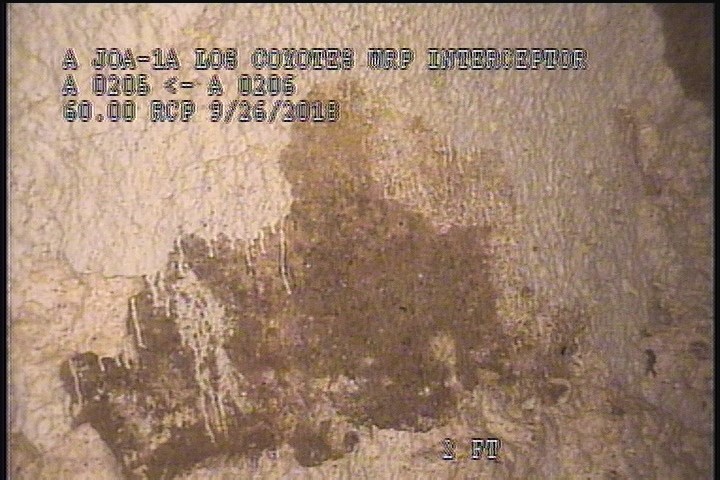

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

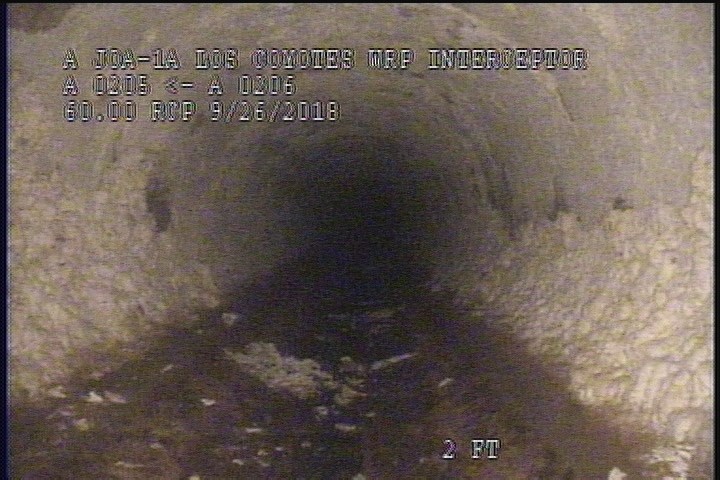

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG

All inspections of P08142Work order 0731413

Observations (10)

DistanceCodeObservation
2LU—
2MGOPeeling & Flaking Throughout The Reach
2MGP—
0MWL—
2.1MSA10:47 AM
2SAV—
2SZ85% MAG
0MWM—
0MGPAIRLINE
0AMH10:30 AM

Properties (3)

additional_info
VIEW OF THE UPLEG FROM D/S SIPHON
customer
LACSD
datetime
2018-09-26T10:08:12-07:00
