Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2018, 05:02 PM

  • A 0206_A 0205_9262018_103437.mp4

Date
09/26/2018
W/O
0731413
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08142
Time
10:02 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7819
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
DOWNEY
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20180925DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
A 0206
Downstream MH
A 0205
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole A 0206 to A 0205
MH: A 0206MH: A 0205downstream0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MGP - General Photograph0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:07 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG2 ft. LD - Alignment Down, 45 %2 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach2.1 ft. MSA - Survey Abandoned - 10:24 AM

Observation photos (7)

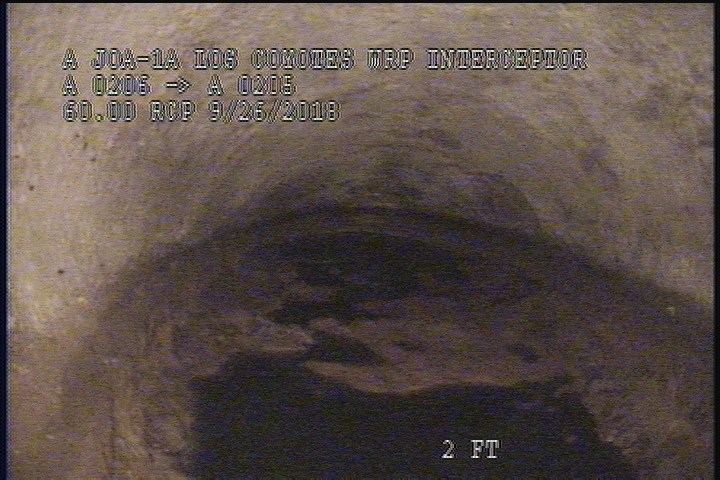

  • Water Mark, 5 %of cross sectional area

    0 ft. - Water Mark, 5 %of cross sectional area

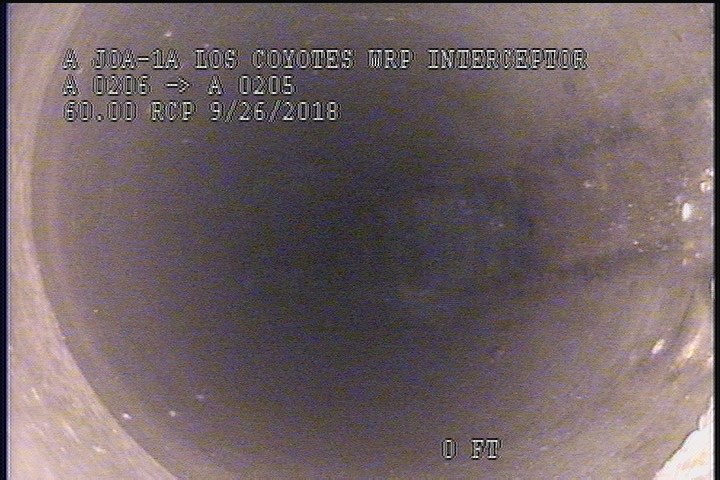

  • General Photograph

    0 ft. - General Photograph

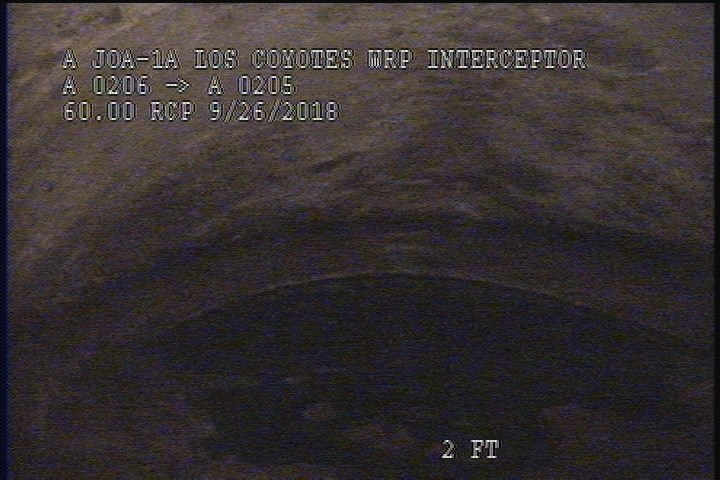

  • Water Level, 5 %of cross sectional area

    0 ft. - Water Level, 5 %of cross sectional area

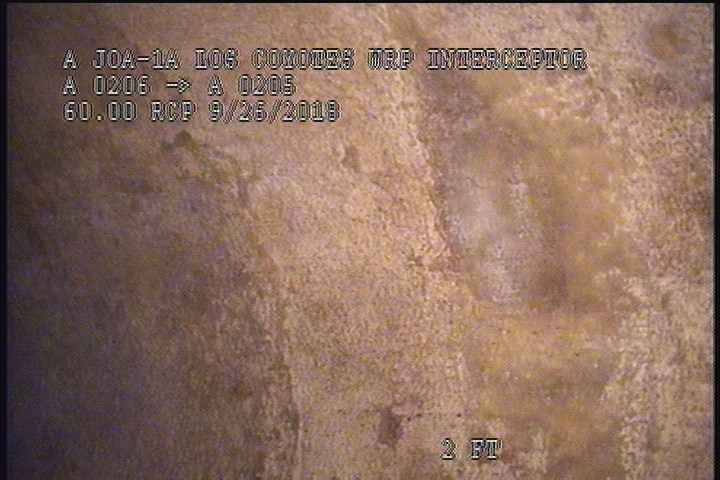

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

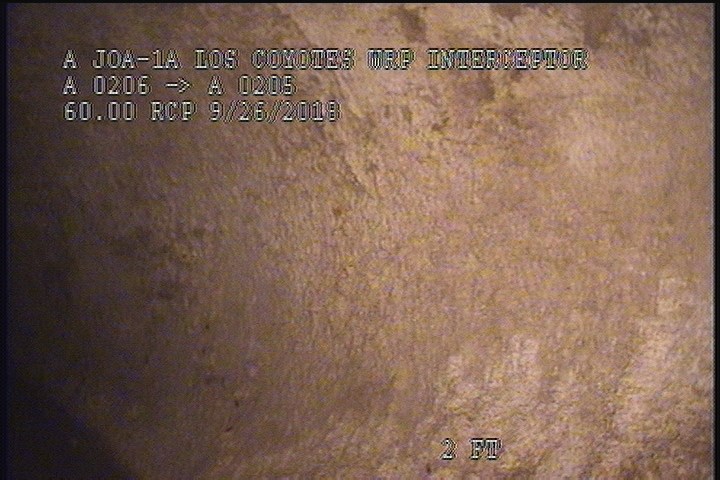

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG

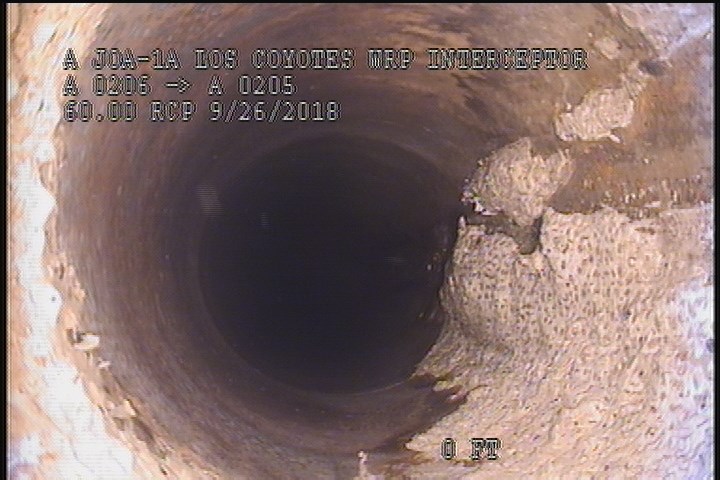

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

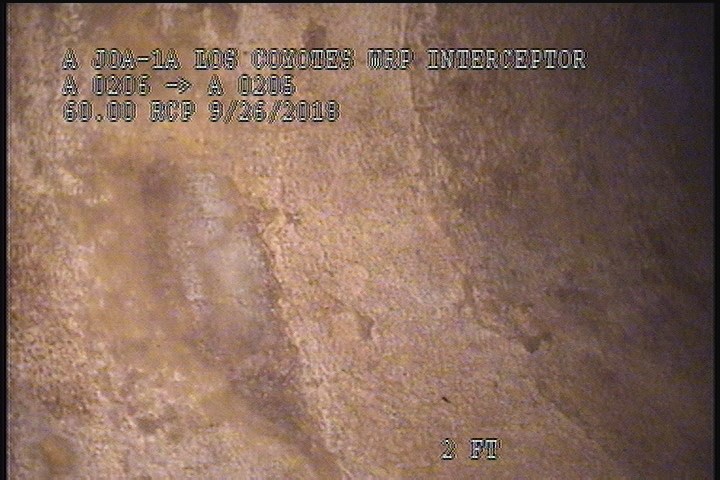

  • General Observation - Peeling & Flaking Throughout The Reach

    2 ft. - General Observation - Peeling & Flaking Throughout The Reach

All inspections of P08142Work order 0731413

Observations (9)

DistanceCodeObservation
2.1MSA10:24 AM
0MWM—
0MGP—
2SSS—
0MWL—
2SZ85% MAG
2LD—
0AMH10:07 AM
2MGOPeeling & Flaking Throughout The Reach

Properties (4)

additional_info
VIEW OF THE DOWNLEG FROM U/S SIPHON
custom_field_two
3
customer
LACSD
datetime
2018-09-26T10:02:29-07:00
