Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 25, 2018, 06:39 PM

  • A 0822_A 0439_9252018_124219.mp4

Date
09/25/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08162
Time
11:39 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7818
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
DOWNEY
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20180925DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
A 0439
Downstream MH
A 0822
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole A 0439 to A 0822
MH: A 0439MH: A 0822upstream0 ft. MSA - Survey Abandoned - 12:48 PM0.1 ft. LU - Alignment Up, 45 %0.1 ft. MGP - General Photograph0.1 ft. MGP - General Photograph0.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 35% MAG2.1 ft. MWM - Water Mark, 100 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - 12:41 AM2.1 ft. MWL - Water Level, 100 %of cross sectional area

Observation photos (6)

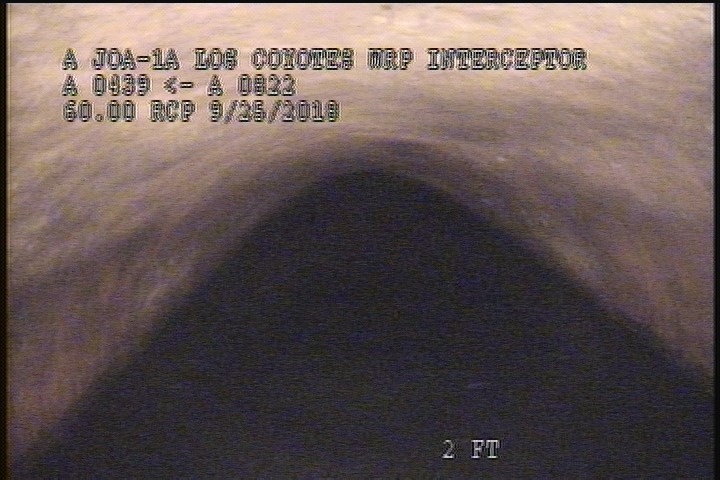

  • Downstream Manhole, Survey Begins - 12:41 AM

    0 ft. - Downstream Manhole, Survey Begins - 12:41 AM

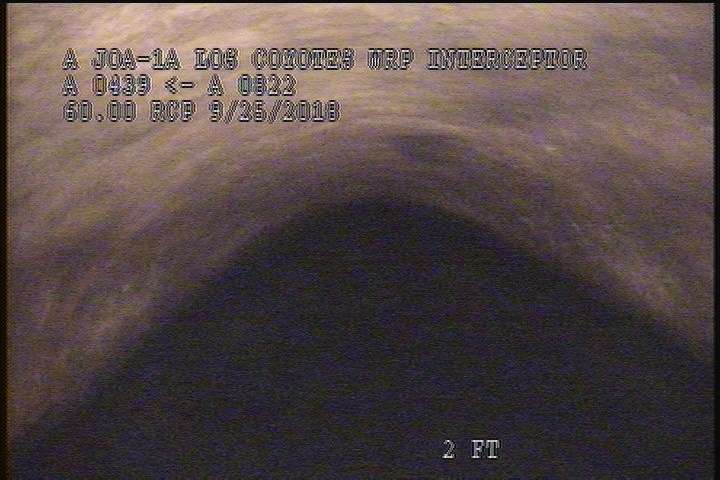

  • Alignment Up, 45 %

    2 ft. - Alignment Up, 45 %

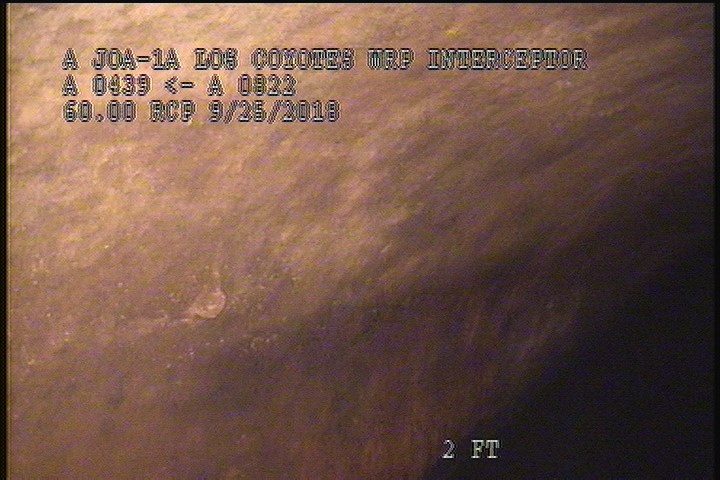

  • General Photograph

    2 ft. - General Photograph

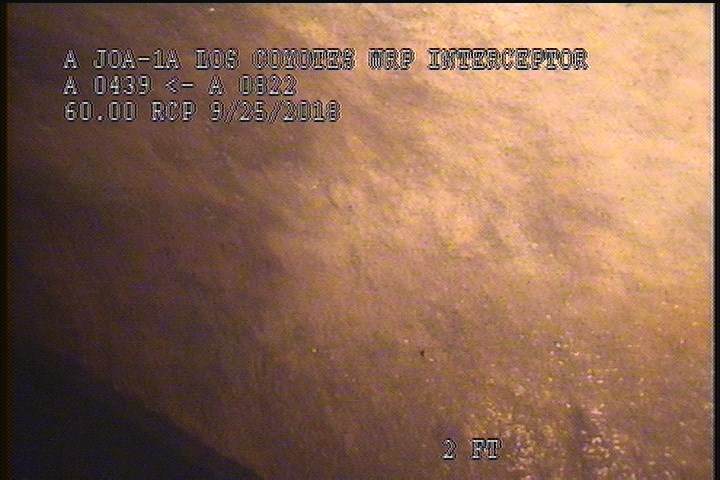

  • General Photograph

    2 ft. - General Photograph

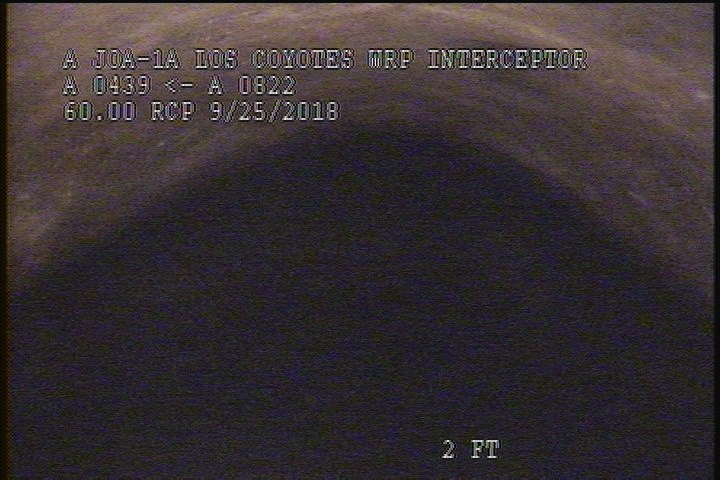

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

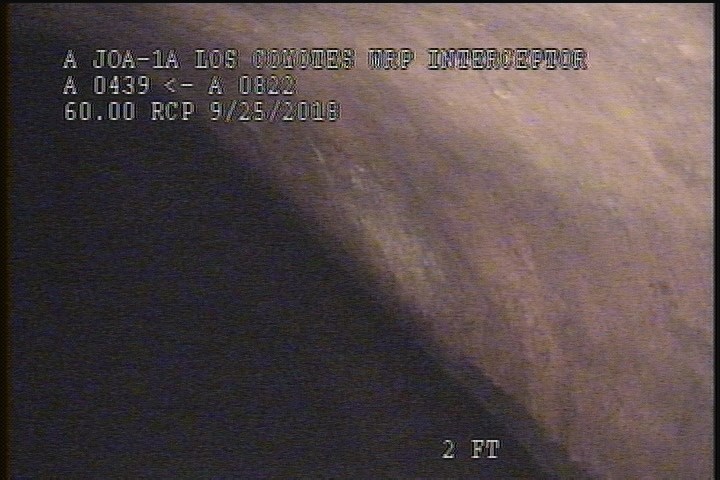

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 35% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 35% MAG

All inspections of P08162Work order PENDING

Observations (9)

DistanceCodeObservation
0MWM—
2LU—
2MGP—
0AMH12:41 AM
2MGP—
2SSS—
2.1MSA12:48 PM
0MWL—
2SZ35% MAG

Properties (4)

additional_info
VIEW OF THE UPLEG FROM THE D/S SIPHON
custom_field_two
1
customer
LACSD
datetime
2018-09-25T11:39:42-07:00
