Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 08:30 PM
B 0075_B 0074_9242018_134950.mp4
- Date
- 09/24/2018
- W/O
- 0731217
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00074
- PipeID
- P08545
- Time
- 1:30 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7817
- Sewer Name
- B JOINT OUTFALL B - UNIT 1C
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 01
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180924DF_JOINT_OUTFALL_B_UNIT_1C
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- B 0075
- Downstream MH
- B 0074
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (6)

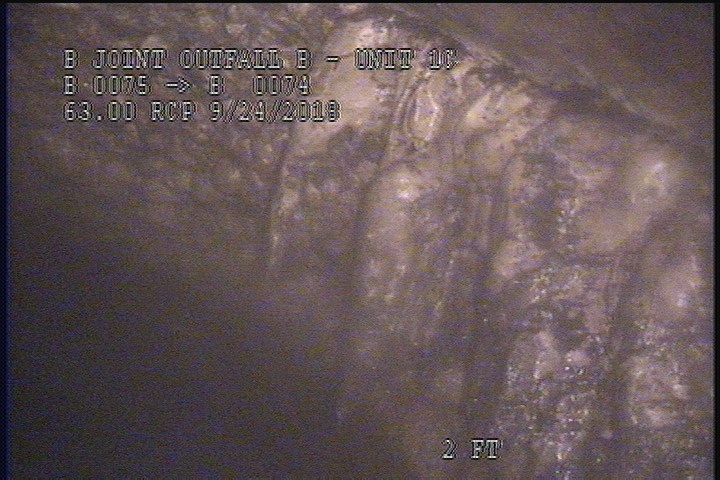

0.1 ft. - Water Mark, 100 %of cross sectional area

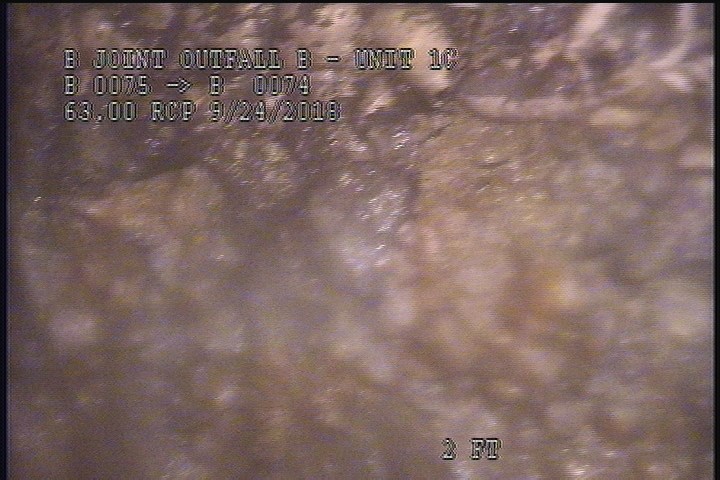

0.1 ft. - Water Level, 100 %of cross sectional area

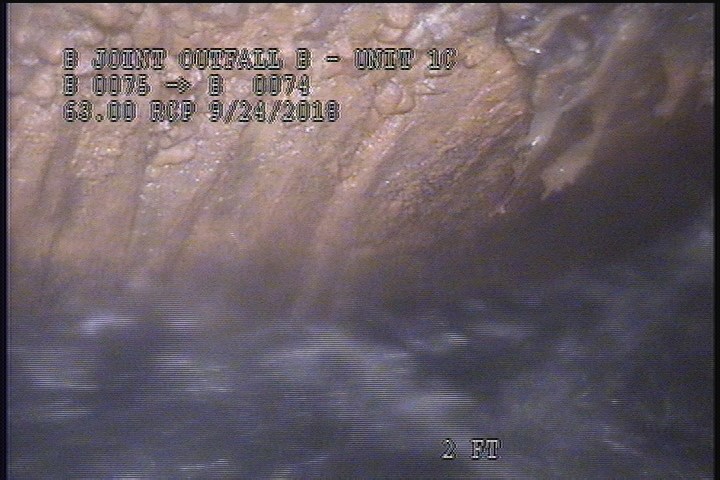

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

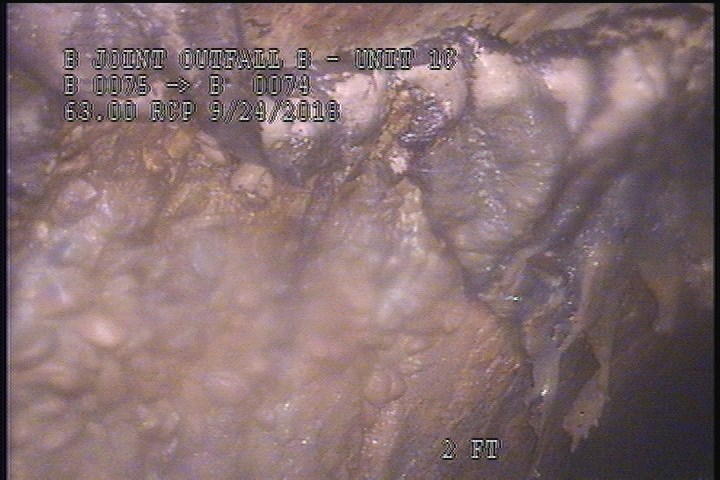

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 15% MAG

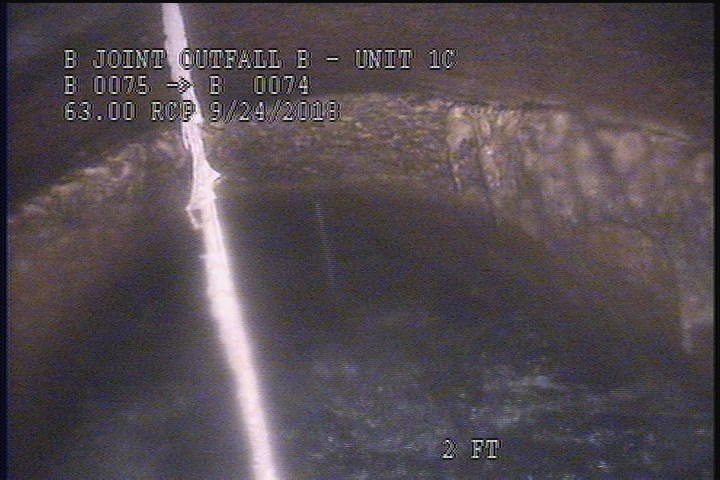

2 ft. - Alignment Down, 45 %

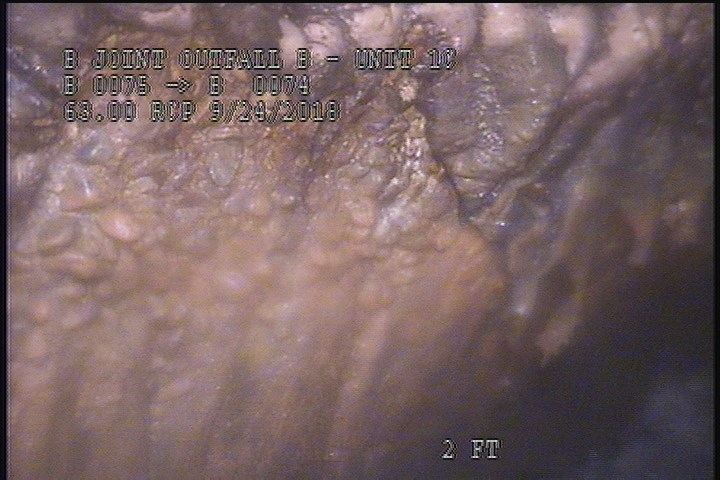

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 2.1 | MSA | HIGH WATER |
| 0.1 | MWM | — |
| 2 | SZ | 15% MAG |
| 2 | LD | — |
| 2 | SAV | — |
| 0 | AMH | 1:35 PM |
| 0.1 | MWL | — |
Properties (5)
- additional_info
- VIEW OF THE DOWNLEG FROM THE U/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-09-24T13:30:13-07:00
- year_laid
- 19910831
