Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 08:58 AM

  • 16 0333_16 0332_9272018_020903.mp4

Date
09/27/2018
W/O
0729304
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13384
Time
1:58 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0986
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20180921MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
20 in.
Upstream MH
16 0333
Downstream MH
16 0332
Dir. of Survey
Downstream
Length Surveyed
155.9 ft.
Total Length
155.9 ft.
Structural Index
2
Structural Quick
312A
Structural Rating
25
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 16 0333 to 16 0332
MH: 16 0333MH: 16 0332downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:05AM1.6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE3.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL9 ft. MGO - General Observation - 20" VCP14.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H35.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL45.7 ft. TBI - Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: YES, 6", 2" - Active45.8 ft. RMJ - Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR45.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL66.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H76.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H78.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H80.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H115.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H126.2 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H155.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active155.9 ft. AMH - Downstream Manhole, Survey Ends - 2:45AM

Observation photos (2)

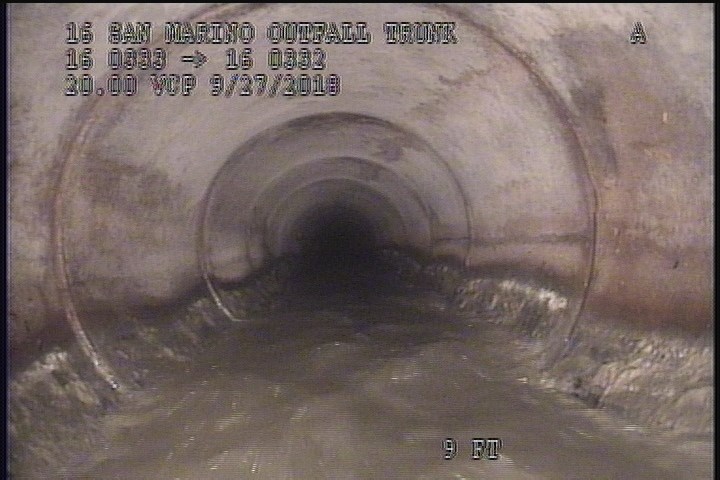

  • General Observation - 20" VCP

    9 ft. - General Observation - 20" VCP

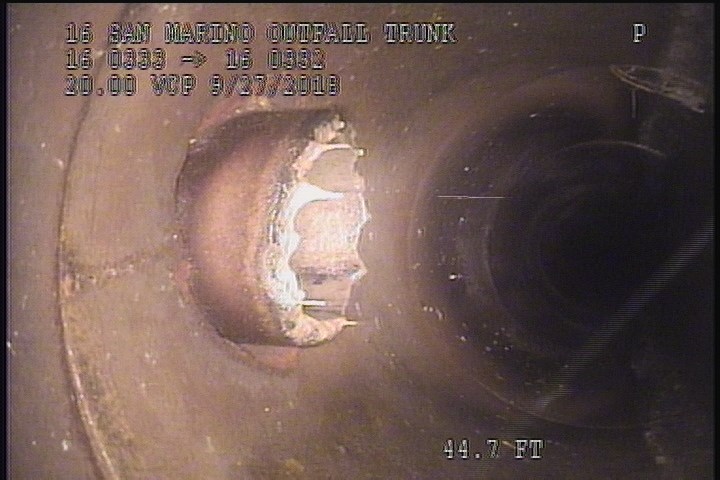

  • Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: YES, 6", 2" - Active

    45.7 ft. - Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: YES, 6", 2" - Active

All inspections of P13384Work order 0729304

Observations (20)

DistanceCodeObservation
155.9AMH2:45AM
80.6FCH
0MWL—
35.4FCSL
78.9FCH
45.8RMJ—
126.2FCH
9FCSL
45.7TBIActive
3.2FCSLIGHT
66.2FCH
1.6FCHAIRLINE
45.8FLSL
0MWM—
155.5MGOConn. @ Mh, 3 O' Clock. Active
9MGO20" VCP
14.8FCH
76.5FCH
115.7FCH
0AMH2:05AM

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-09-27T01:58:50-07:00
