Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 07:16 AM

  • 16 0335_16 0334_9272018_003858.mp4

Date
09/27/2018
W/O
0729304
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13386
Time
12:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0986
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20180921MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
16 0335
Downstream MH
16 0334
Dir. of Survey
Downstream
Length Surveyed
211.1 ft.
Total Length
211.1 ft.
Structural Index
2
Structural Quick
3225
Structural Rating
16
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 16 0335 to 16 0334
MH: 16 0335MH: 16 0334downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM8 ft. MGO - General Observation - 16" VCP58 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT58 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE80.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT99.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT101.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active107.7 ft. MGO - General Observation - WHITE MATERIAL ON PIPE108.1 ft. MGP - General Photograph - WHITE MATERIAL119.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H124.2 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H127.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL137.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL211.1 ft. AMH - Downstream Manhole, Survey Ends - 1:00AM

Observation photos (4)

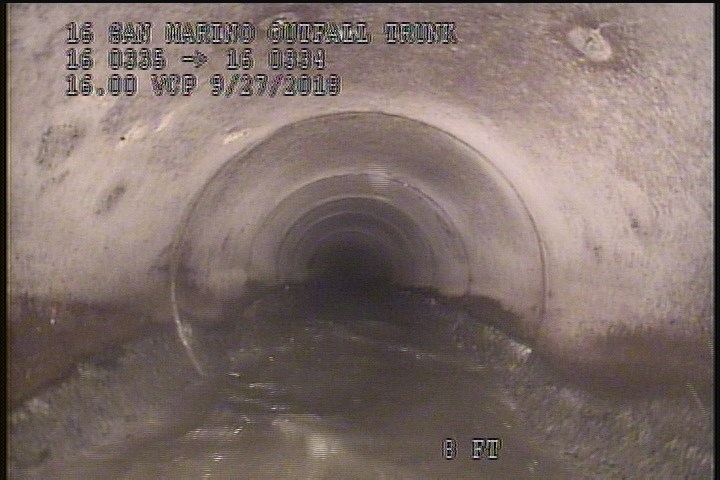

  • General Observation - 16" VCP

    8 ft. - General Observation - 16" VCP

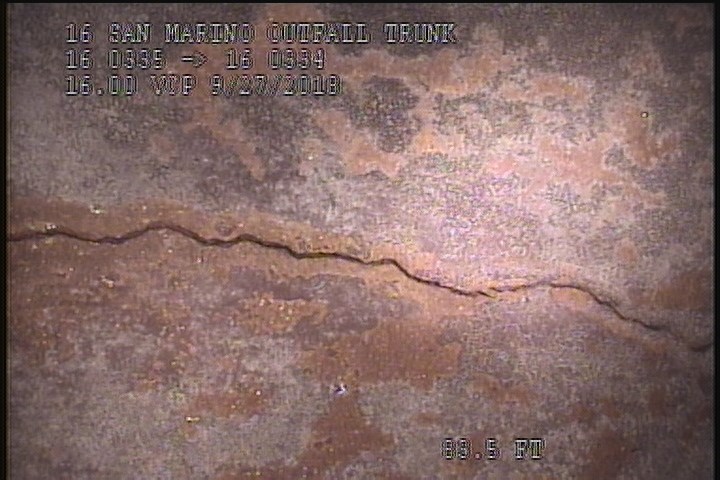

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    80.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

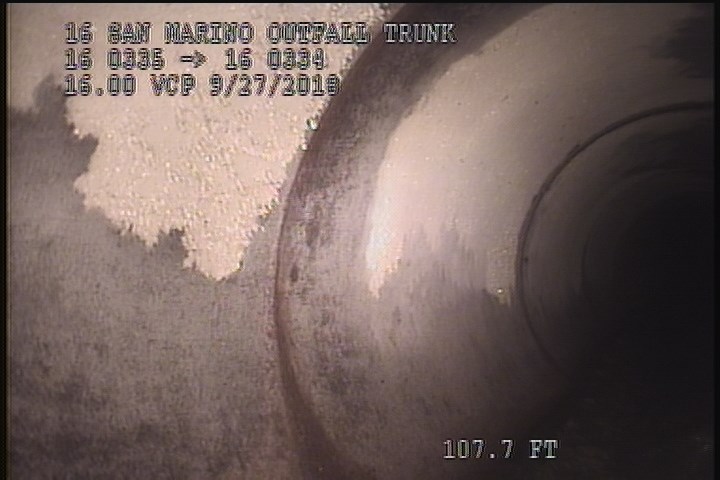

  • General Observation - WHITE MATERIAL ON PIPE

    107.7 ft. - General Observation - WHITE MATERIAL ON PIPE

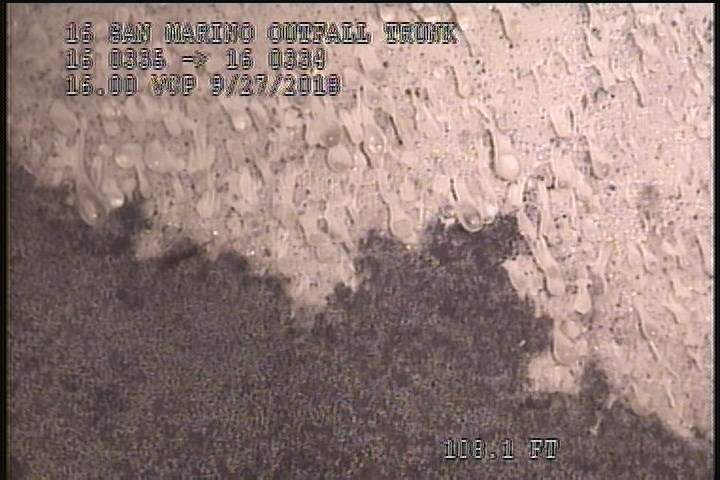

  • General Photograph - WHITE MATERIAL

    108.1 ft. - General Photograph - WHITE MATERIAL

All inspections of P13386Work order 0729304

Observations (17)

DistanceCodeObservation
0MWL—
124.2FCH
127.1FCSL
58FCSLIGHT
0MGOConn. @ Mh, 9 O' Clock. Active
119.5FLH
0MWM—
137.5FCSL
80.8FLSLIGHT
108.1MGPWHITE MATERIAL
107.7MGOWHITE MATERIAL ON PIPE
0AMH12:35AM
58FCHAIRLINE
101.1TBActive
99.6FLSLIGHT
8MGO16" VCP
211.1AMH1:00AM

Properties (4)

custom_field_three
LONG SILGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-09-27T00:16:44-07:00
